• Line-interactive Technology: The system combines offline technology with automatic voltage regulation (AVR), which stabilizes grid fluctuations. This reduces the device’s dependence on the battery and extends its life.
• Pure sine wave output: Provides clean, interference-free power, making it suitable for sensitive devices.

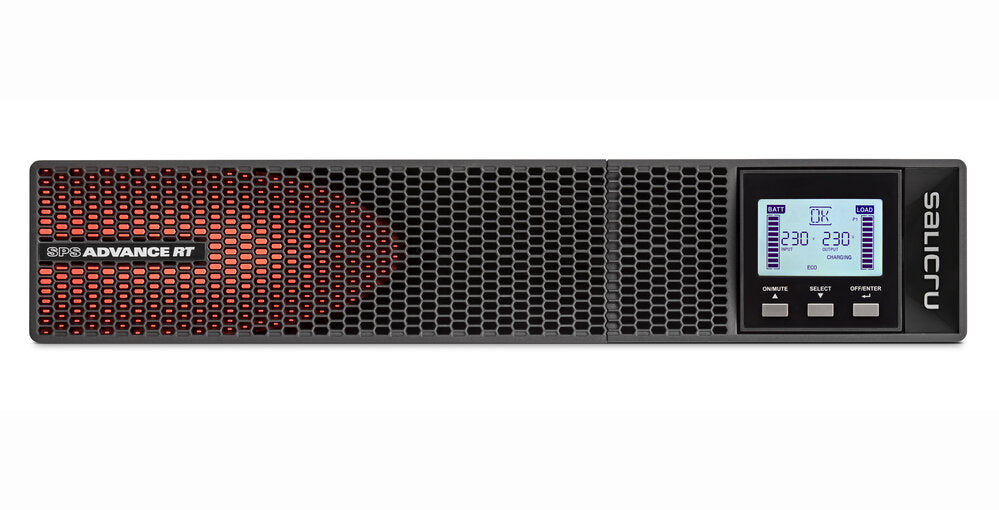

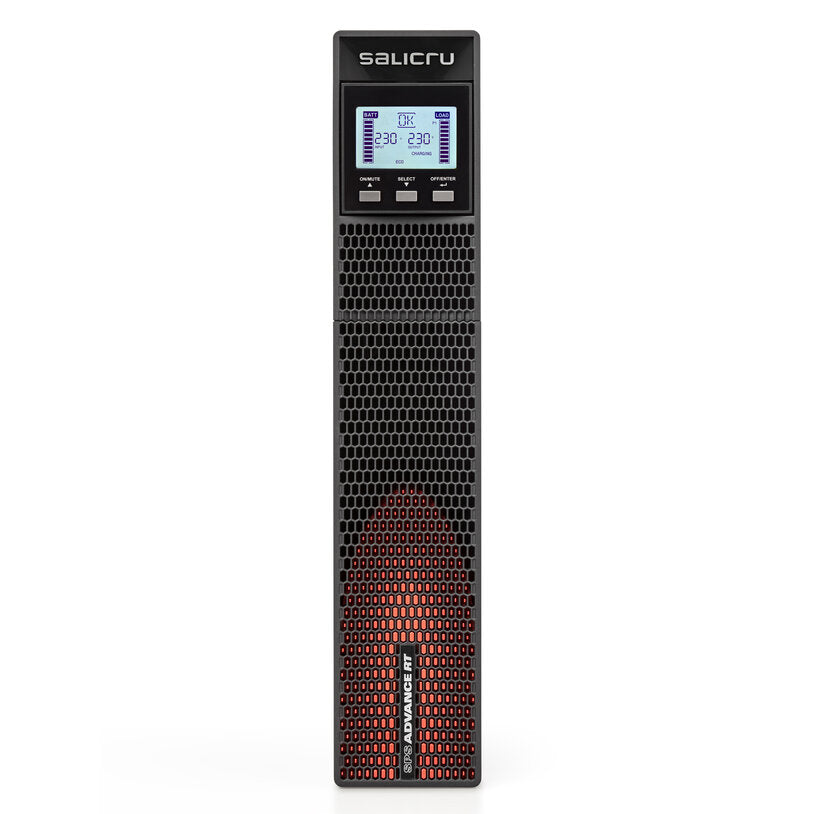

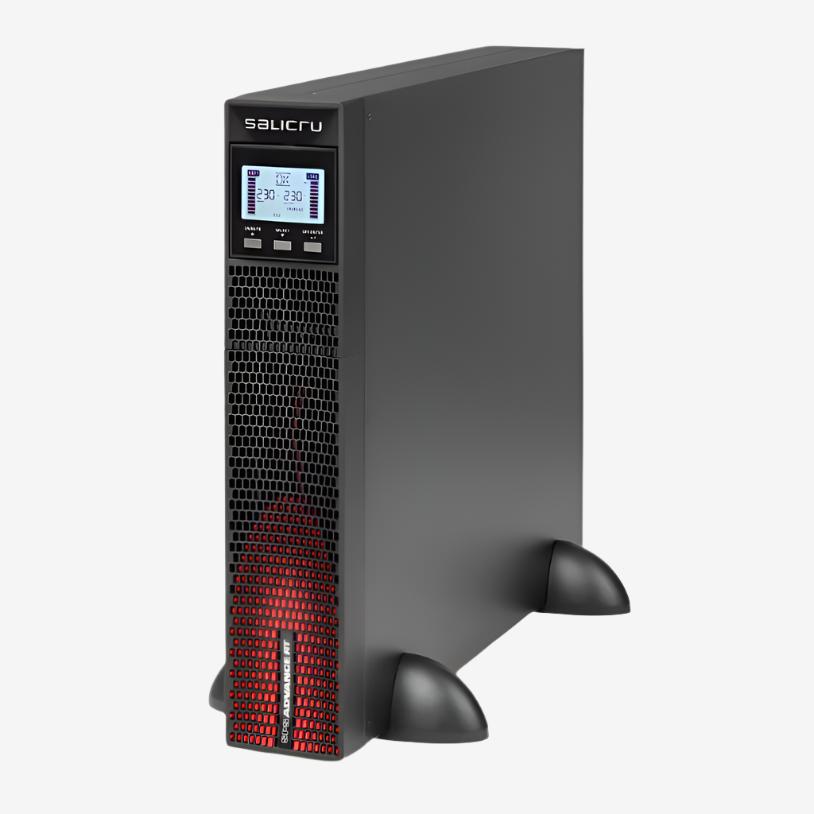

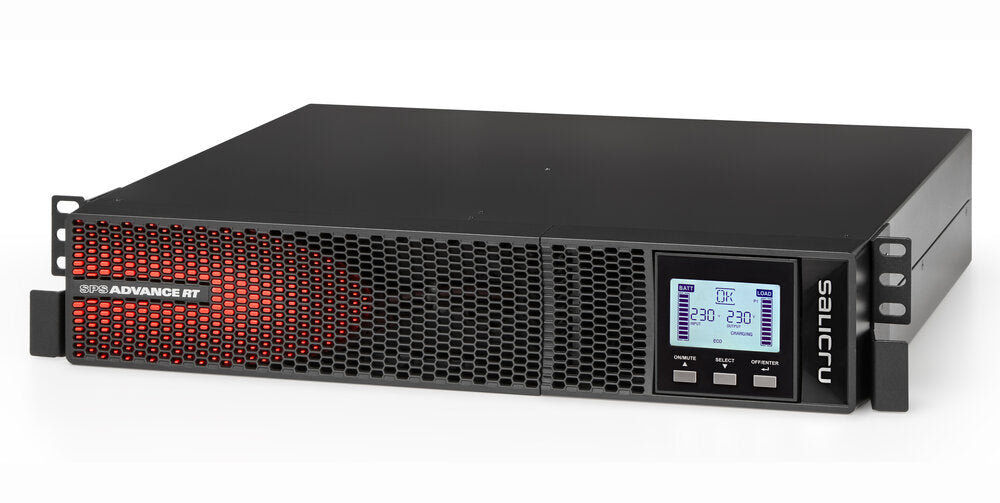

• Convertible format: The device can be easily configured for rack or tower installation, providing flexibility depending on your needs.
• Rotating display interface
Communication and monitoring:
• A variety of communication interfaces: Includes RS232 and USB-HID ports for easy configuration and control of the UPS. Compatible with Windows, Linux and Mac.
• Management software: You can download free software that allows you to manage and monitor the performance of the UPS.
• Additional battery modules: You can add additional batteries to extend the life of the UPS if you need longer backup power.
Display information:
• Configuration values and error codes
• Battery status and load level
• Input and output voltage, current and frequency
• Operating mode
Input specifications:
• Nominal voltage: 208 / 220 / 230 / 240 V
• Voltage range (at 100% load): 170 – 280 V
• Frequency: Automatically detects 50 / 60 Hz, with a tolerance of ±5 Hz
• Protection: Fuse for 800/1100 VA models; resettable thermal circuit breaker for 1500/2000/3000 VA models
Output characteristics:
• Power factor: 0.9
• Nominal voltage: 208 / 220 / 230 / 240 V
• Voltage accuracy (in battery mode): ±1.5%
• Pure sine wave
• Frequency: Matches input (50/60 Hz) with an accuracy of ±0.1 Hz
• Overload protection: Can handle up to 120% for 1 minute in battery mode and up to 150% for 10 seconds

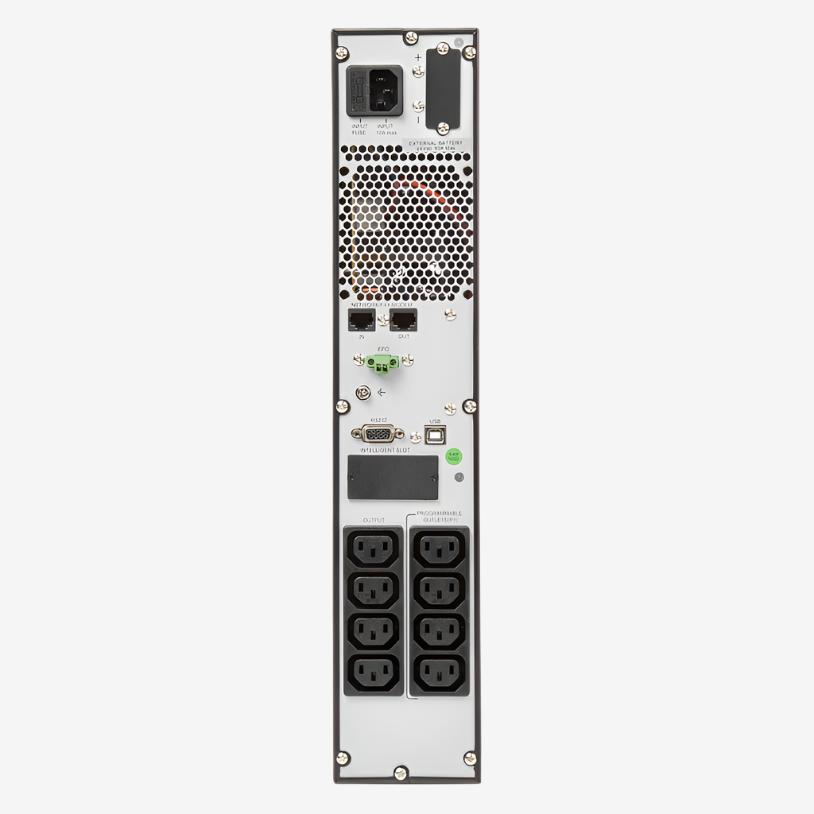

• Contact type: IEC, with a total of 8 contacts, of which 4 are programmable for critical and non-critical loads
Battery characteristics:
• Battery type: Sealed Pb-Ca AGM
• Charging time: 4 hours to 90%
• Battery test: Automatic test at start-up
Communication features:
• Ports: RS-232 and USB-HID for easy connectivity
• Smart Slot: For SNMP, floating contacts or MODBUS
• Monitoring Software: Compatible with Windows, Linux and Mac

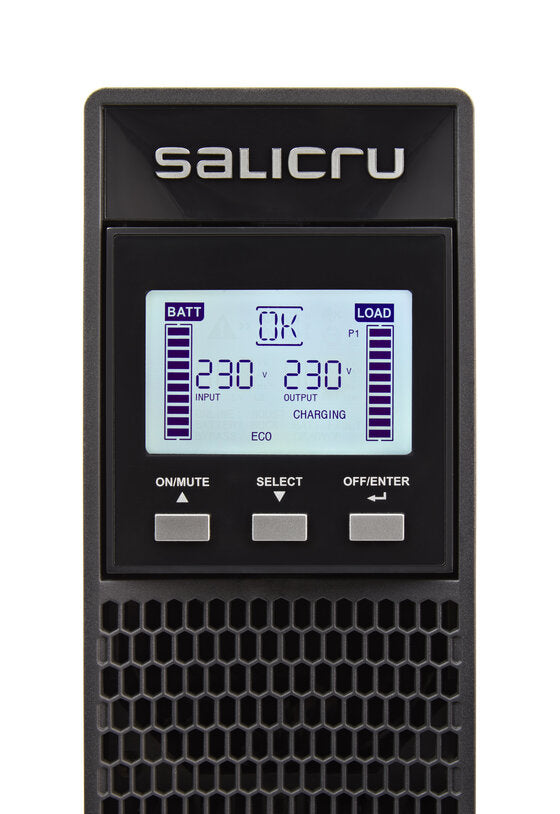

Display and Indicators:
• Display Type: LCD with buttons
• Information Displayed: Voltage, Power, Battery Status, Load Percentage, Operating Mode and Error Indications
Additional Features:
• Cold Start: Yes, allows starting from batteries
• Emergency Power Off (EPO): Yes
