• High Efficiency Mode: Turns off the DC bus battery when fully charged, achieving up to 97% efficiency in online mode, while extending battery life.
• Parallel Connection of Devices: Connect up to 6 modules for a total of 2.4 MW of power. N+M system, ensuring continuous power supply even if one device fails.
• Batt-Watch: Tests and periodically charges the battery to detect faults. Systems to prevent overheating while extending battery life.
• Dynamic Charging Mode: Excess power from the rectifier, once power to the devices is provided, can be used to charge the batteries faster. This allows the batteries to recover faster.

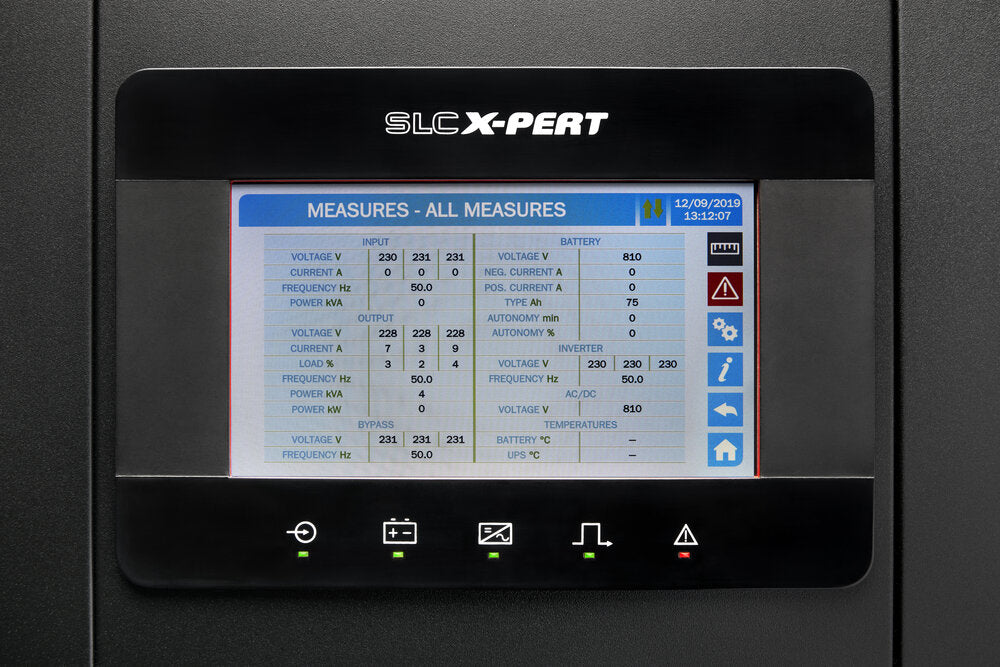

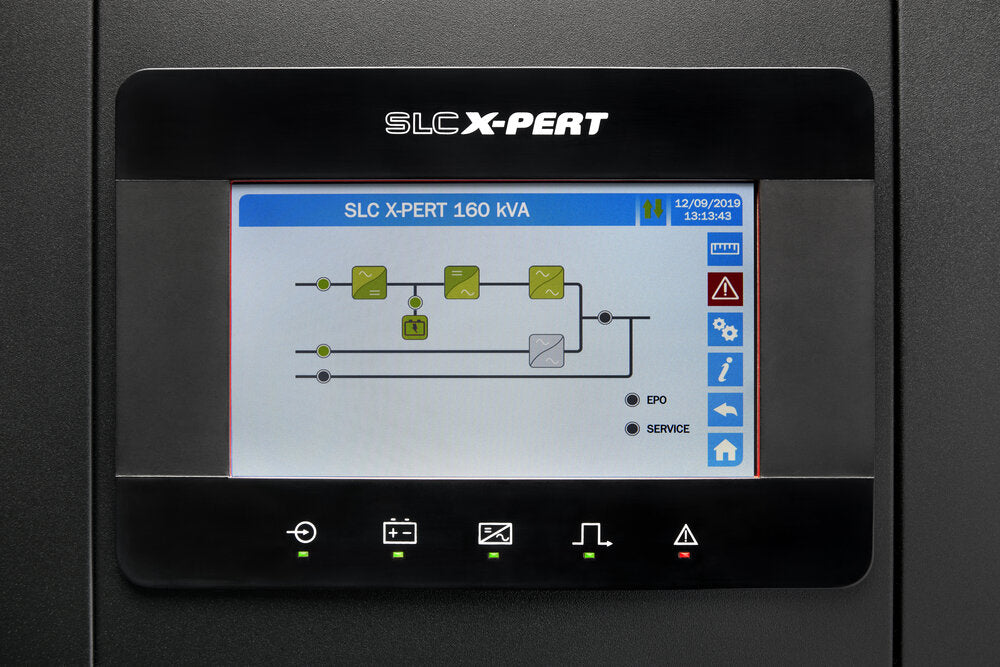

• 10" touch screen: User-friendly interface displaying device measurements, alarms and operating status in 8 languages.
• Diesel generator compatibility: Capabilities to reduce peak starting currents, allowing the use of smaller generators and lowering overall costs.
• Additional features: Parallel modules, battery cabinets, SNMP adapter, remote control options, etc.
• Technology: Online, double conversion with DSP control for stable performance.
Input:
• Voltage: 3 x 380 V / 3 x 400 V / 3 x 415 V (three-phase + neutral)
• Voltage range: +15% / -20%
• Frequency: 50/60 Hz (±10%)
• Power factor: >0.99
• Total harmonic distortion (THD): <3%
Output:
• Power factor: 1
• Voltage: 3 x 380 V / 3 x 400 V / 3 x 415 V (three-phase + neutral)
• THD:
• Efficiency: Up to 97% (online mode), ≥98% (Eco-mode)
• Overload: 125% for 10 min / 150% for 1 min
Static bypass:
• Instantaneous activation at overload above 150%
• Automatic recovery after the end of alarm
• Voltage and frequency range: ±10%
Battery:
• Type: Sealed lead-acid, maintenance-free
• Charging type: IU (DIN 41773)
Communication:
• Ports: RS-232, USB
• Display: 10-inch touch screen
General characteristics:
• Operating temperature: 0ºC to 40ºC
• Humidity: Up to 95% (non-condensing)
• Noise level:
• Altitude: Up to 2400 m
• Dimensions and weight are in the technical file of the corresponding power
