• Technology: Online double conversion, which provides power factor 1 for optimal efficiency. Can be paralleled up to 3 devices to increase security or power.
• Easy control: Equipped with an LCD display and keypad for easy operation. Includes a "smart" SNMP slot, as well as management software that provides process monitoring.

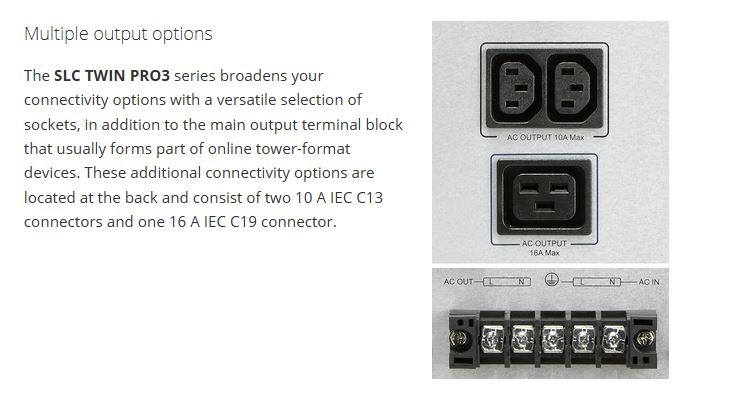

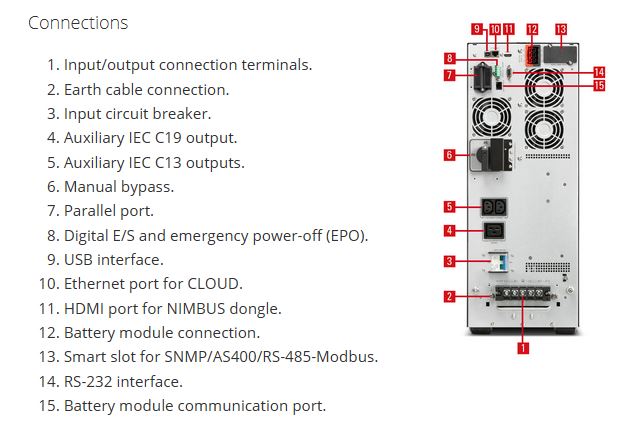

• Connectivity: Features a variety of output options, including two IEC C13 (10A) connectors, one IEC C19 (16A) connector, Ethernet port, optional Wi-Fi, HDMI port and additional connection terminals that allow for a variety of configurations.
• Smart battery charging: The innovative management system optimizes charging and extends battery life by using a "rest" function and triple charging with temperature compensation.
• Intelligent control: Can be set up as a frequency converter, reconfigured after installation and gives full control over battery voltage and charging. Built-in Ethernet enables integration into IoT environments.
• Protection and Monitoring: The device features protections such as automatic overvoltage shutdown, blocked fan detection, overheating sensors, and overload alarms. It can connect to the cloud and Salicru’s NIMBUS app for remote monitoring and control.
• Extended Backup Power: Backup time can be increased with additional battery cabinets.
Input:
Nominal voltage: 220/230/240 V
Voltage range: 110 ÷ 276 V
Frequency: 50/60 Hz with automatic detection
Power factor: ≥0.99 for high efficiency
Output:
Power factor: 1 (optimal output efficiency)
Voltage: 220/230/240 V
Voltage accuracy (in battery mode): ±1%
Efficiency in online mode: 95%
Efficiency in eco mode: 98%
Overload protection: Different levels for battery, bypass and online modes
Battery:
Type: Sealed, Pb-Ca AGM batteries
Recharge time: 3 hours to 90%
Supports up to 6 external battery modules (EBM)
Charger:
Adjustable charging current: 0 ÷ 4 A, up to 12 A for B1 devices
Communication:
Ports: USB-HID, RS-232, RJ-45, HDMI
Smart Slot: For SNMP/AS400/Modbus
Monitoring Software: Compatible with Windows, Linux, Mac, iOS, Android and Web Portal
Other Features:
Cold Start: Battery Start
Emergency Power Off (EPO)
Eco Mode and Frequency Converter Function
General Features:
Operating Temperature: 0º C ÷ +50º C
Humidity: Up to 95% non-condensing
Maximum Altitude: 2400 meters
Noise Level:
Acoustic Noise:
Certificates:
Safety: EN IEC 62040-1
Environmental and Quality Standards: ISO 9001, ISO 14001, ISO 45001
