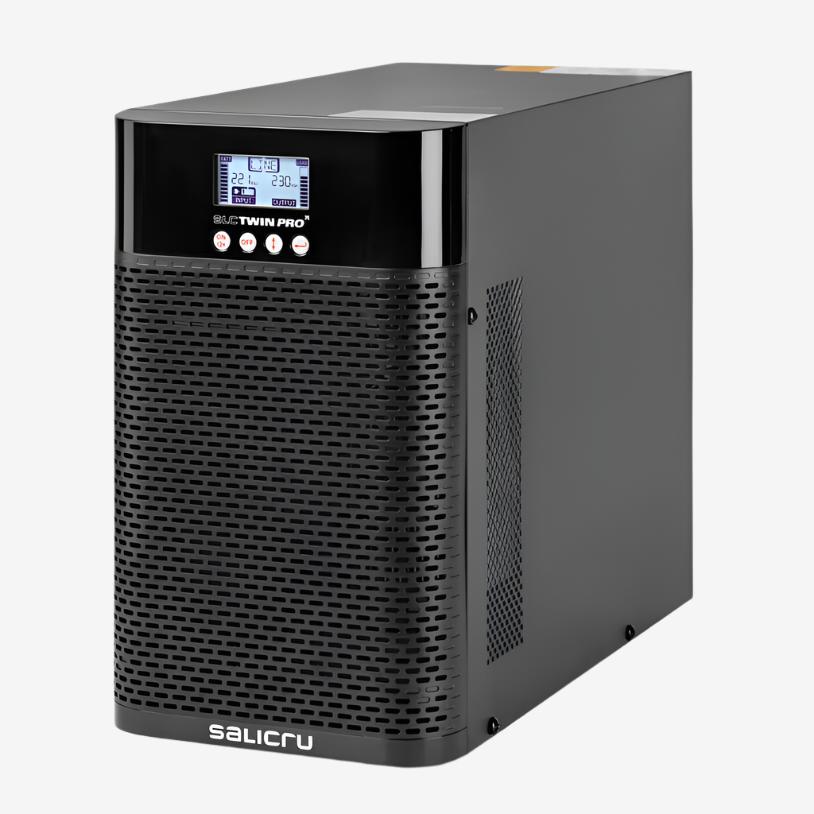

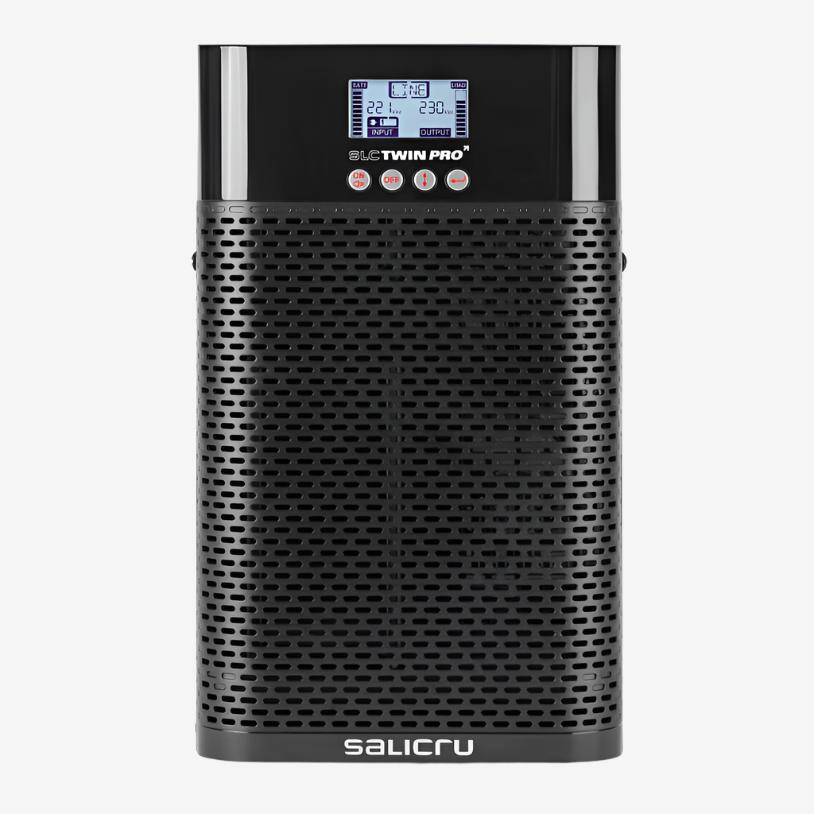

Salicru, SLC-3000-TWIN PRO2, On-Line, UPS - 3000VA, Double-Conversion

Roll over image to zoom in Click on image to zoom

Salicru, SLC-3000-TWIN PRO2, On-Line, UPS - 3000VA, Double-Conversion

SKU: 2010022-Schuko

Connection: Schuko

Variant

Price:

0.00 лв

Tax included

Stock:

In stock

Quantity:

Pickup available at Office Eurogroup-33

Usually ready in 24 hours

Тhe price on site may be different

The Salicru SLC TWIN PRO2 series UPS offers advanced protection for critical loads using on-line double-conversion technology in a compact tower design. With a high power factor (PF=0.9), it ensures compatibility with a wide range of devices.

Key features include an LCD display with keypad, USB HID interface, SNMP/relay support, and free monitoring software for Windows, Linux, and Mac platforms. Additional options include Eco-mode, EPO, frequency conversion, and battery testing for enhanced versatility. Extended backup is possible with extra chargers and battery modules.

Type: On-Line UPS, double-conversion
Capacity: 3000VA
Power factor: 0.9
Design: Compact tower
Display & Interface: LCD display with keypad, USB HID
Communication: SNMP / relay, monitoring software included
Additional options: Eco-mode, EPO, frequency conversion, battery testing
Expandability: Supports extra chargers and battery modules
Applications: Critical loads in demanding environments

Manufacturer: Salicru

Model: SLC-3000-TWIN PRO2

Input - Output Voltage: 220 / 230 / 240 V

Voltage range: 176 ÷ 300 V

Number of slots: 4

Communication ports: USB HID

Security: Restart switch

Autonomy time: Depending on the load, please contact a Eurogroup-33 employee for more information.

Dimensions (LxWxH): 399x190x327 mm

Weight: 22.7 kg

Origin: Spain

Warranty: 24 months

Technology: On-line double-conversion

Format: Tower

Capacity (VA/W): 3000 / 2700

Other:

Cold start: Yes

Battery:
Battery type - Pb-Ca sealed, AGM, maintenance-free
Recharge time from 4 hours to 90%
Automatic battery start at every start.
Charge type - I/U (constant current/constant voltage)

Standards:
EN-IEC 62040-1, EN IEC 62040-2, VFI-SS-11 (EN-62040-3),
ISO 9001, ISO 14001, ISO 45001

• Performance: This UPS has a power factor of 0.9 and is a tower form factor.
• Control and Monitoring: It features an easy-to-use LCD display and buttons for convenient operation.

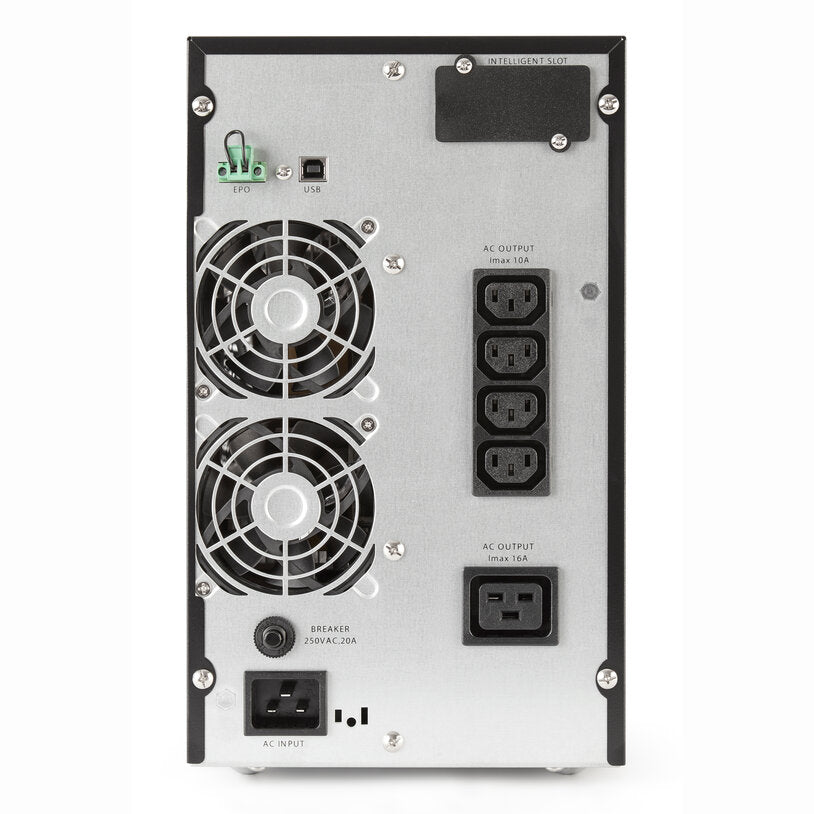

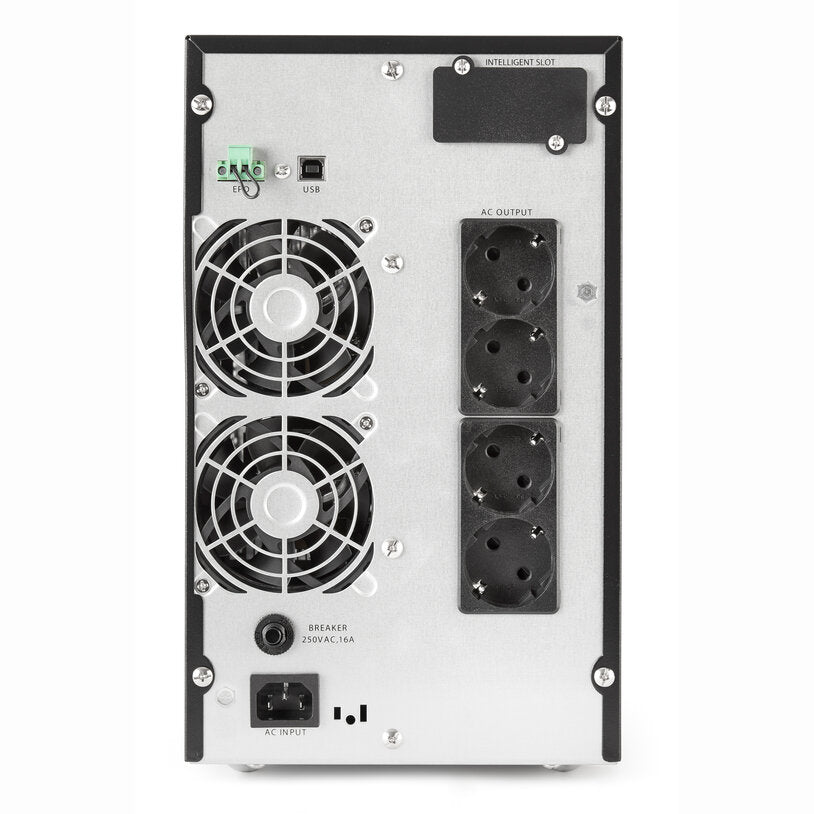

• Connectivity: The UPS comes with Schuko or IEC outlet sockets for connection. It also features an Emergency Power Off (EPO) function and intelligent SNMP slots.
• Eco Mode Operation: This feature improves energy efficiency by allowing the UPS to support the load only during power fluctuations.
• Advanced Backup Options: For applications requiring longer backup time, customers can add additional battery modules to increase the backup time.
• Display Information: The control panel provides real-time information on battery levels, load, operating status, input and output voltage and frequency.

Input specifications:

• Nominal voltage: 208 / 220 / 230 / 240 V
• Voltage range (at 100% load): 170 – 280 V
• Frequency: Automatically detects 50 / 60 Hz, with a tolerance of ±5 Hz
• Protection: Fuse for 800/1100 VA models; resettable thermal circuit breaker for 1500/2000/3000 VA models

Output characteristics:

• Power factor: 0.9
• Nominal voltage: 208 / 220 / 230 / 240 V
• Voltage accuracy (in battery mode): ±1.5%
• Pure sine wave
• Frequency: Matches input (50/60 Hz) with an accuracy of ±0.1 Hz
• Overload protection: Can handle up to 120% for 1 minute in battery mode and up to 150% for 10 seconds
• Contact type: IEC, with a total of 8 contacts, of which 4 are programmable for critical and non-critical loads

Battery characteristics:

• Battery type: Sealed Pb-Ca AGM
• Charging time: 4 hours to 90%
• Battery test: Automatic test at start-up

Communication features:

• Ports: RS-232 and USB-HID for easy connectivity
• Smart Slot: For SNMP, floating contacts or MODBUS
• Monitoring Software: Compatible with Windows, Linux and Mac

Display and Indicators:

• Display Type: LCD with buttons
• Information Displayed: Voltage, Power, Battery Status, Load Percentage, Operating Mode and Error Indications

Additional Features:

• Cold Start: Yes, allows starting from batteries
• Emergency Power Off (EPO): Yes
