• Advanced Thermal Management: Models 1500 VA and above feature two variable speed fans that maintain optimal temperatures, improving device life and performance.
• IoT Integration: With a built-in Ethernet port and optional Wi-Fi, these devices can be managed via the NIMBUS app and cloud-based web portal for monitoring, optimization, and fault detection.
• Multifunctional Rotating Display: With dot-matrix technology, the display alternates between three screens of information and shows data and status.
• Battery Storage: The innovative system ensures that the battery is only charged when needed, extending its life. The RJ45 communication port monitors the status of additional battery modules.

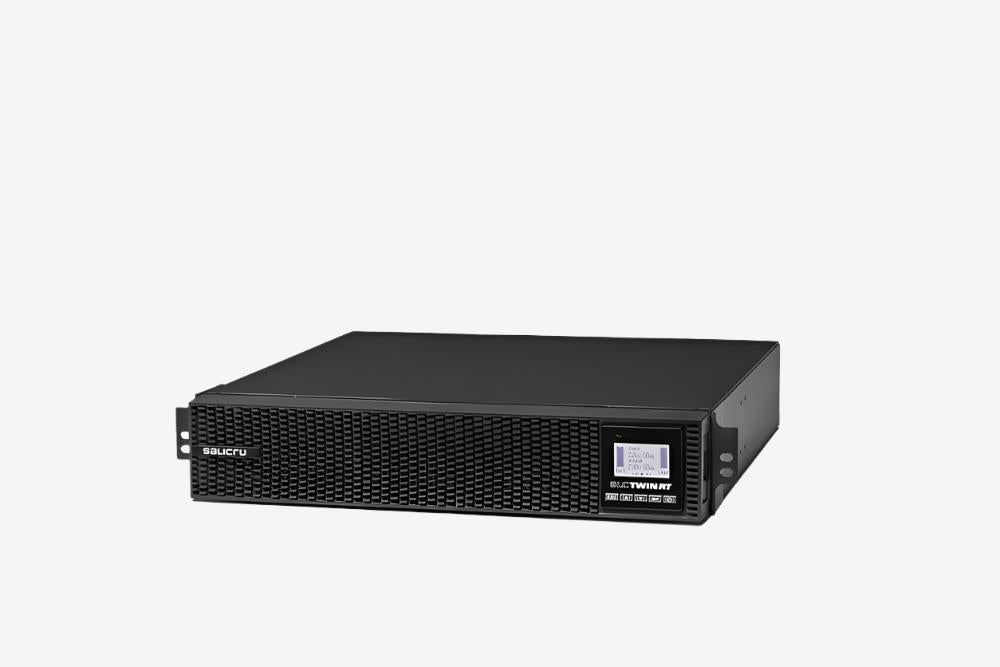

• Compact: The 2U x 19” format, with a depth of only 600 mm, offers high power while fitting into standard racks.

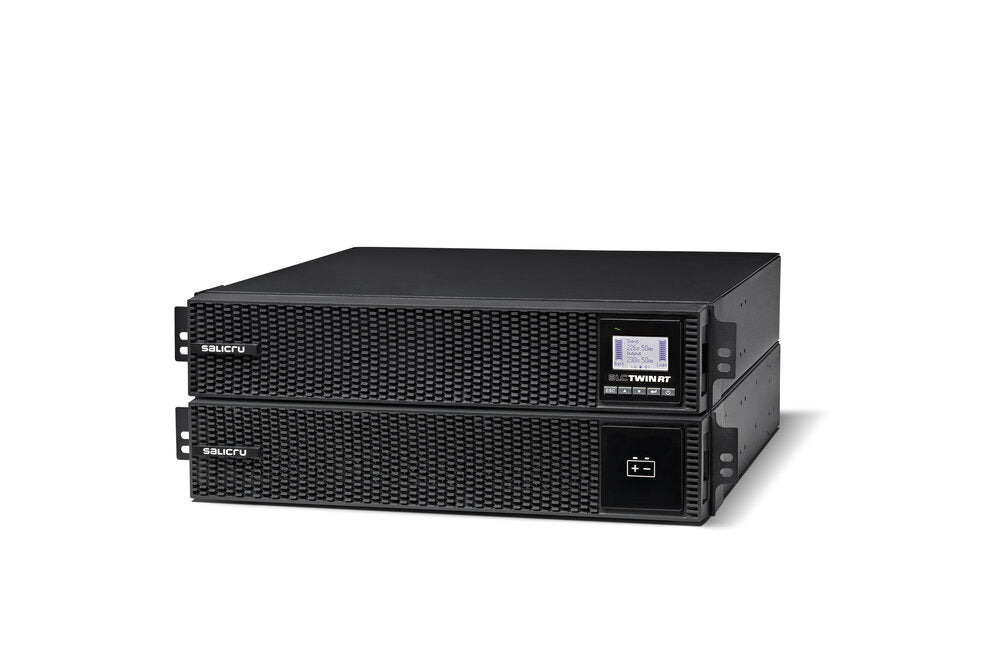

• Optional extended backup power: Additional 2U battery modules can extend backup power, with intelligent management via Anderson connectors and RJ45 cables.

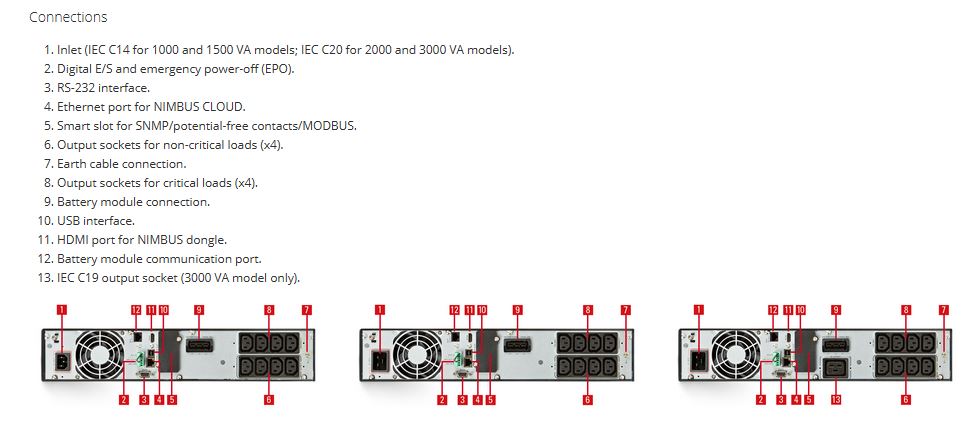

Connections:
• Input: IEC C14 (1000/1500 VA), IEC C20 (2000/3000 VA)
• Digital I/O, EPO
• RS-232 and USB interfaces
• Ethernet port for cloud integration
• Smart slot for SNMP/floating contacts/MODBUS
• Outputs: 4 for critical loads, 4 for non-critical loads (IEC C19 for 3000 VA model)
• HDMI port for NIMBUS adapter.
Input:
• Nominal voltage: 200/208/220/230/240 V
• Voltage range: 110 ÷ 300 V
• Nominal frequency: 50 / 60 Hz (automatic detection)
• Frequency range: 50 ±10 Hz / 60 ±10 Hz
• Total harmonic distortion of input current (THDi): < 5%
Output:
• Power factor: 1
• Nominal voltage: 200/208/220/230/240 V
• Voltage accuracy (in battery mode): ±1%
• Total harmonic distortion of output current (THDv): < 1% (linear load) / < 5% (non-linear load)
• Synchronous frequency: 50 ±5 Hz / 60 ±6 Hz
• Online efficiency: ≥ 89% - 93%
• Efficiency in eco mode: ≥ 96% - 97%
Permissible overloads:
• In battery mode: 105 - 125% for 2 min / 125 - 150% for 10 sec / >150% for 500 ms
• In bypass mode: 105 - 125% for 10 min / 125 - 150% for 5 min / >150% for 500 ms
• In operation mode: 105 - 125% for 5 min / 125 - 150% for 30 sec / >150% for 500 ms
Programmable contacts: Yes (4 critical / 4 non-critical)
Battery:
• Battery type: Pb-Ca sealed, AGM
• Charging type: Intelligent charging with 3 modes
• Charging time: 3 hours to 90%
• Maximum number of additional batteries modules: 4
Charger:
• Voltage temperature compensation: Yes
• Charging current: 1.5 A (8 A for B1 devices)
Communication:
• Ports: USB-HID / RS-232 / RJ-45 / HDMI (for Wi-Fi adapter)
• Smart slot: SNMP / AS400 / MODBUS
• Monitoring software: Compatible with Windows, Linux and Mac; app available for iOS and Android; access to web portal
Other features:
• Battery start: Yes (cold start)
• Emergency stop (EPO): Yes
Operating modes:
• Frequency converter (CVCF): Yes (works with or without batteries)
General data:
• Operating temperature: 0º C to +50º C (derating above 40°C)
• Relative humidity: up to 95%, non-condensing
• Maximum operating altitude: 2400 m (derating up to 5000 m)
• Acoustic noise at 1 meter: < 45 dB to < 50 dB (full load) / < 36 dB to < 46 dB (70% load)
