• Reliable Protection: Online double conversion, which ensures uninterrupted and stable power supply.
• High Efficiency: With a power factor of 1.0, the device delivers full rated power in kW, which significantly reduces overall costs.

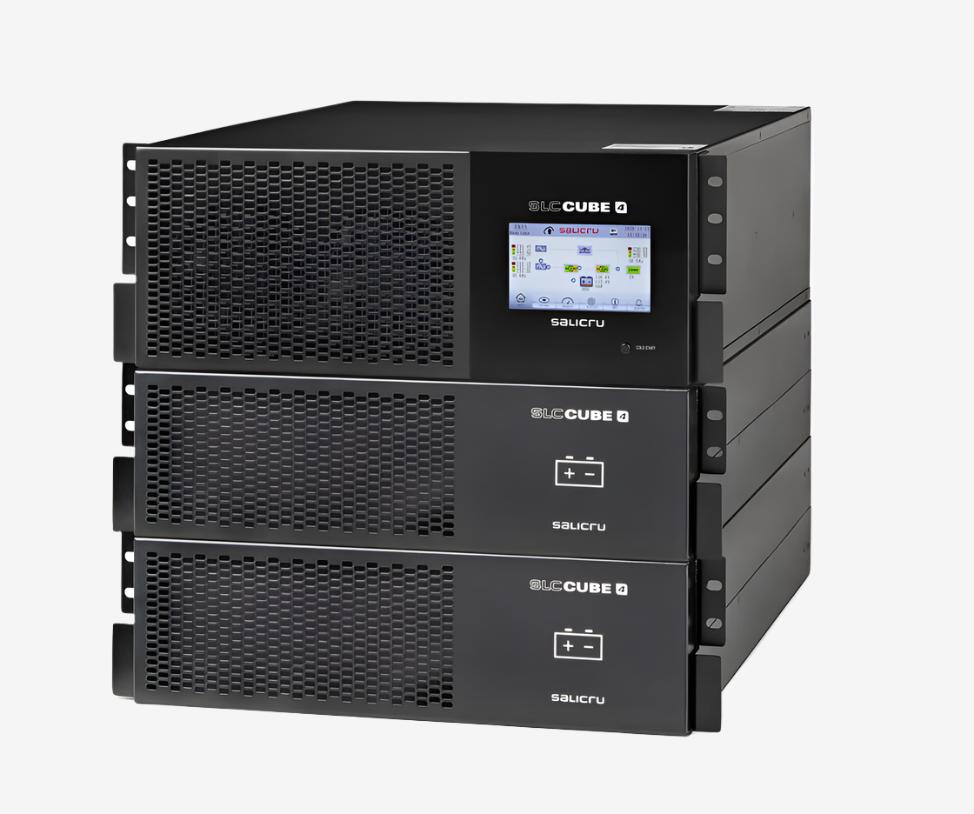

• Connectivity: Ability to parallel connect up to 3 devices to increase power or improve security.

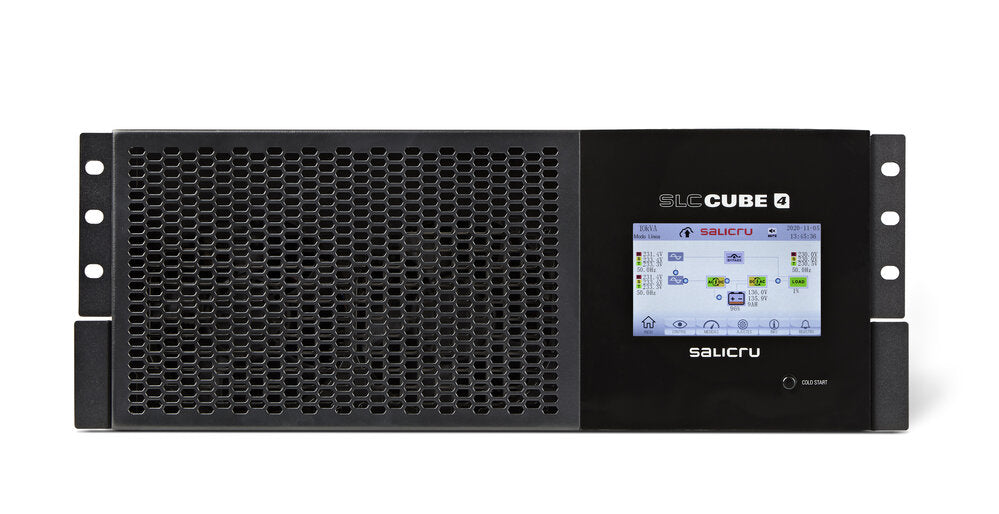

• User-friendly interface: 5-inch touch screen with multilingual support for easy system management and monitoring.
• Energy Efficiency: Three-stage switching technology with DSP control provides over 96% efficiency even at lower loads (25%), which reduces power consumption and cooling costs.
• Eco-mode: Further reduces operating costs (OpEx) through an energy-saving mode, without compromising on protection or performance.
• Remote Monitoring and Support: Optional integration with Nimbus-cloud for continuous monitoring and advanced support capabilities, ensuring rapid response to problems.

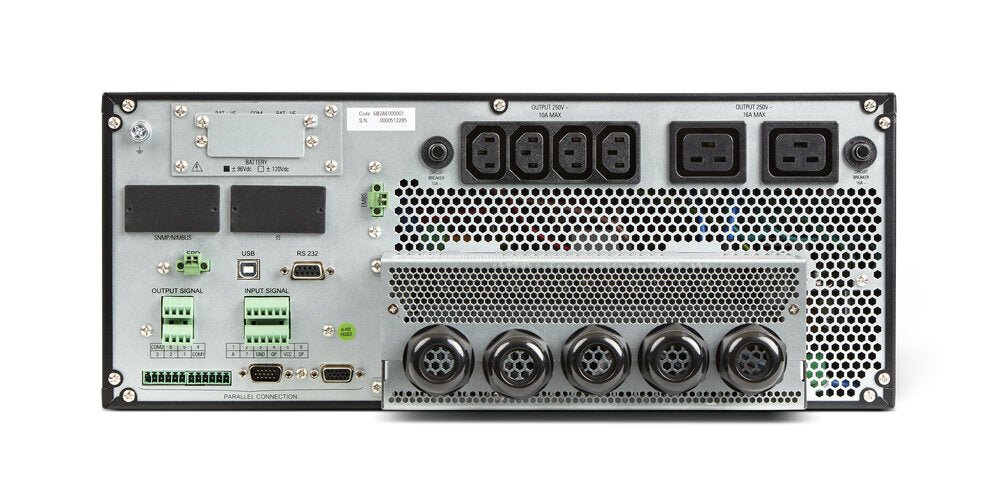

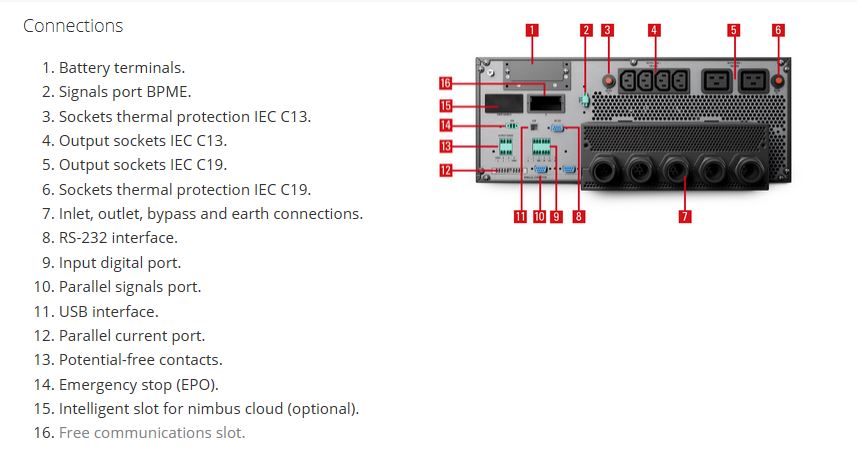

Connections and interfaces:
• External battery terminals
• BPME signal port for advanced communication capabilities
• Thermal protections on sockets (IEC C13 and IEC C19) for safe operation
• Multiple input/output ports (IEC C13 and IEC C19) for easy device connection
• Input, output, bypass and grounding for simplified installation
• RS-232 and USB interfaces for easy integration with your systems
• Digital input port and parallel signals for additional functionality
• Free contacts for external alarms or controls
• EPO (Emergency Power Off) for immediate shutdown in critical situations
• Free communication slot for future expansion or custom connections
• Technology: Online, double conversion with DSP control for stable and reliable power supply.
• Input voltage: 3 × 380 / 3 × 400 / 3 × 415 V (three-phase + neutral).
• Voltage range: 110 ÷ 300V (neutral).
• Frequency: 50 / 60 Hz.
• Efficiency: Up to 98% in Eco-mode, over 95% in online mode.
• Overload capacity: Up to 150% in 1 second.
• Battery type: Lead-acid, gel, Ni-Cd, Li-Ion.
• Communication: RS232, USB, 6 relays, SNMP, NIMBUS.
• Noise level:
• Operating temperature: 0°C to +40°C.
• Maximum altitude: 2400 meters.
