• Technology: Online double conversion for maximum security and stable pure sine wave power supply.
• Output power: Power factor PF=0.9, ensuring efficient operation.

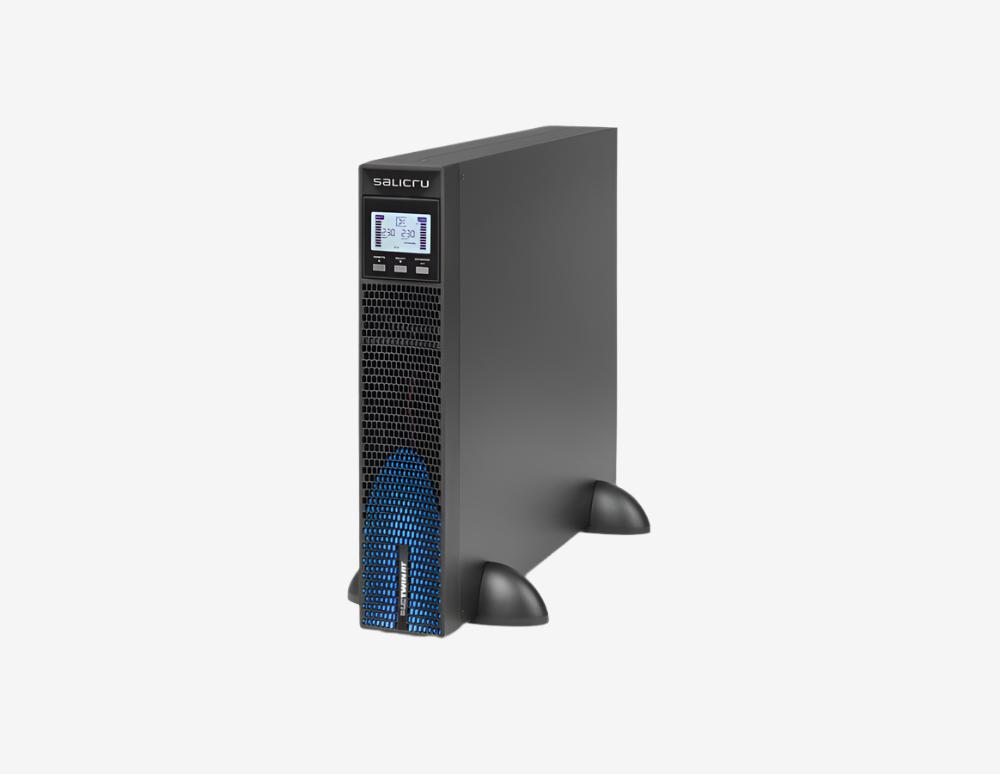

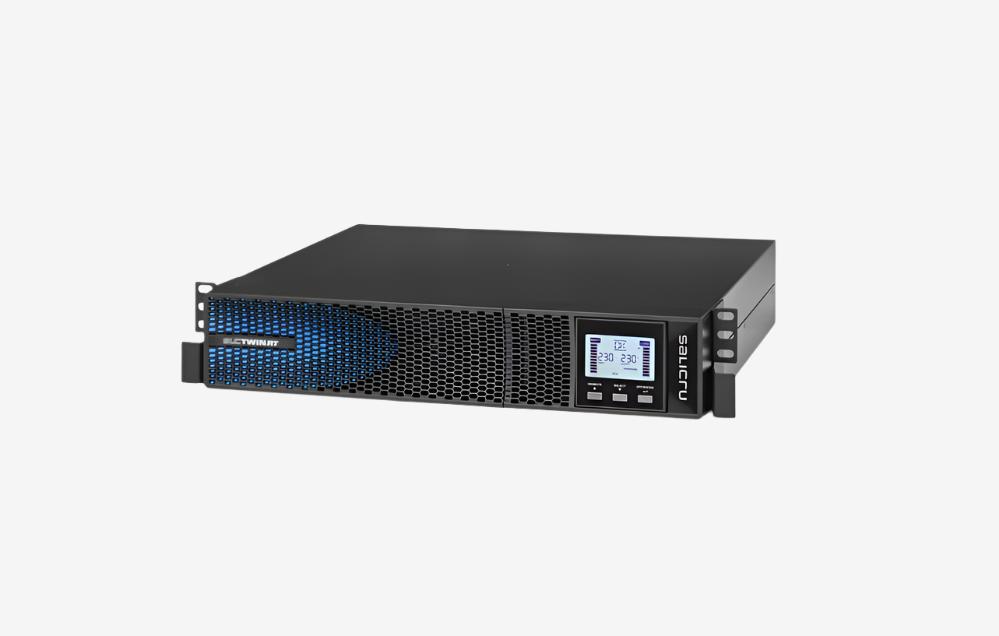

• Form factor: Flexible design that can be used as a tower or rack mounted, with a rotating control panel for convenience.
Communication:
• Interfaces: RS232 and USB-HID for easy connection.
• Smart slot for SNMP and relays.
• Device management software
• Compatible with Windows, Linux, Unix and Mac operating systems.
Eco-mode: SLC Greenenergy Solutions function for higher energy efficiency.
Battery:
• Lithium-ion (Li-Ion) battery with 2-3 times longer life, faster charging and more cycles, with less maintenance compared to traditional VRLA batteries.
Connectivity:

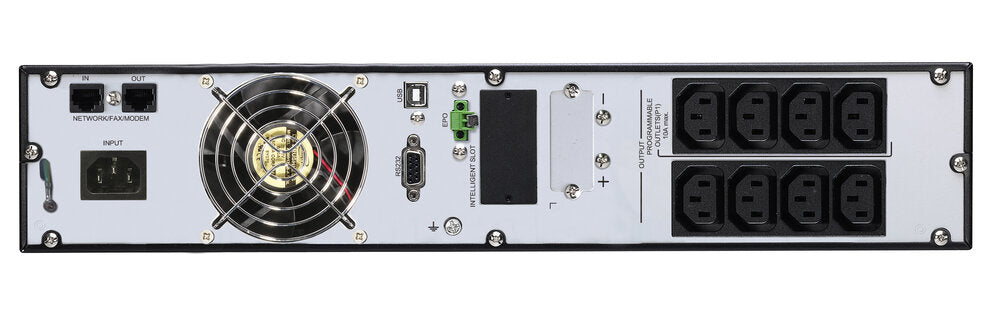

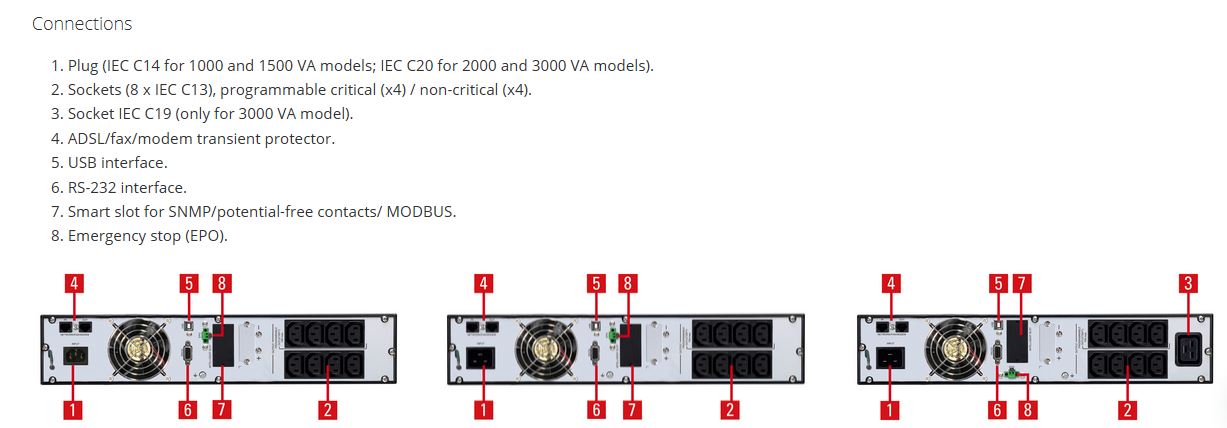

• IEC outputs and inputs for critical and non-critical loads.
• ADSL/fax/modem protection.
• Supports emergency power off (EPO) for emergency situations.

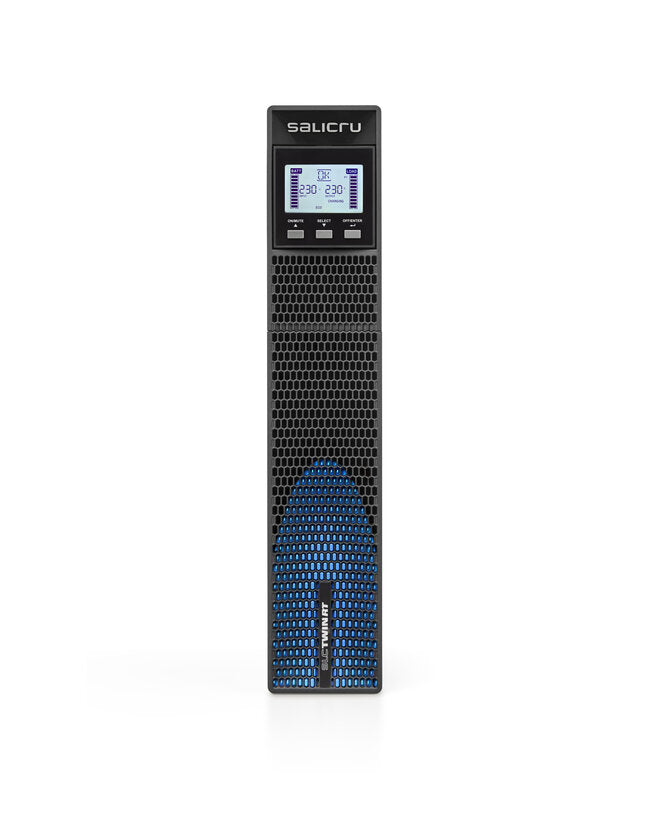

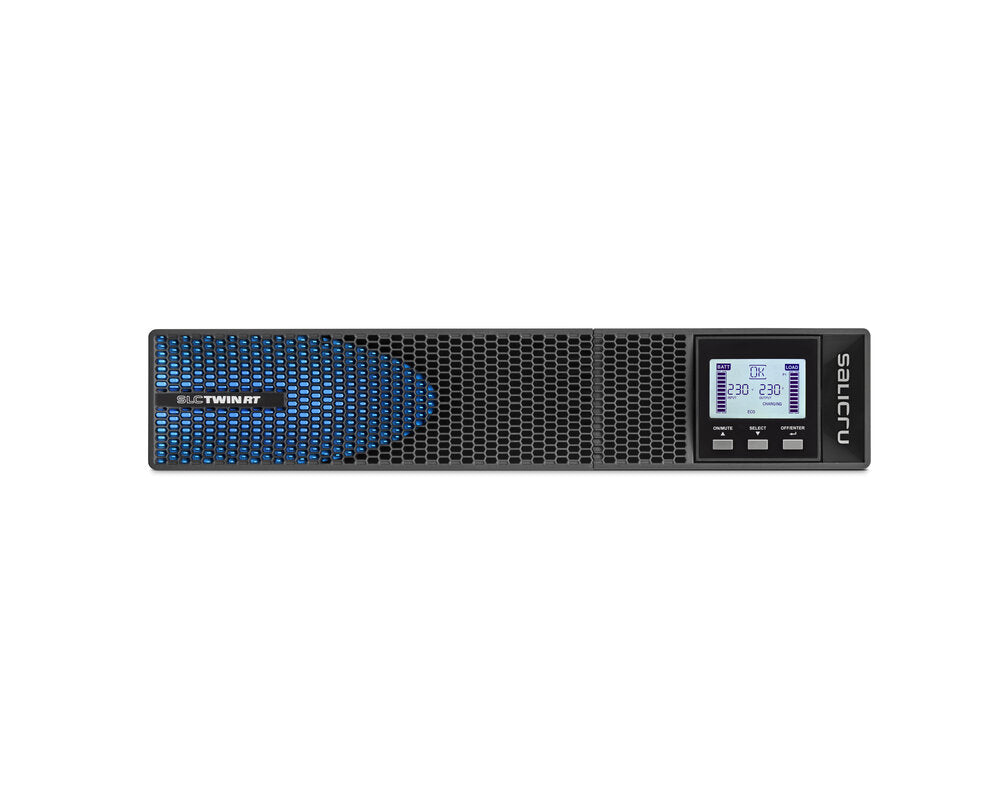

Display: Backlit LCD display for clear status and settings information.
Input:
• Nominal voltage: 230 V.
• Frequency: 50/60 Hz (automatic detection).
• Permissible frequency fluctuations: ±10 Hz.
• Harmonic distortion of current (THDi): ≤5%.
Output:
• Power factor: 0.9.
• Shape: Pure sine wave.
• Nominal voltage: 200/208/220/230/240 V.
• Voltage accuracy in battery mode: ±1%.
• Harmonic distortion of voltage (THDv):
• Efficiency in online mode: ≥90–91%.
• Eco-mode: ≥96–97%.
• Load resistance: Up to 130% for 5 minutes, 140% for 30 seconds, 150% for 1.5 seconds.
Bypass:
• Nominal voltage: 230 V.
• Frequency range: 50/60 Hz ±3 Hz.
Battery:
• Type: LiFePO4.
• Charging time: 3 hours to 100%.
Communication:
• Ports: USB-HID, RS-232.
• Smart slot: For SNMP, voltage-free contacts and MODBUS.
• Monitoring software: Compatible with Windows, Linux, Mac.
Additional features:
• Cold start: Yes (battery start).
• Emergency power off (EPO): Yes.
• ADSL/Fax/Modem protection: Yes.
Operating modes:
• Frequency converter mode (CVCF): Yes.
General characteristics:
• Operating temperature: 0°C to 40°C.
• Humidity: Up to 95%, non-condensing.
• Maximum altitude: 2400 m (up to 5000 m with reduced power).
• Noise level:
