Technology:
• Online double conversion with output power factor (PF)=1.

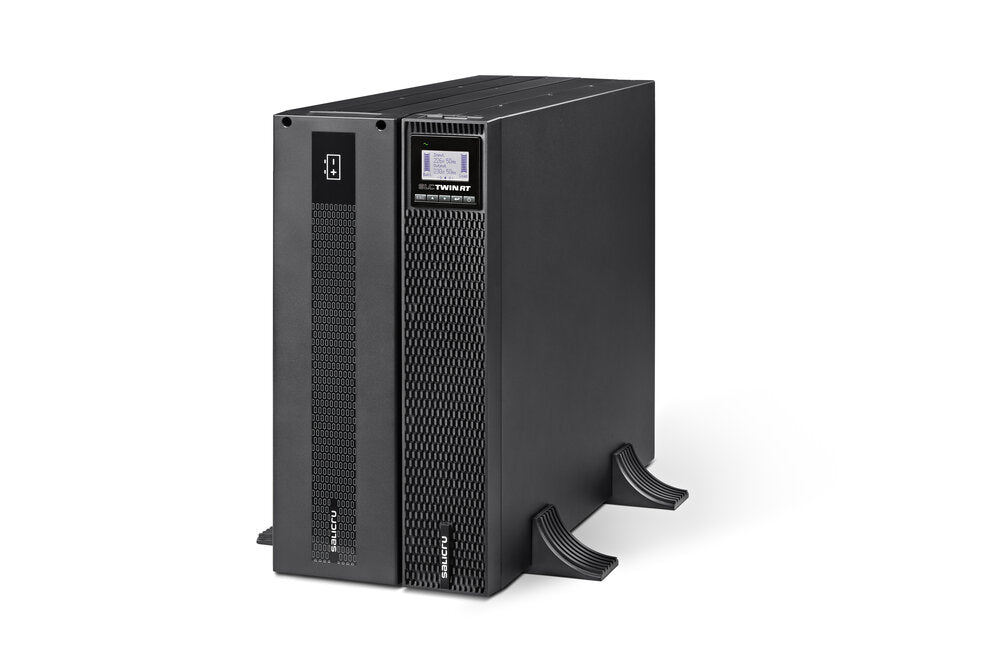

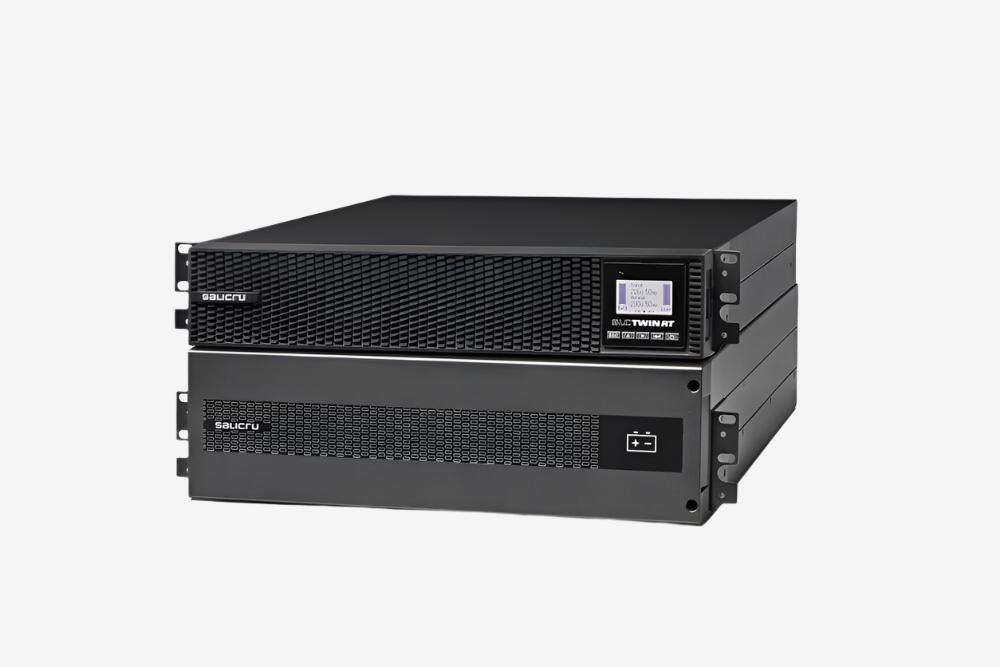

• Can be used in both vertical (tower) and horizontal (rack) formats, with the ability to connect up to 3 devices in parallel.
Control and monitoring:
• Rotating control panel for convenient management.
• SNMP and relay slot.
• Built-in Ethernet interface with Wi-Fi option for IoT integration.
• NIMBUS app and website for remote monitoring, alarms and battery tests.
Hardware features:
• Overvoltage protection (OVCD), overtemperature sensor, overload alarm.
• Compact dimensions: 600 mm deep, 2U high for UPS and 3U for batteries.
Output options:
• Ability to connect multiple loads, including IEC C13 and C19 outlets, as well as a rack strip with additional outlets.
• Securing clips for safety of electrical connections.
Thermal Management:
• Advanced temperature control system with two variable speed fans for optimal operating conditions and longer component life.
Manual Bypass:
• External manual bypass module, allowing battery and device management without power interruption.
• Programmable outputs, with the ability to mount in various formats.
Backup power extension options:

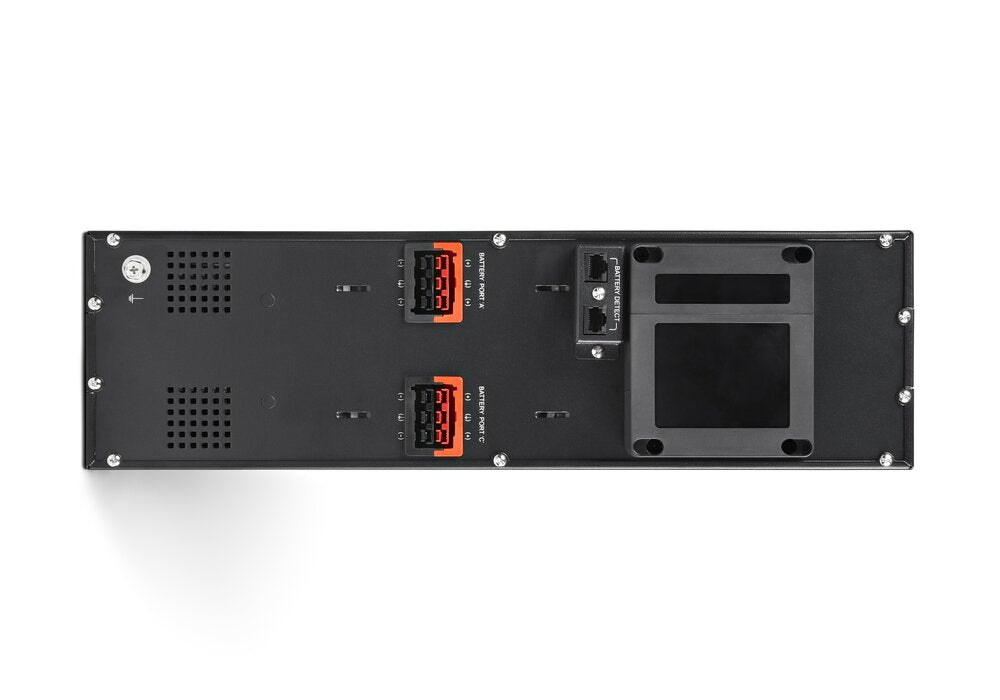

• Possibility to add additional battery modules in 3U format, connected via Anderson connectors and RJ45 cables.

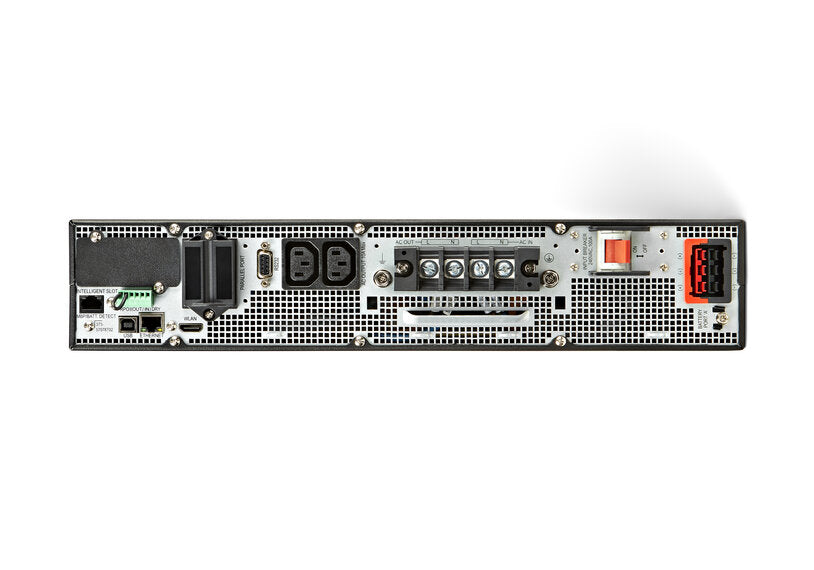

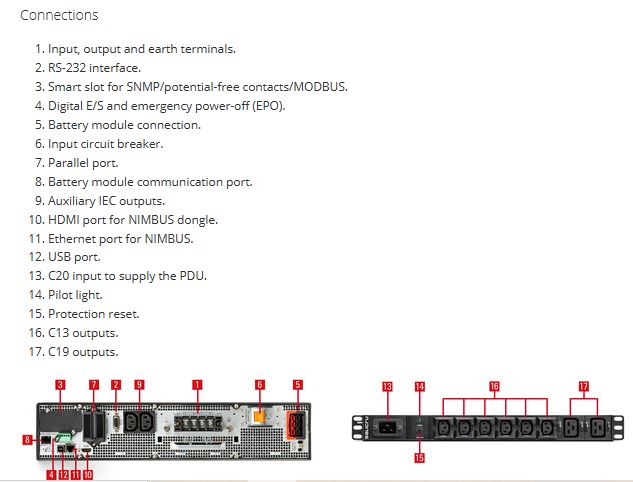

Communication ports:
• Input, output and ground terminals.
• RS-232, USB and Ethernet ports.
• Slot for SNMP/MODBUS, digital inputs/outputs, emergency power off (EPO) and communication with battery modules.
Input specifications:
• Voltage: 220/230/240 V.
• Voltage range: 110 to 276 V.
• Frequency: 50/60 Hz with automatic detection.
• Power factor: ≥0.99 for efficient operation.
• Total harmonic distortion (THDi): Less than 3% for linear load, less than 5% for non-linear load.
Output specifications:
• Power factor: 1, which means full efficiency.
• Voltage: 220/230/240 V.
• Voltage accuracy (when operating on battery): ±1%.
• Total harmonic distortion (THDv): Less than 1% for linear load, less than 5% for non-linear load.
• Efficiency: Up to 95% for online operation and 98% in eco-mode.
Overload Capacity:
• Battery Mode: 105-125% for 1 minute, 125-150% for 30 seconds, over 150% for 500 milliseconds.
• Bypass Mode: 105-125% for 30 seconds, over 150% for 5 minutes, over 150% for 500 milliseconds.
Battery and Charger:
• Battery Type: Sealed Pb-Ca AGM Battery.
• Recharge Time: 3 hours to 90%.
• Maximum Number of Battery Modules (EBMs): Up to 6.
• Charging Current: Adjustable from 0 to 4 A (up to 12 A for B1 models).
Communication:
• Ports: USB-HID, RS-232, RJ-45, HDMI for Wi-Fi adapter.
• Smart Slot: For SNMP, floating contacts, MODBUS.
Other features:
• Operating temperature: From 0ºC to +50ºC.
• Maximum altitude: 2,400 meters (up to 5,000 m with reduced power).
• Noise level: Below 55 dB at full load.
