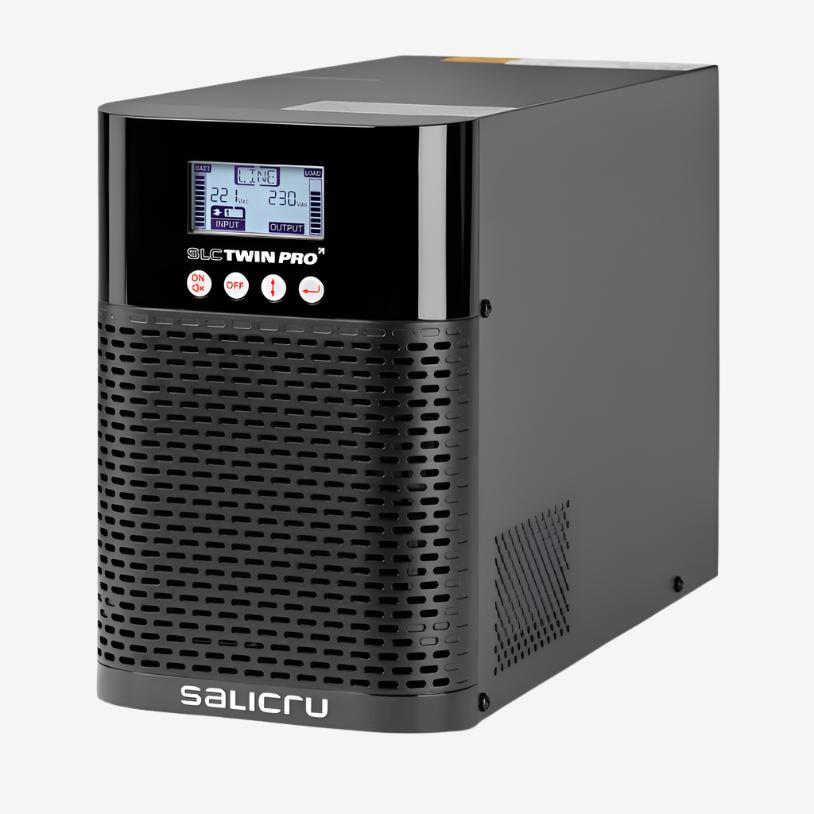

Salicru, SLC-1000-TWIN PRO2, On-Line, UPS - 1000VA, Double-Conversion

Roll over image to zoom in Click on image to zoom

Salicru, SLC-1000-TWIN PRO2, On-Line, UPS - 1000VA, Double-Conversion

Connection: Schuko

Variant

Price:

1,080.00 лв

Tax included

Stock:

In stock

Quantity:

Pickup available at Office Eurogroup-33

Usually ready in 24 hours

Тhe price on site may be different

The Salicru SLC TWIN PRO2 series features on-line double-conversion technology in a compact tower format, providing advanced protection for critical loads. Its high power factor (PF=0.9) ensures compatibility with a wide range of devices, including sensitive IT and industrial equipment.

Key features include:

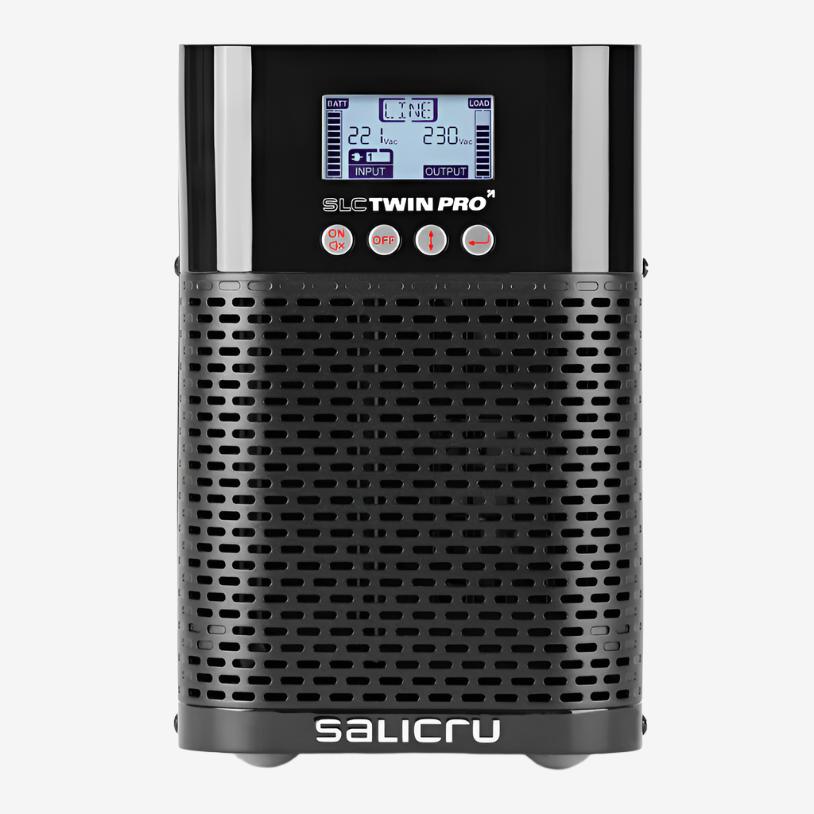

LCD display with keypad for intuitive operation
USB HID interface for easy PC integration
SNMP/relay support for advanced monitoring
Free multi-platform monitoring software (Windows, Linux, Mac)
Eco-mode, EPO, frequency conversion, and battery testing options
Support for extra chargers and battery modules for extended backup

The SLC TWIN PRO2 series is available in 700 VA to 3000 VA, making it ideal for demanding environments and mission-critical applications.

Manufacturer: Salicru

Model: SLC-1000-TWIN PRO2

Input - Output Voltage: 220 / 230 / 240 V

Voltage range: 176 ÷ 300 V

Number of slots: 3

Communication ports: USB HID

Security: Restart switch

Autonomy time: Depending on the load, please contact a Eurogroup-33 employee for more information.

Dimensions (LxWxH): 356x144x228

Weight: 10.2 kg

Origin: Spain

Warranty: 24 months

Technology: On-line double-conversion

Format: Tower

Capacity (VA/W): 1000 / 900

Other:

Cold start: Yes

Battery:
Battery type - Pb-Ca sealed, AGM, maintenance-free
Recharge time from 4 hours to 90%
Automatic battery start at every start.
Charge type - I/U (constant current/constant voltage)

Standards:
EN-IEC 62040-1, EN IEC 62040-2, VFI-SS-11 (EN-62040-3),
ISO 9001, ISO 14001, ISO 45001

• Performance: This UPS has a power factor of 0.9 and is a tower form factor.
• Control and Monitoring: It features an easy-to-use LCD display and buttons for convenient operation.

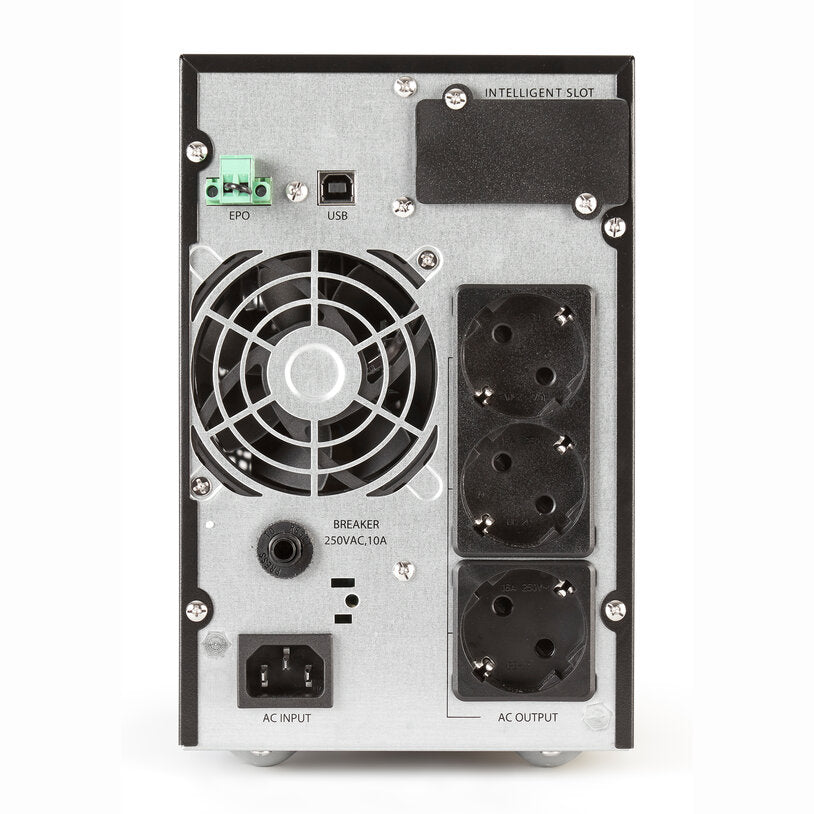

• Connectivity: The UPS comes with Schuko or IEC outlet sockets for connection. It also features an Emergency Power Off (EPO) function and intelligent SNMP slots.
• Eco Mode Operation: This feature improves energy efficiency by allowing the UPS to support the load only during power fluctuations.
• Advanced Backup Options: For applications requiring longer backup time, customers can add additional battery modules to increase the backup time.
• Display Information: The control panel provides real-time information on battery levels, load, operating status, input and output voltage and frequency.

Input specifications:

• Nominal voltage: 208 / 220 / 230 / 240 V
• Voltage range (at 100% load): 170 – 280 V
• Frequency: Automatically detects 50 / 60 Hz, with a tolerance of ±5 Hz
• Protection: Fuse for 800/1100 VA models; resettable thermal circuit breaker for 1500/2000/3000 VA models

Output characteristics:

• Power factor: 0.9
• Nominal voltage: 208 / 220 / 230 / 240 V
• Voltage accuracy (in battery mode): ±1.5%
• Pure sine wave
• Frequency: Matches input (50/60 Hz) with an accuracy of ±0.1 Hz
• Overload protection: Can handle up to 120% for 1 minute in battery mode and up to 150% for 10 seconds

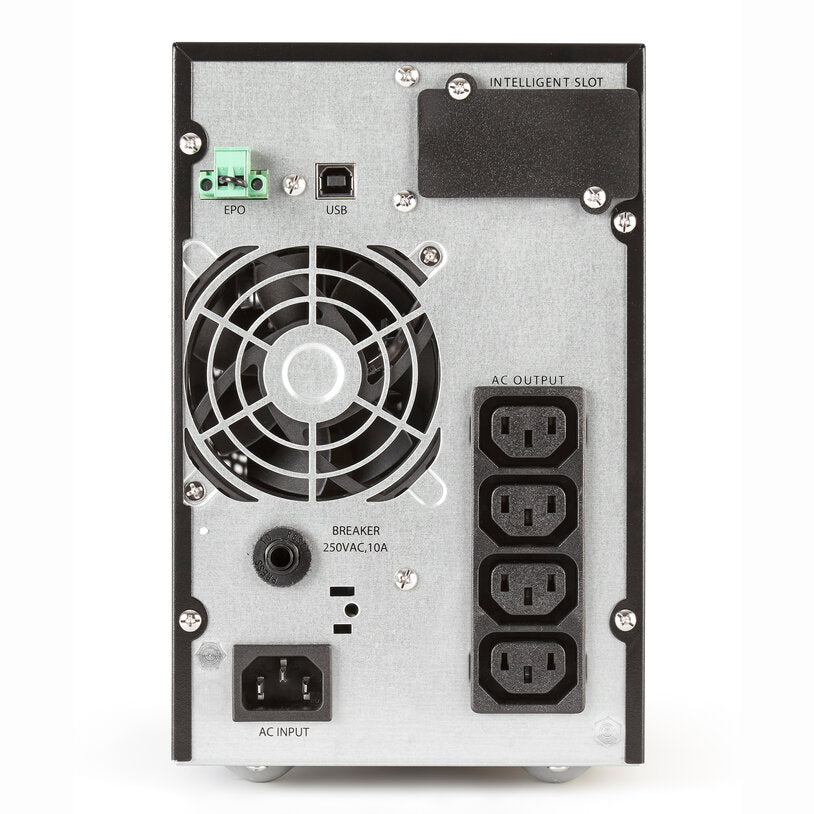

• Contact type: IEC, with a total of 8 contacts, of which 4 are programmable for critical and non-critical loads

Battery characteristics:

• Battery type: Sealed Pb-Ca AGM
• Charging time: 4 hours to 90%
• Battery test: Automatic test at start-up

Communication features:

• Ports: RS-232 and USB-HID for easy connectivity
• Smart Slot: For SNMP, floating contacts or MODBUS
• Monitoring Software: Compatible with Windows, Linux and Mac

Display and Indicators:

• Display Type: LCD with buttons
• Information Displayed: Voltage, Power, Battery Status, Load Percentage, Operating Mode and Error Indications

Additional Features:

• Cold Start: Yes, allows starting from batteries
• Emergency Power Off (EPO): Yes

Download PDF
