Technical file: Pytes V5°α
For quantities of 12 pieces, a discount can be applied upon negotiation. For a specific offer, please send an inquiry through the contact form on the website or get in touch with us by phone.
High-performance LFP (Lithium Iron Phosphate) battery for home energy storage systems. Helps save on electricity bills during peak hours and provides backup power during outages. Compatible with electricity stored from solar panels or the grid.
-
Nominal voltage: 51.2V
-
Voltage range: 47.5–57.6V
-
Nominal capacity: 100Ah
-
Nominal energy: 5.12 kWh
-
Recommended charge/discharge current: 75A
-

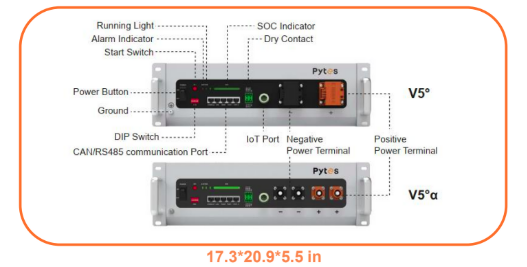

Connection options: V5°: PHOENIX M6 Bolt, V5°α: Amphenol SurLok Plus 8.0 mm
-
Compatibility: Works with most inverter brands on the market
-
Certifications: CEC, SGIP, CE, IEC62619, UN38.3
-
Performance: ≥6000 cycles @ 90% DOD (retaining 80% capacity at 25℃), >95% round-trip efficiency
-
Warranty / Design life: 10 years warranty, up to 20 years design life
-
Features: Higher charge/discharge rate, higher energy density, wide operating temperature, scalable, remote monitoring and upgrading, CAN/RS485 communication port
