Technical file: Pytes V-Box-IC

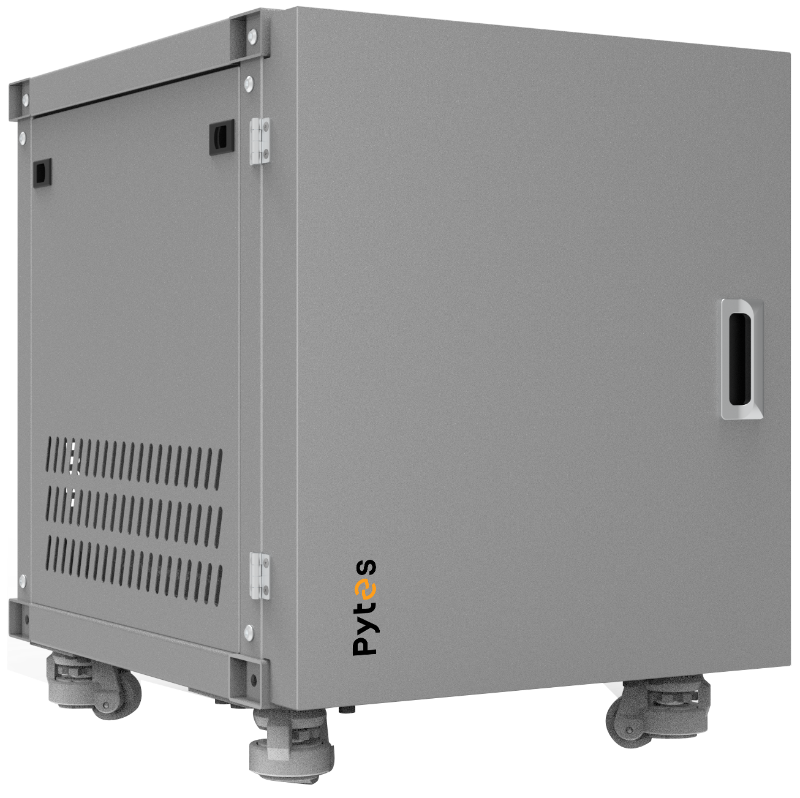

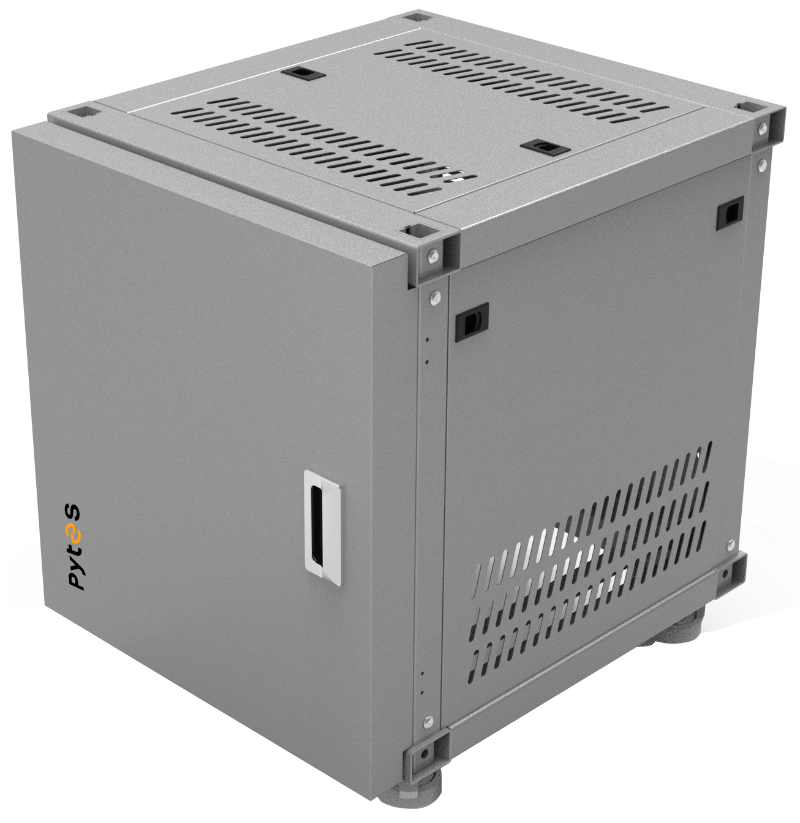

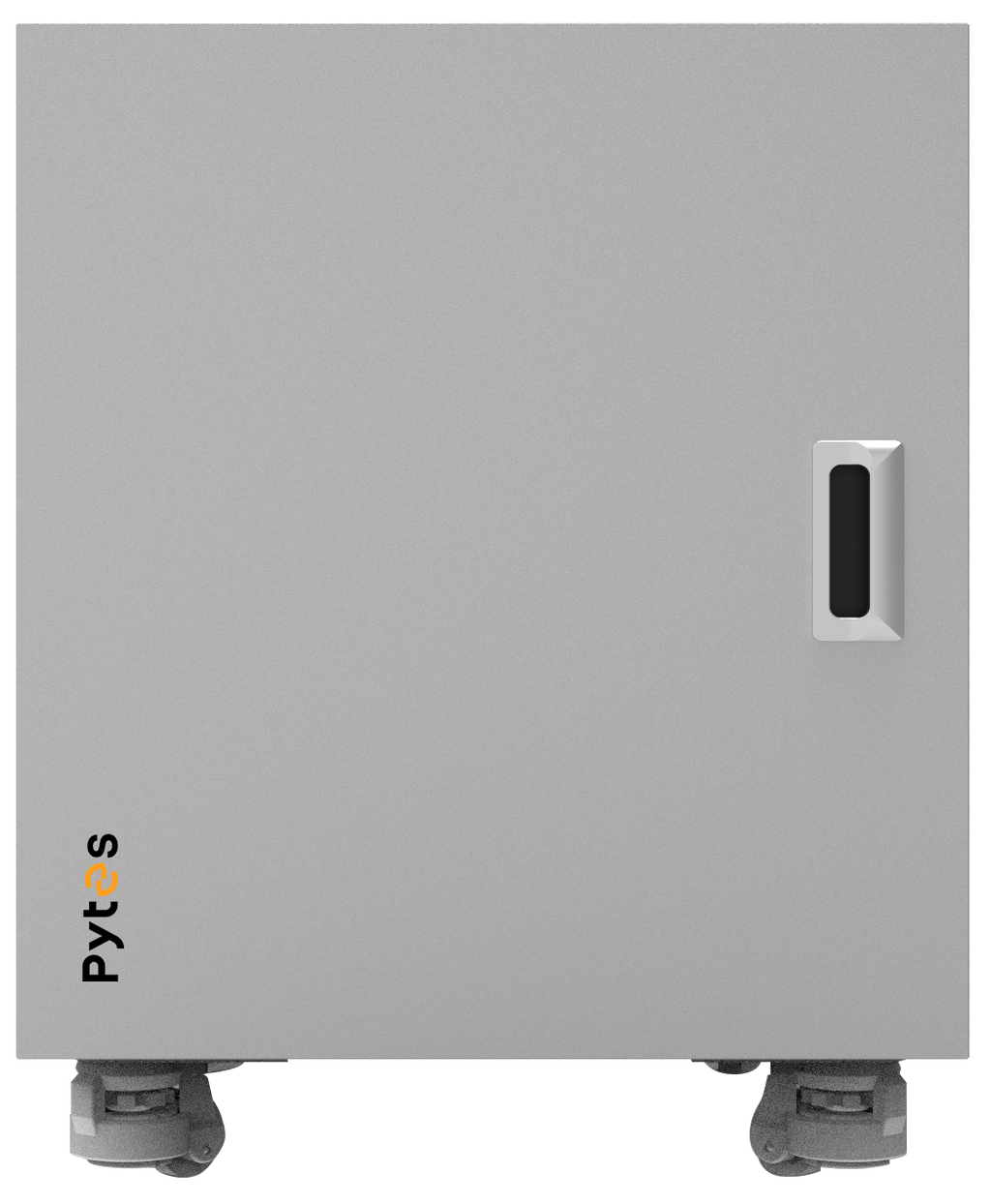

The Pytes V-Box-IC is a compact indoor cabinet designed to hold up to 3 Pytes V5° or V5°α batteries. With a scalable and modular design, it allows stacking of up to 2 cabinets for larger storage needs. Built with galvanized steel and natural convection cooling, it provides safe, efficient, and space-saving installation for home and commercial energy storage systems.
Specifications

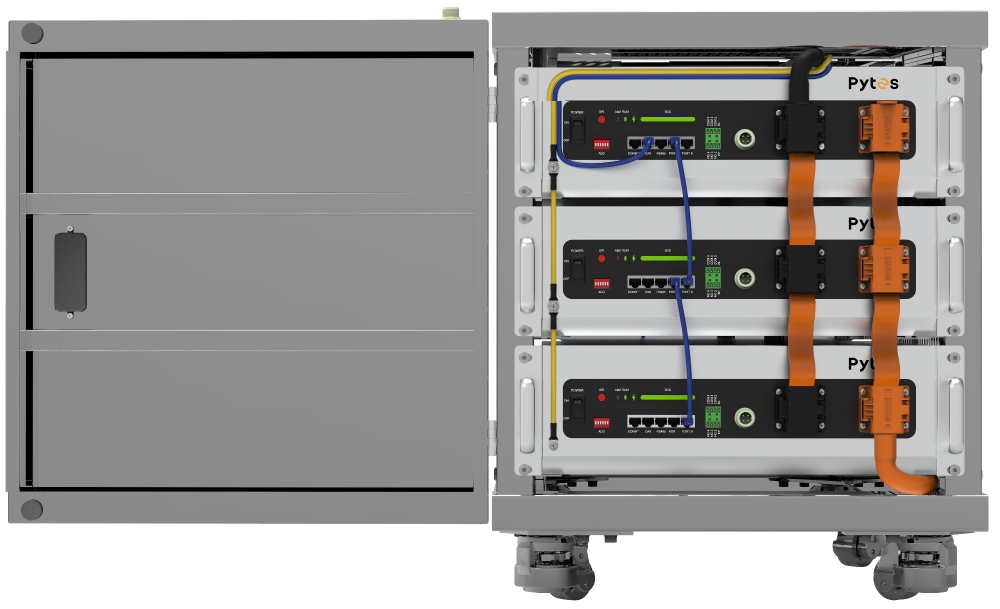

Capacity: up to 3 × Pytes V5° / V5°α batteries
-
Stackable: up to 2 cabinets
-
Dimensions (L × W × H): 533 × 616 × 650 mm / 21.0 × 24.3 × 25.6 in
-
Weight: 42.2 kg / 93 lbs
-
Mounting: Floor mount
-
Enclosure rating: IP20 (indoor use only)
-

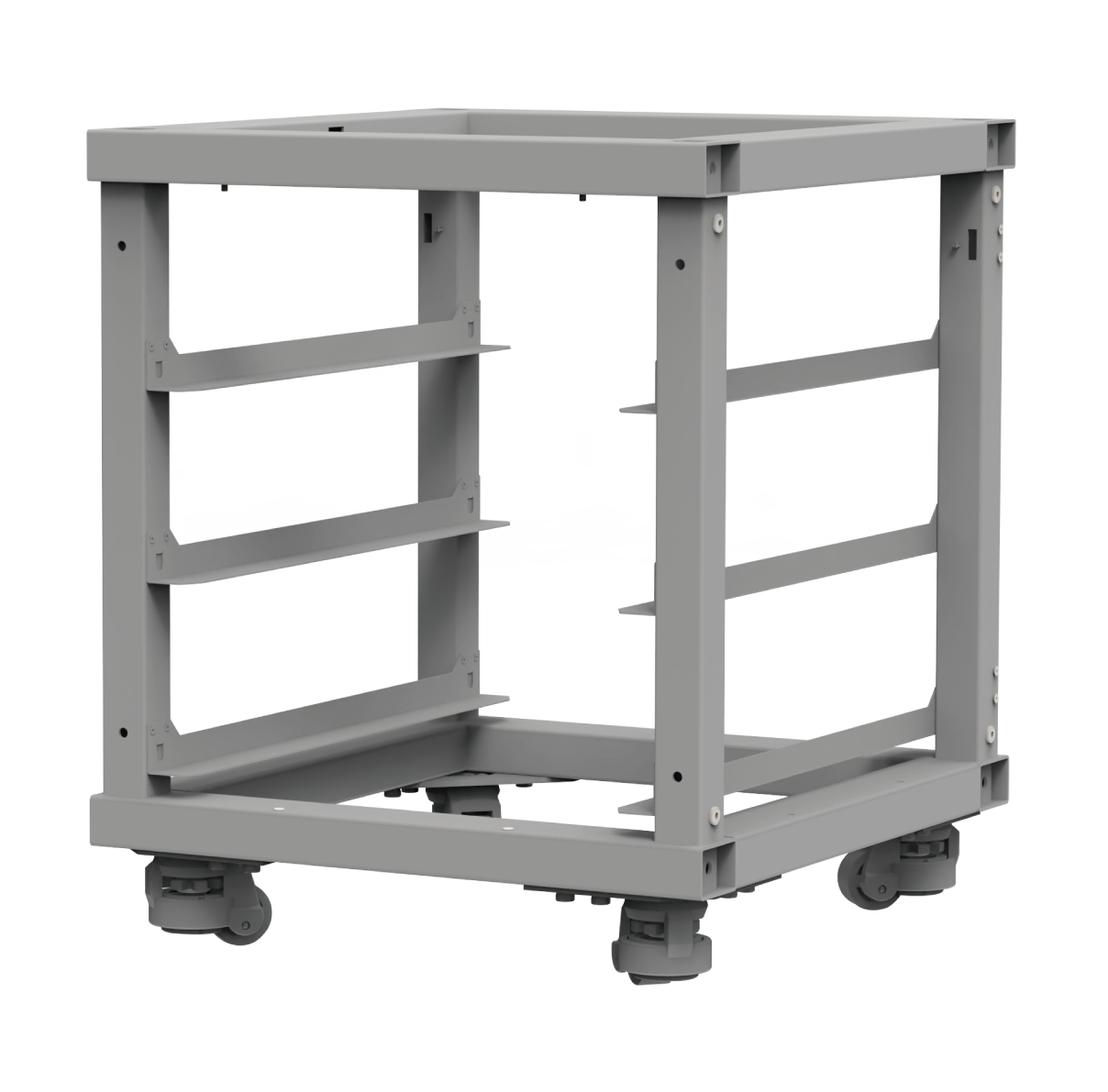

Material: SGCC galvanized steel
-
Cooling: Natural convection
-
Features: Modular design, scalable, easy mobility, secure fixation, quick installation (3 minutes), small footprint
