Technical file: Pi Station 417
Delivery: Please note that the delivery time for this product is a minimum of 3 weeks.

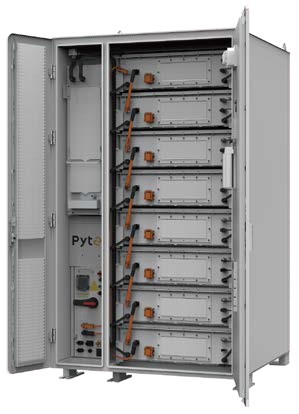

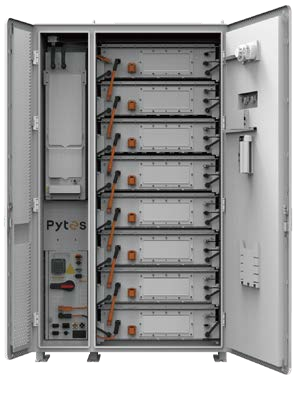

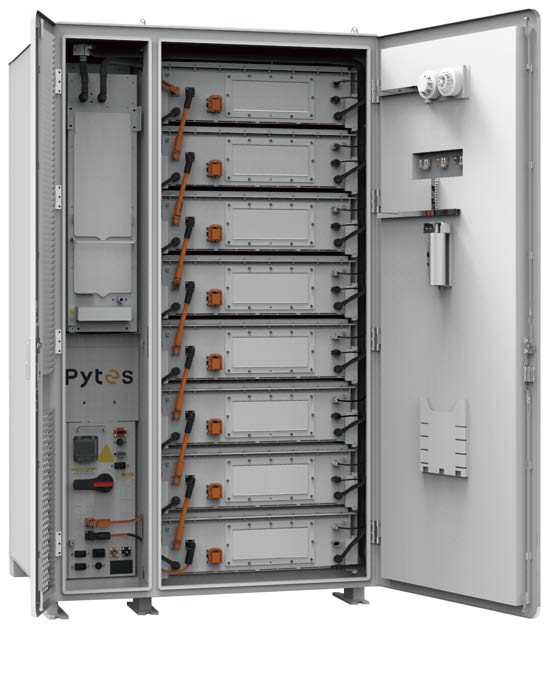

The Pytes Pi Station 417 is a high-capacity liquid cooling battery cabinet designed for utility-scale and commercial energy storage applications. With a total capacity of 417 kWh and efficient thermal management, it provides reliable performance, long service life, and easy on-site installation.
Key Features
-
417 kWh total energy storage
-
Liquid cooling & heating system for stable operation
-
Excellent cell consistency and safety detection
-
100% DoD, ≥6000 cycles, 10-year calendar life
-
IP54 outdoor-rated cabinet
-
Scalable – multiple cabinets can be connected in parallel
Specifications
-
Model: Pi Station 417
-
Configuration: 1P416S
-
Rated voltage: 1331.2 V
-
Voltage range: 1164.8 – 1497.6 V
-
Rated energy: 417 kWh
-
Rated power: 186.35 kW
-
Rated charge/discharge current: 140 A
-
Pulse charge/discharge current: 280 A
-
Efficiency: ≥92%
-
Weight: 3500 kg
-
Dimensions: 1300 × 1300 × 2316 mm
-
Operating altitude: ≤3000 m
-
Operating temperature: −30 °C to +55 °C
-
Cabinet temperature range: −20 °C to +50 °C
-
Enclosure protection: IP54
-
Thermal management: Liquid cooling/heating
-
Refrigerating capacity: 8 kW @ 45 °C
-
Heating capacity: 3 kW
-
Auxiliary power supply: Average 3.35 kW / Max 5.2 kW
-
Communication: CAN
-
Certifications: UN38.3, UL1973, IEC62619, UL9540A, IEC62477, IEC62933-5-2, IEC63056, IEC61000-6-2/4
