Technical file: Pytes Pi Station 230EX

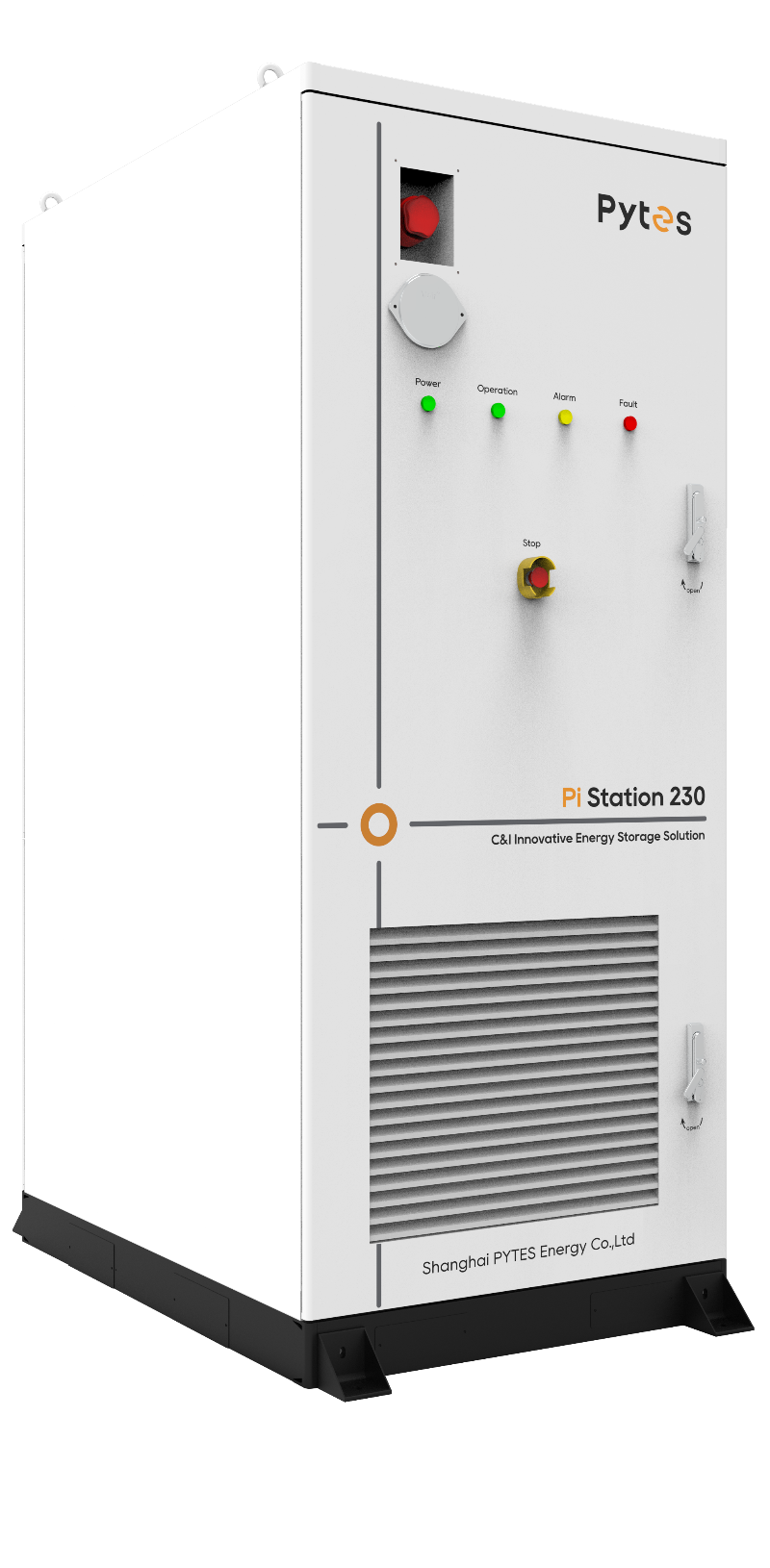

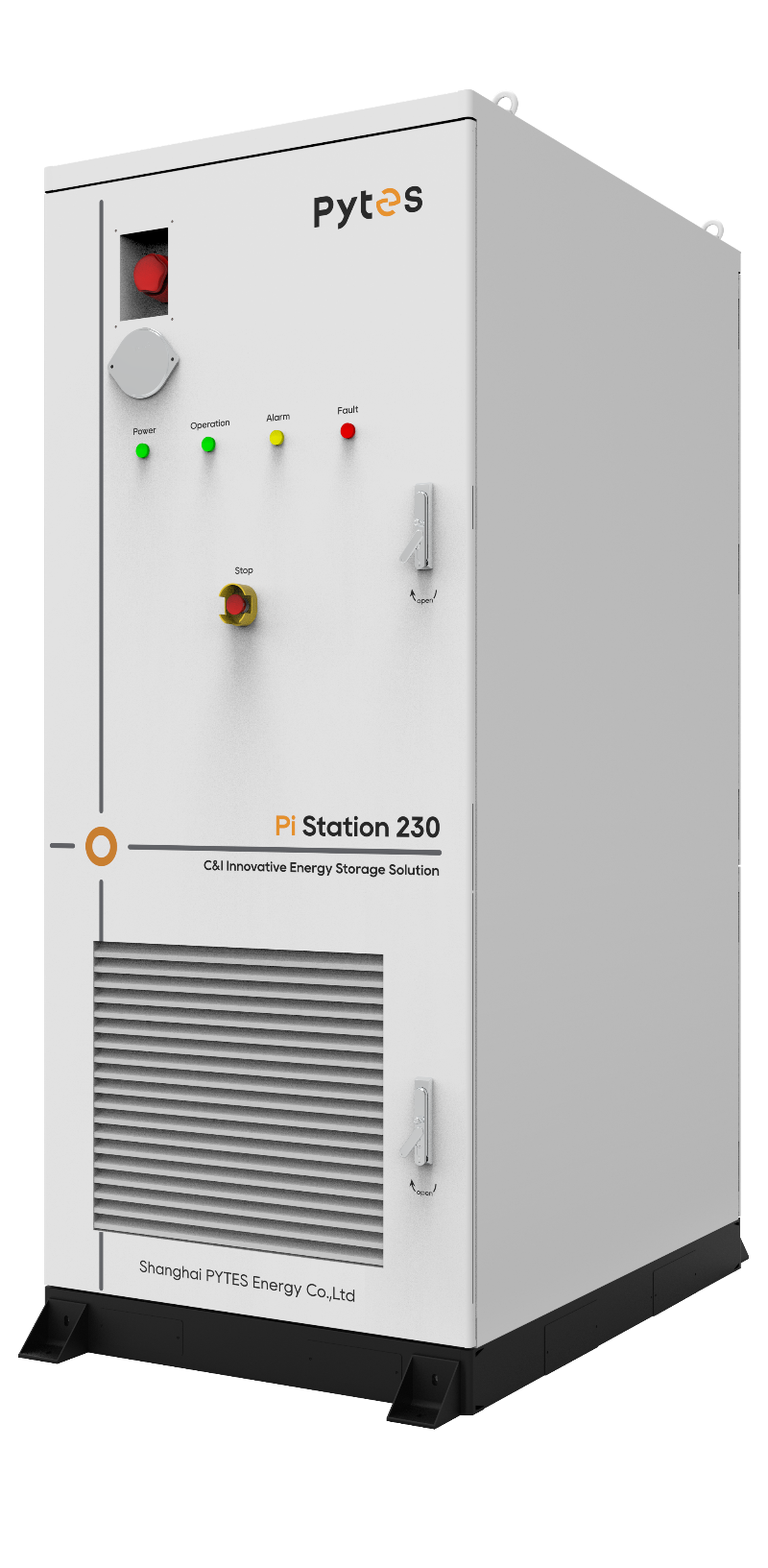

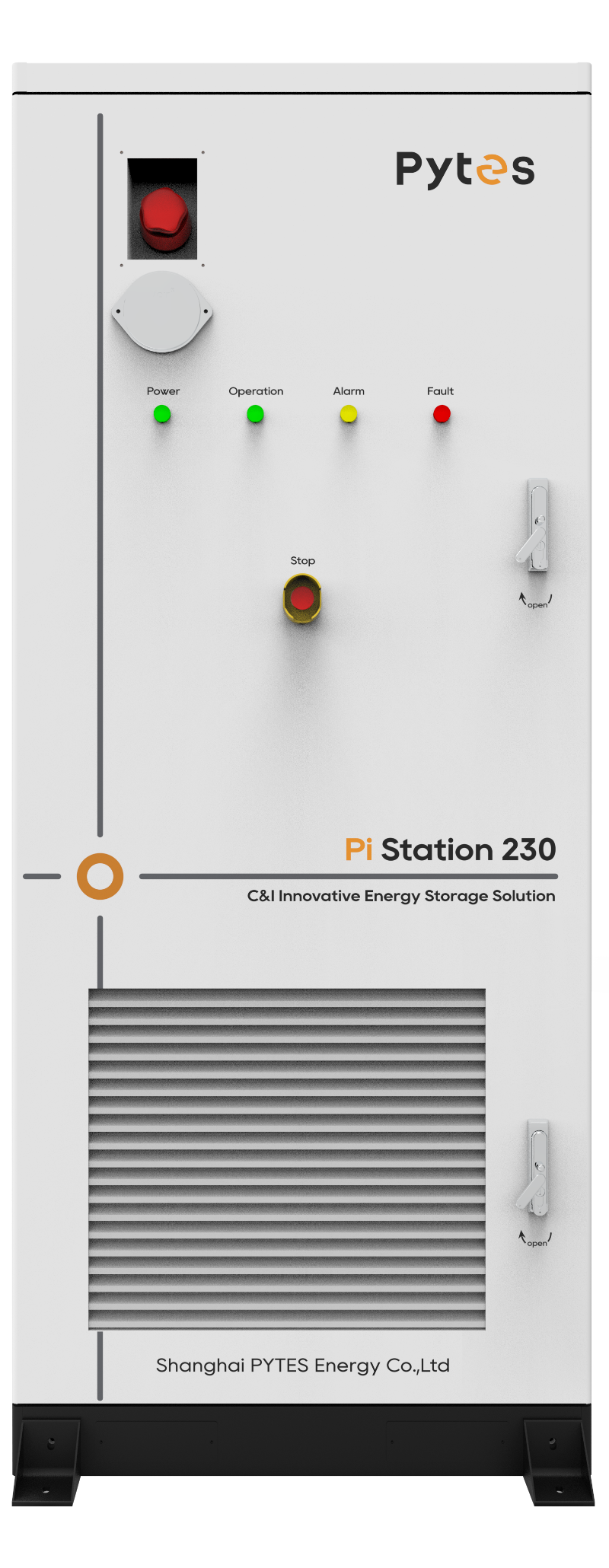

The PYTES Pi Station 230EX is an all-in-one liquid-cooled battery cabinet with a full configuration capacity of 232.96 kWh. Designed for grid-tied applications, it combines high energy density, safety, and reliability, making it ideal for large-scale energy storage in generation plants, transmission grids, and commercial installations.
Key features
-
Battery chemistry: LiFePO₄ (LFP)
-
Nominal capacity: 232.96 kWh
-
Nominal output power: 105 kW
-
Nominal voltage: 832 V (operating DC 650–949 V)
-
Cycle life: ≥ 6000 cycles @ 90% DoD
-
Efficiency: 90% round-trip
-
Cooling system: Advanced liquid cooling
-
Dimensions (W × D × H): 1000 × 1390 × 2330 mm
- IP55 protection, suitable for outdoor/indoor installation
-
Operating temperature: −20 °C to +55 °C
-
Communication: CAN, RS485, Ethernet (Modbus RTU/TCP)
-
Fire safety: Aerosol tube, water fire system, heat/smoke/gas sensors
-
Certifications: IEC, UL, CE, UN38.3, RoHS, REACH
-
Warranty: 3 years product, 10 years battery
Delivery: Please note that the delivery time for this product is a minimum of 3 weeks.
