Technical file: Pi LV1

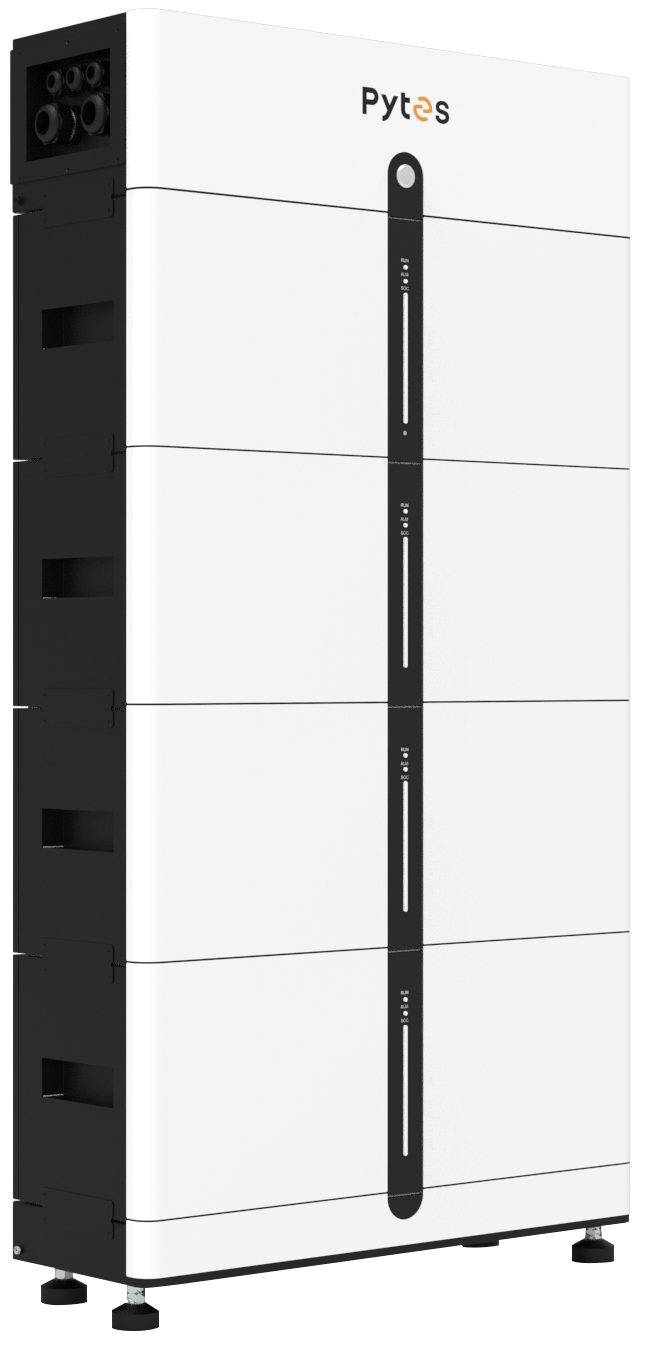

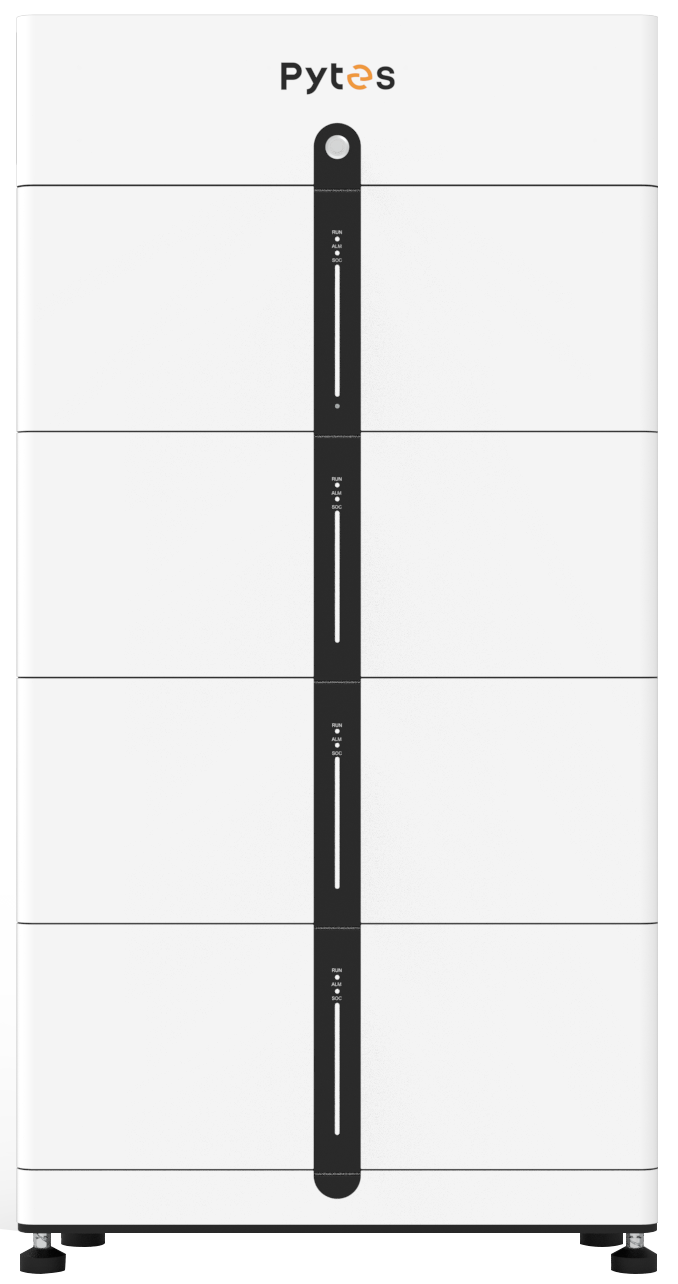

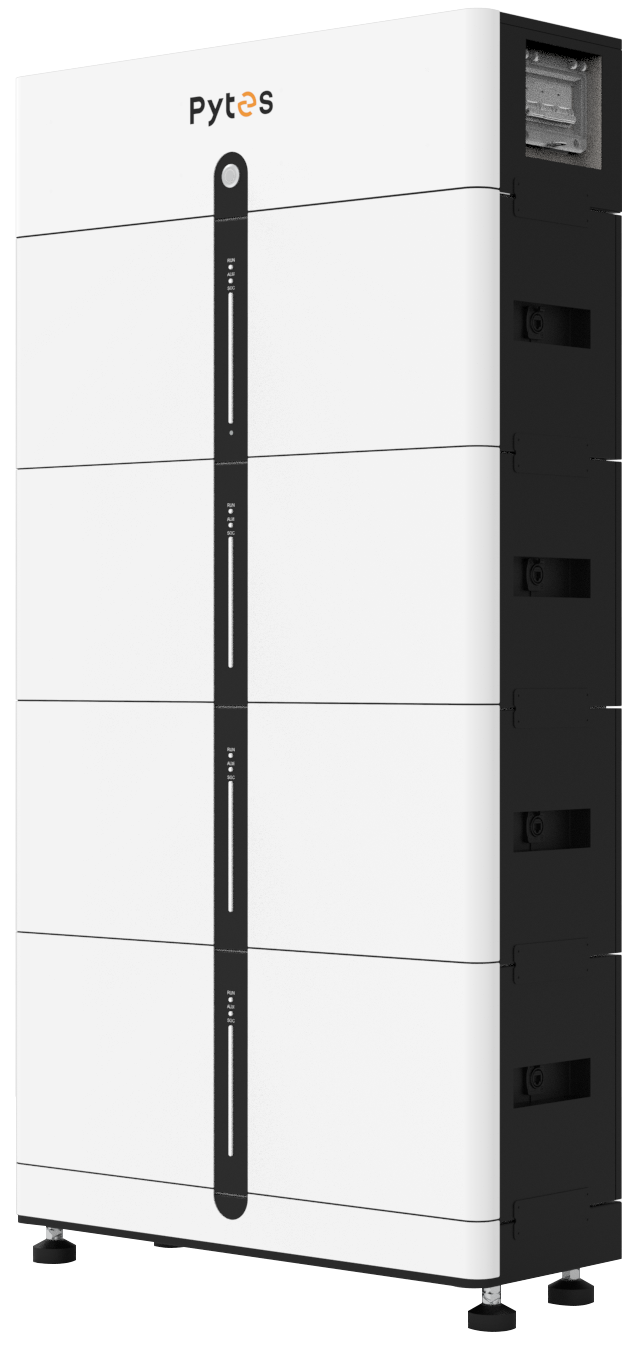

The Pytes Pi LV1 BMU is a modular low-voltage LiFePO₄ battery unit, designed for residential and commercial energy storage. Each module provides 5.12 kWh capacity and can be flexibly stacked to achieve 10.24–30.72 kWh per stack, with up to 4 stacks in parallel. With its plug-and-play design, advanced BMS, and IP55 enclosure, it ensures safety, reliability, and easy installation.
Specifications
-
Cell type: LiFePO₄ (LFP)
-
Nominal energy: 5.12 kWh per module
-
Nominal voltage: 51.2 V
-
Voltage range: 47.5–56.8 V
-
Nominal capacity: 100 Ah
-
Recommended continuous charge/discharge current: 50 A
-
Cycle life: ≥ 6000 cycles
-
Communication: CAN, RS485
-
Protection level: IP55 (indoor & outdoor use)
-
Operating temperature: −10 °C to +55 °C
-
Storage temperature: −20 °C to +50 °C (1 month), −10 °C to +40 °C (1–3 months), 0 °C to +30 °C (3–12 months)
-
Scalability: 2–6 modules per stack (10.24–30.72 kWh), up to 4 stacks in parallel
-
Certifications: CE, IEC62619, UL1973, UL9540, UL9540A, UN38.3
-
Warranty: 10 years
