Technical file: Pi LV1

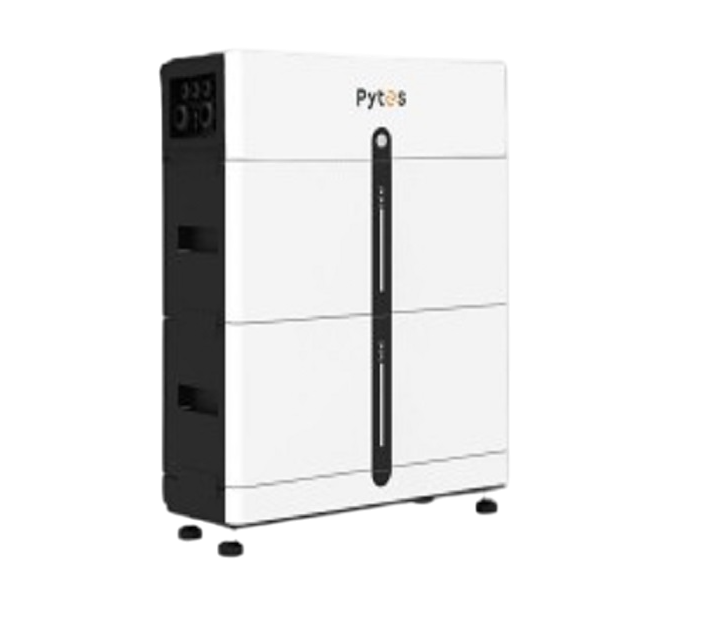

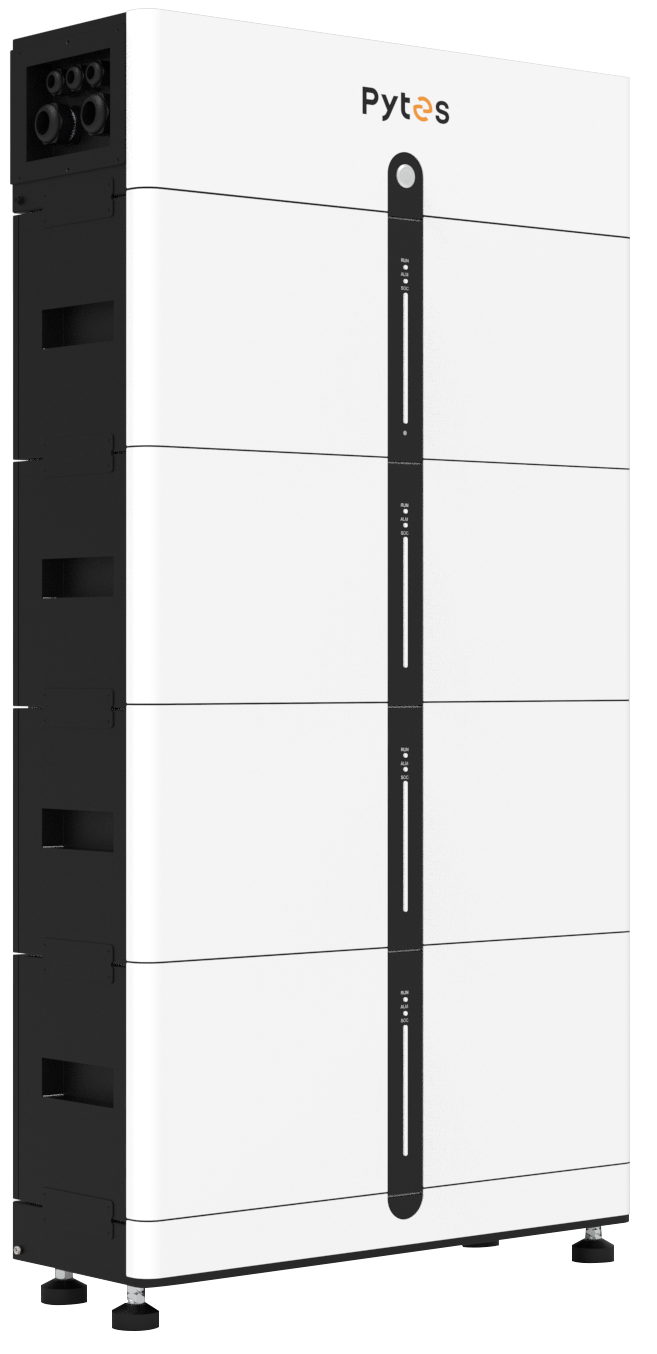

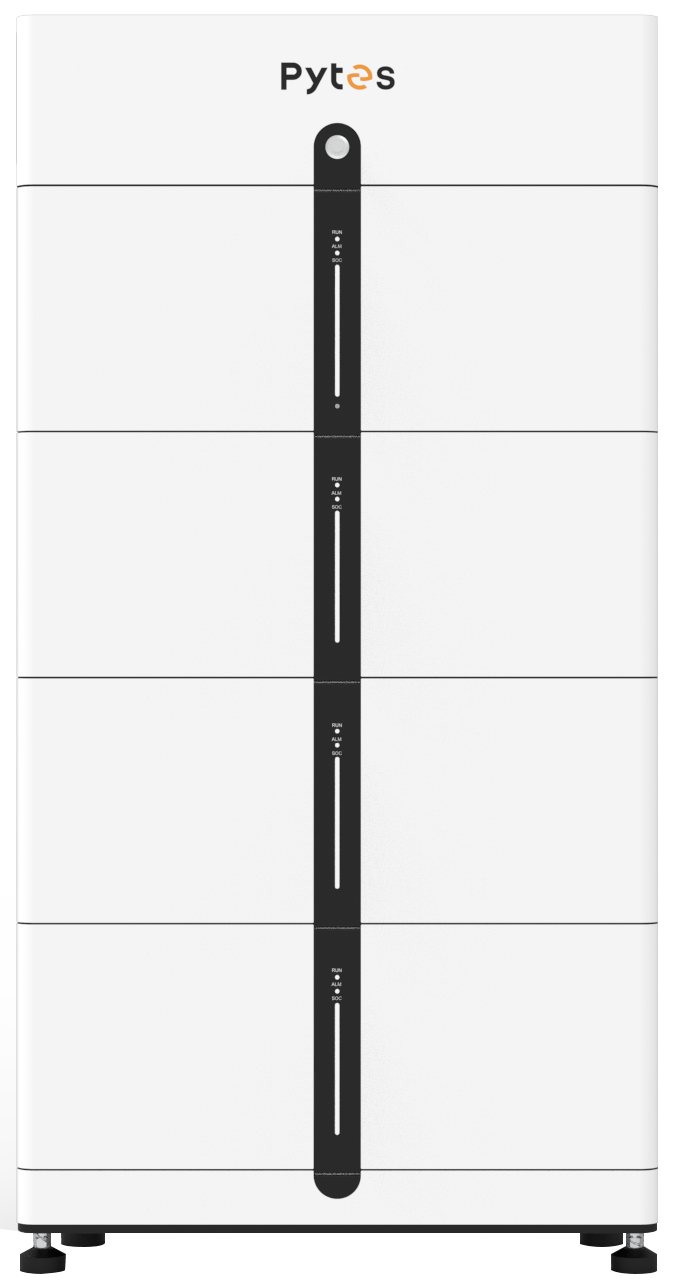

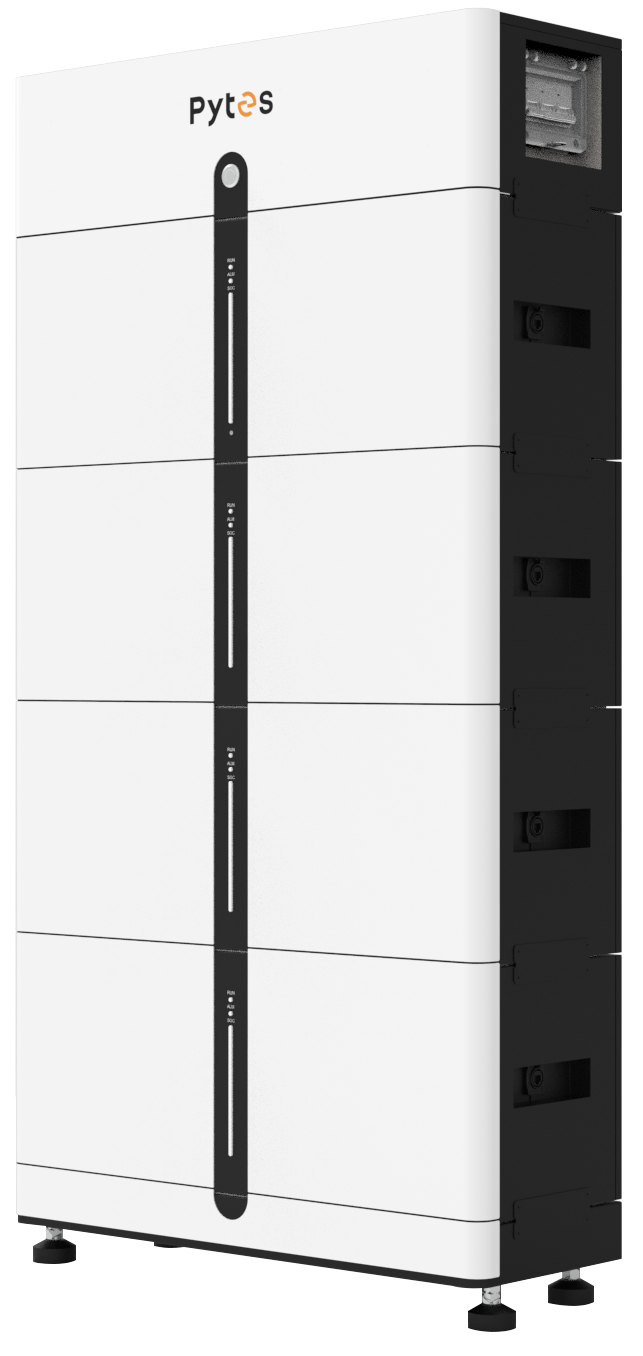

The Pytes Pi LV1 is a modular low-voltage LiFePO₄ energy storage system combining the BMU battery modules with the BCU main control unit. Together, they form a scalable, safe and high-performance solution for residential and commercial solar systems, backup power, and off-grid applications.
The system is designed for fast installation, simple expansion, and stable daily operation. One BCU controls and manages stacked BMU modules, providing intelligent monitoring, communication with inverters, and complete system protection.
Key Features
-

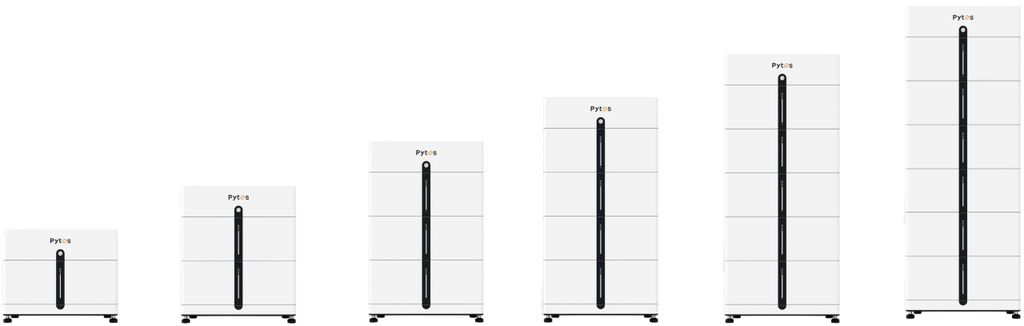

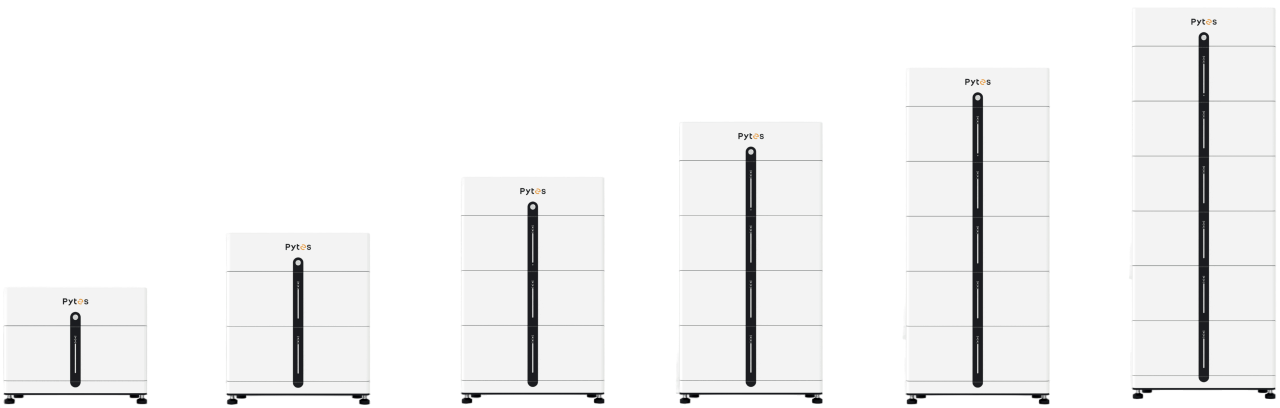

Modular design – from 5.12 kWh (1 BMU) up to 30.72 kWh per stack (up to 6 BMUs)
-
Plug-and-play installation with quick connectors
-
Integrated BMS protection (over-charge, over-discharge, temperature protection, short-circuit)
-
High cycle life and stable performance
-
Supports parallel expansion for larger systems
-
Smart communication: RS485 / CAN
-
Robust enclosure suitable for indoor installation
BCU (Main Control Unit) – Functions
-
System monitoring & balancing
-
Controls charge/discharge
-
Manages communication with the inverter
-
Coordinates up to 6 BMU modules in one stack
-
Ensures safety and fault protection
BMU (Battery Module Unit) – Specifications
-
Battery type: LiFePO₄
-
Nominal voltage: 51.2 V
-
Nominal capacity: 100 Ah
-
Energy per module: 5.12 kWh
-
Cycle life: ≥ 6000 cycles
-
Operating temperature: wide range suitable for residential installations
-
Scalability: up to 6 modules per stack
Delivery: Please note that this is a pre-order and requires a certain delivery time.
