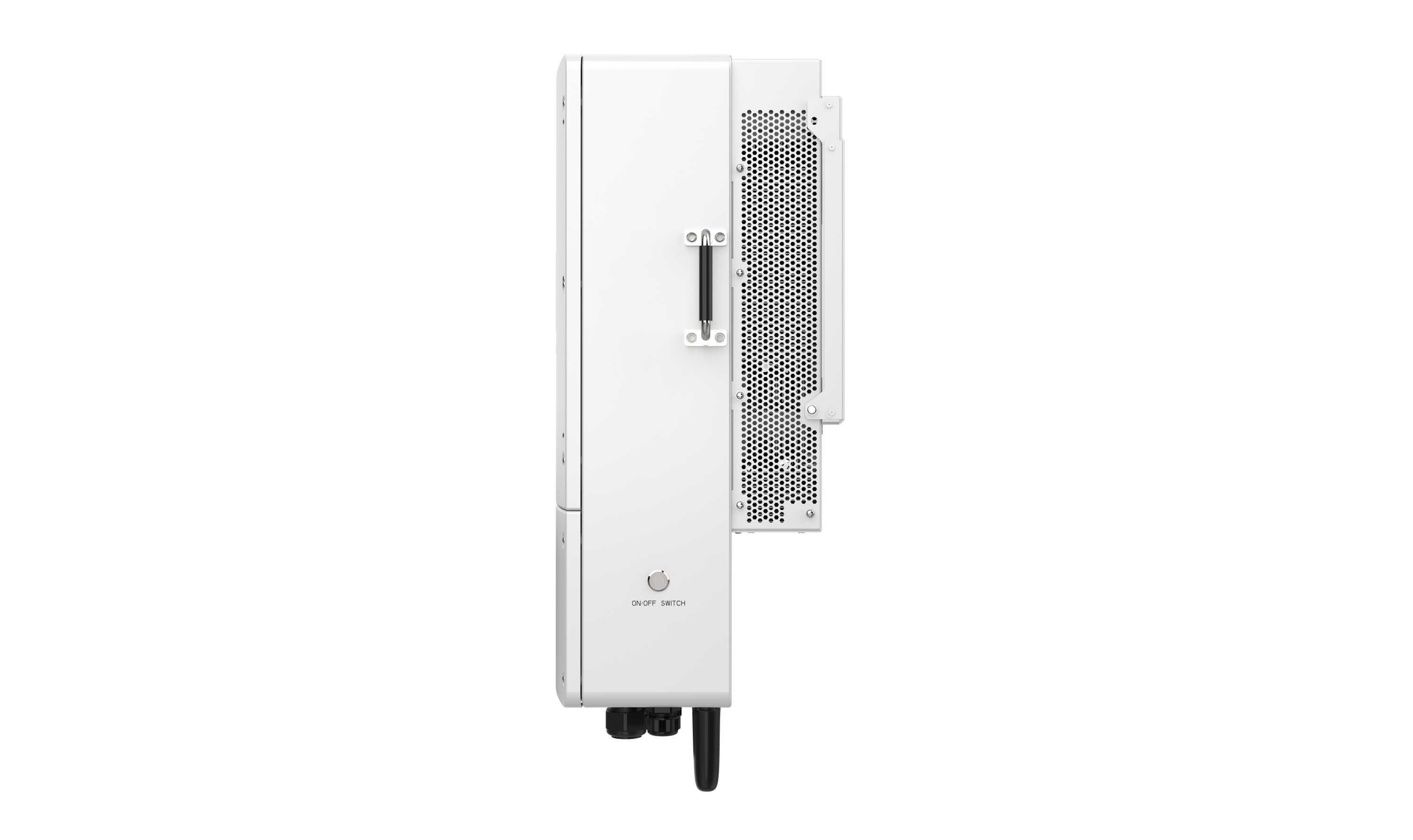

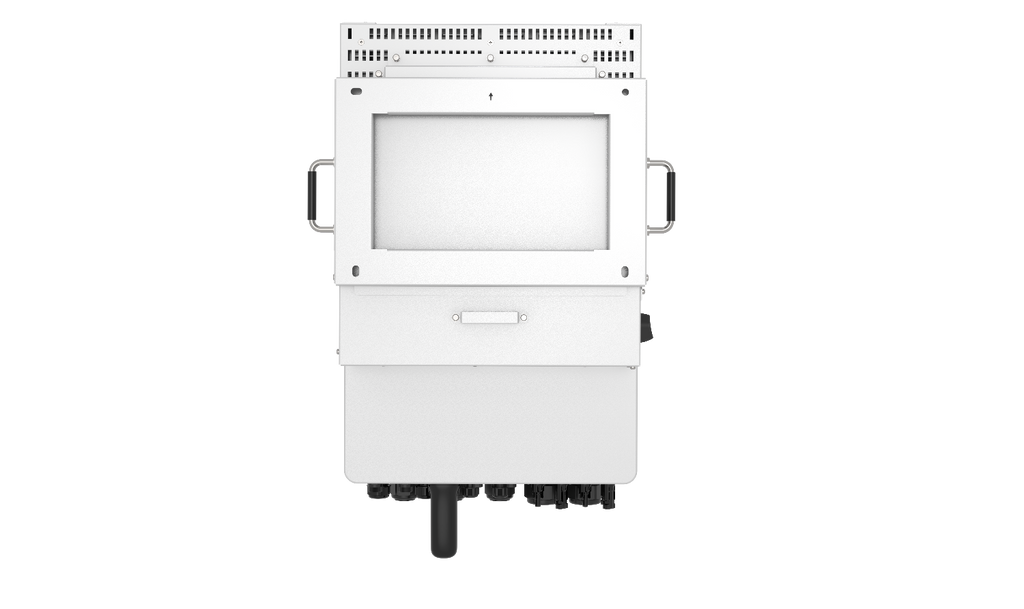

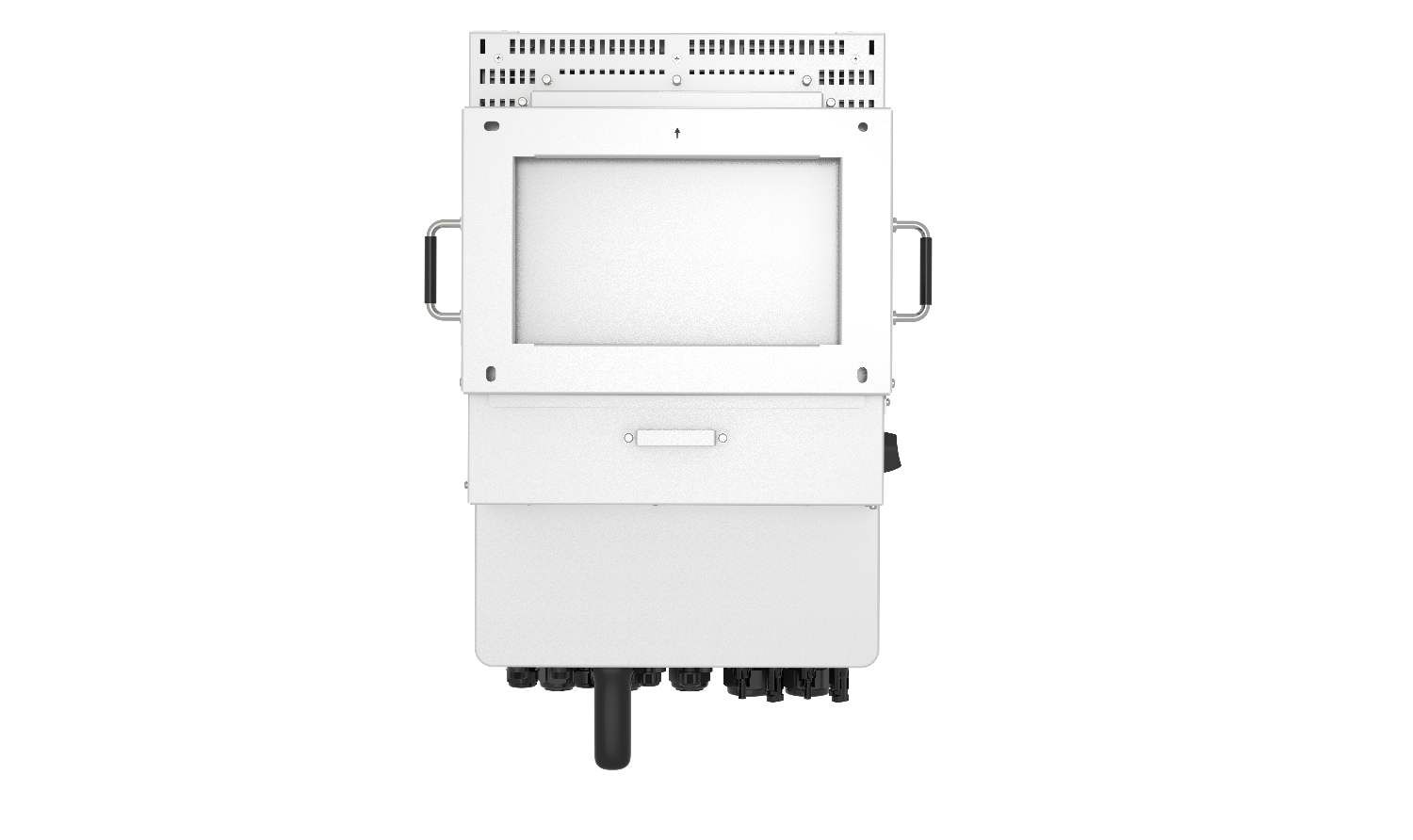

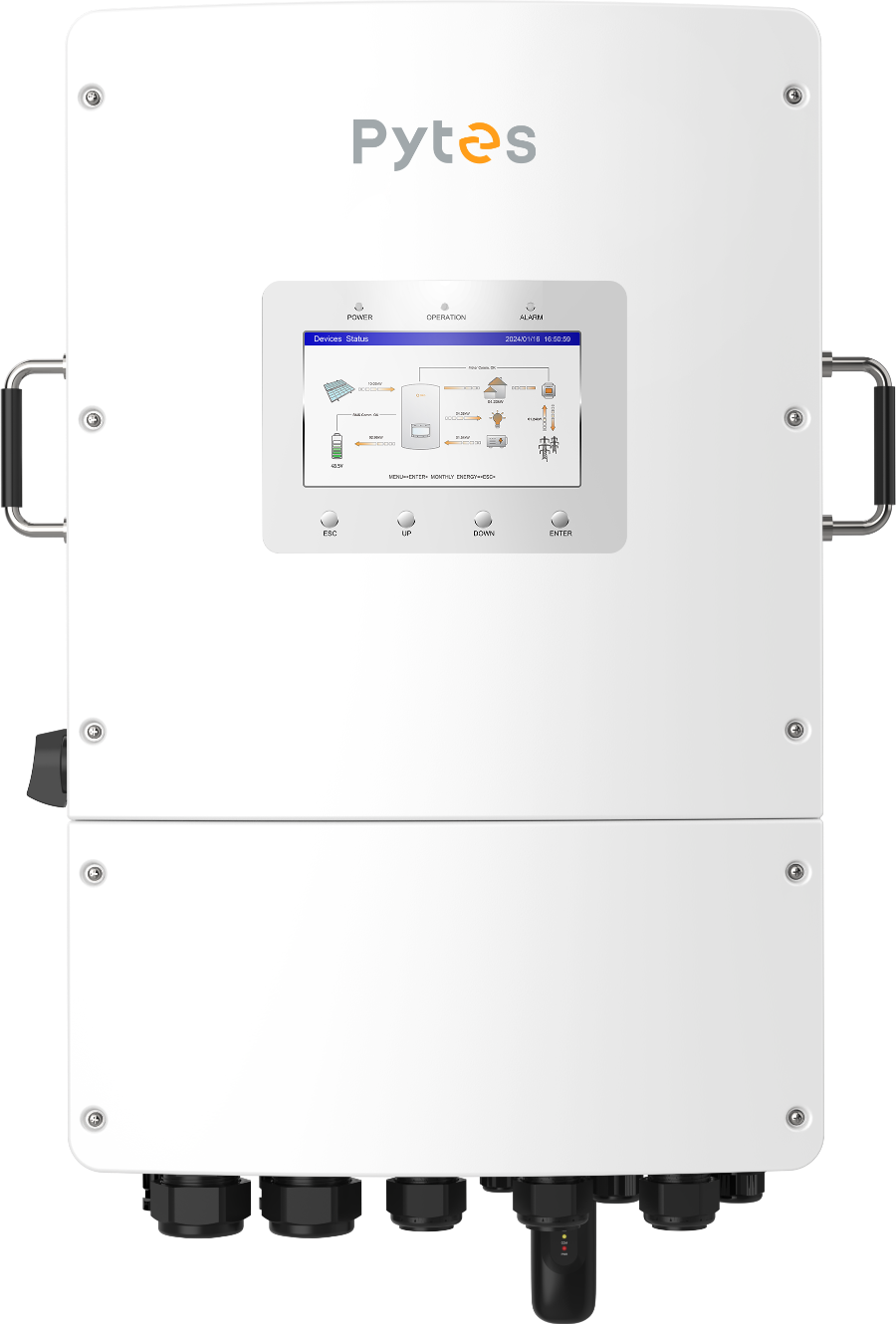

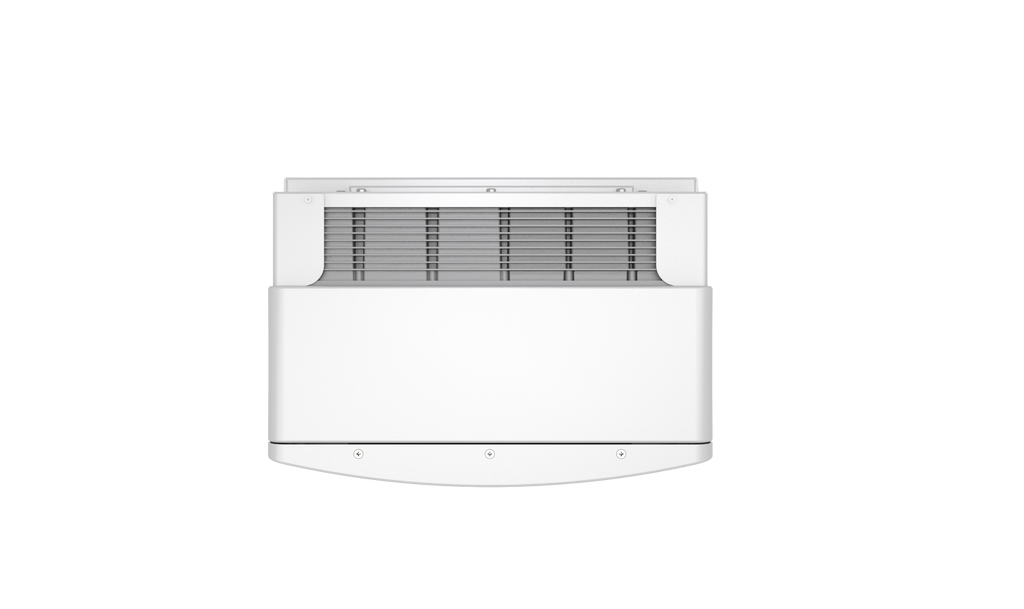

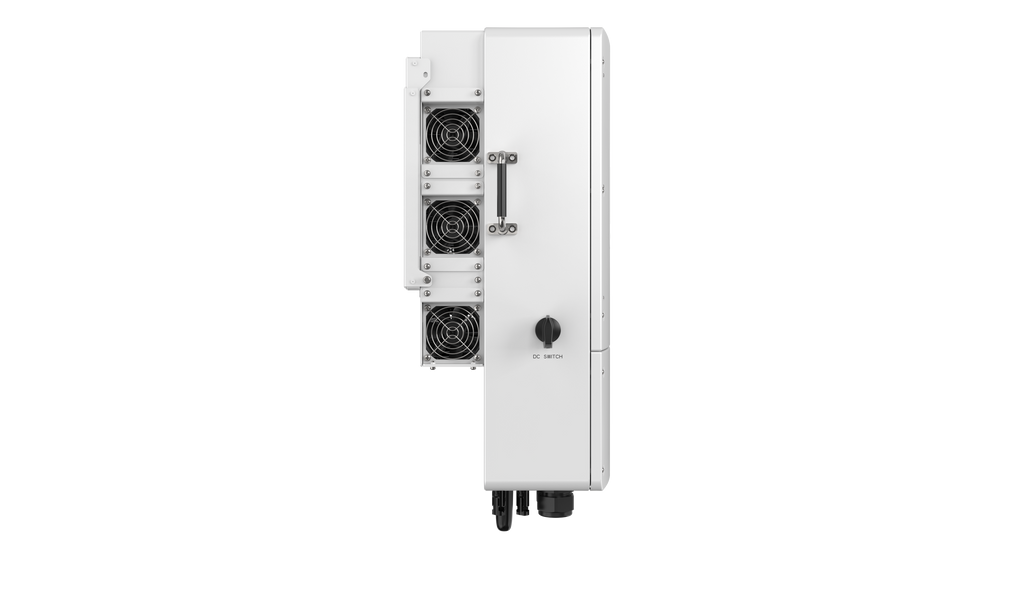

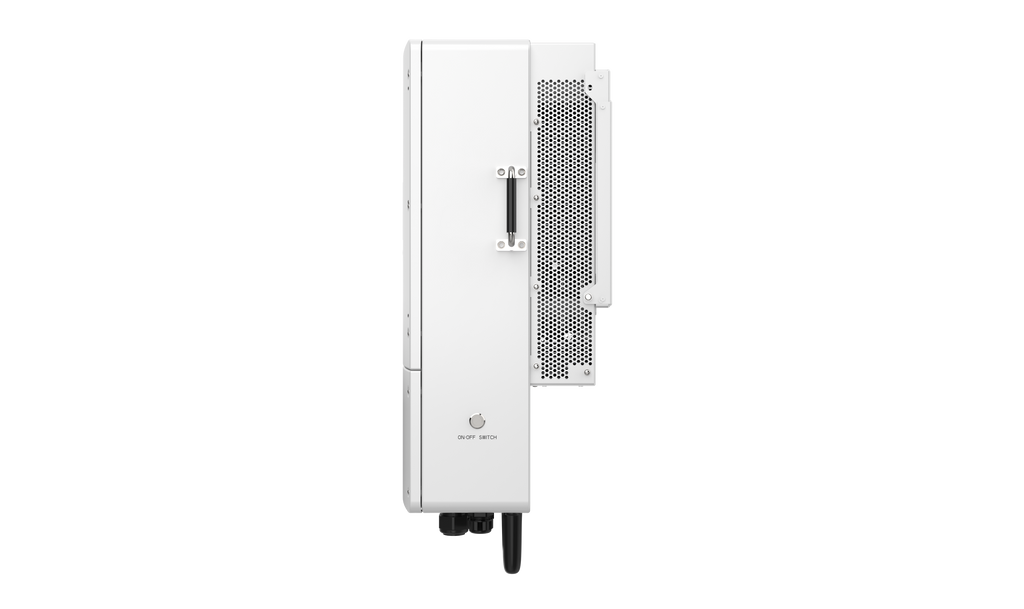

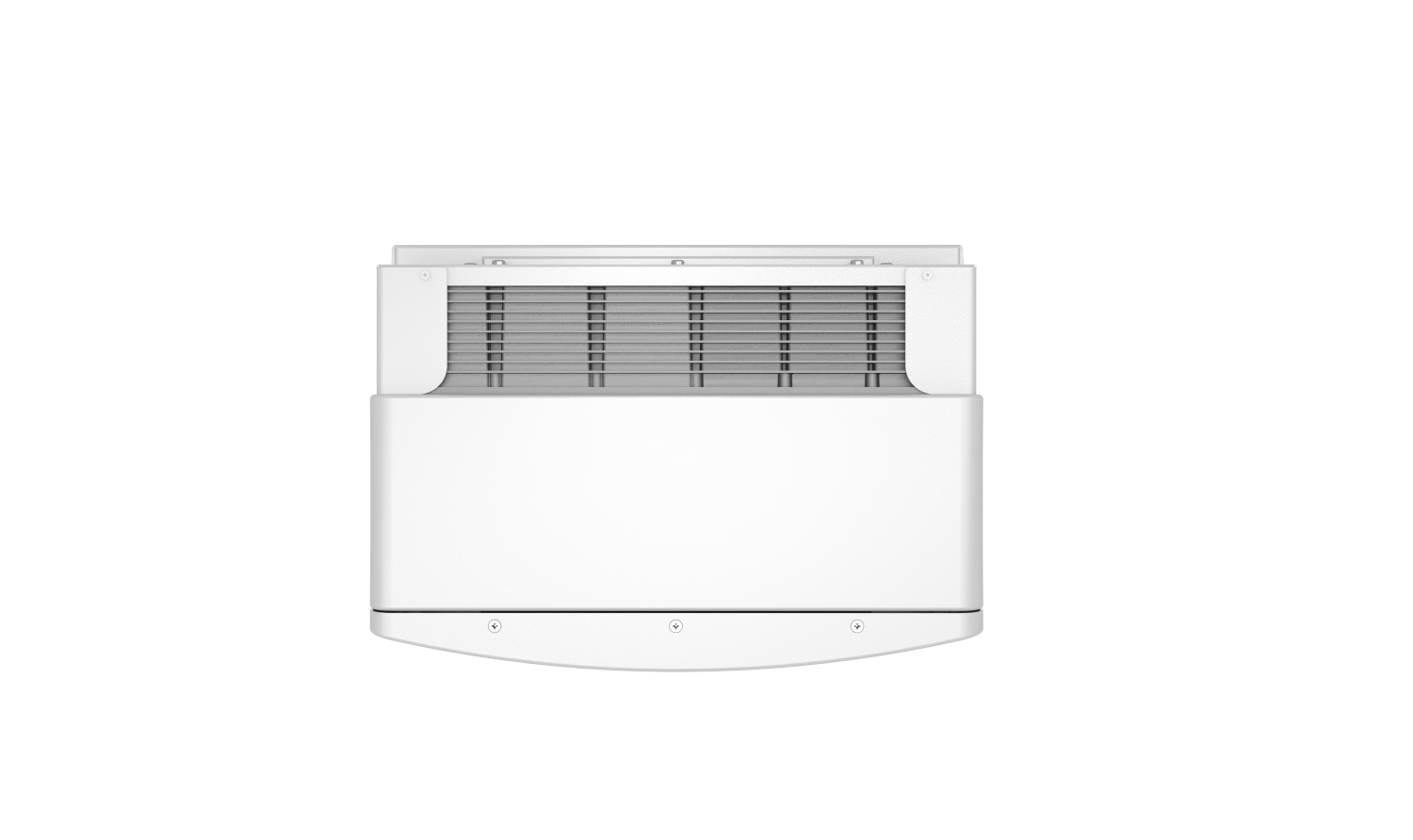

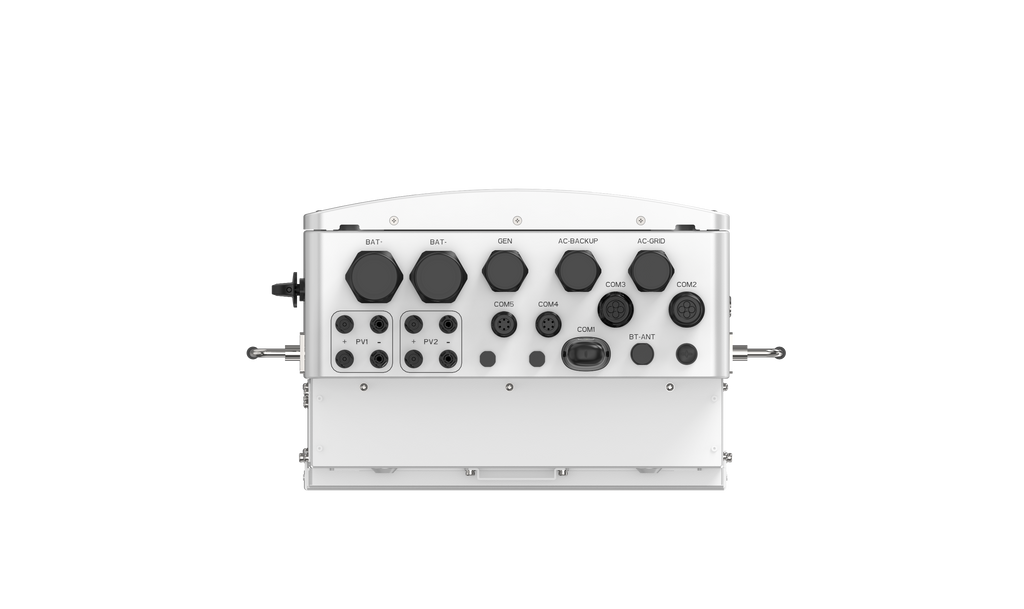

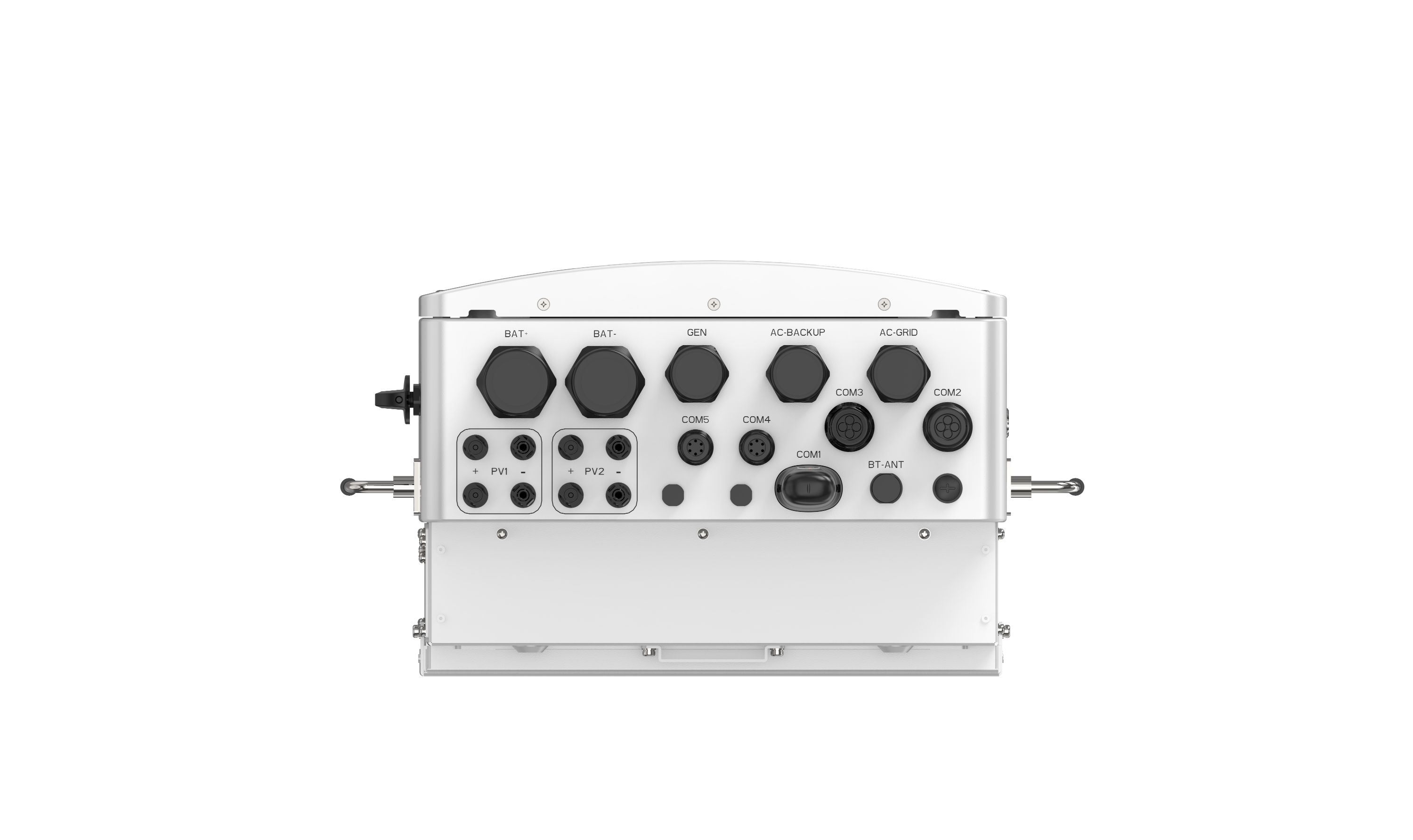

Technical file: Pytes JS Hybrid Inverter
The Pytes JS Series is a reliable three-phase hybrid inverter designed for residential and commercial solar energy systems. Compatible with 48 V low-voltage batteries (40–60 V), it supports PV input up to 1000 V with dual MPPT, delivering maximum efficiency and stable energy management. With UPS-grade backup (switch time <10 ms), IP66 protection, and a wide operating temperature range, the JS Series ensures high performance in any environment.
Key Features
-
Rated power: 10 / 12 / 15 kW, three-phase (380/400 V)
-
PV input: up to 1000 V, 2 MPPT / 3 strings
-
Battery compatibility: 48 V (40–60 V), up to 220 A
-
UPS-grade backup: <10 ms switch time
-
Overload capacity: 200% for 10 seconds
-
Efficiency: up to 97.5%, MPPT 99.9%
-
Enclosure: IP66 protection – indoor & outdoor use
-
Operating temperature: −40 °C to +60 °C
-
Dimensions: 430 × 660 × 295 mm
-
Weight: approx. 42 kg
-
Communication: Bluetooth, CAN, RS485, Ethernet (optional Wi-Fi / 4G)
-
Parallel operation: up to 6 units
For orders of more than 10 units, a volume discount is available upon negotiation. For a specific offer, please send an inquiry through the contact form on the website or contact us by phone.
Delivery: Please note that the delivery time for this product is a minimum of 2 weeks.
