Technical file: Pytes 48100R-C TE+
For quantities of 12 pieces, a discount can be applied upon negotiation. For a specific offer, please send an inquiry through the contact form on the website or get in touch with us by phone.

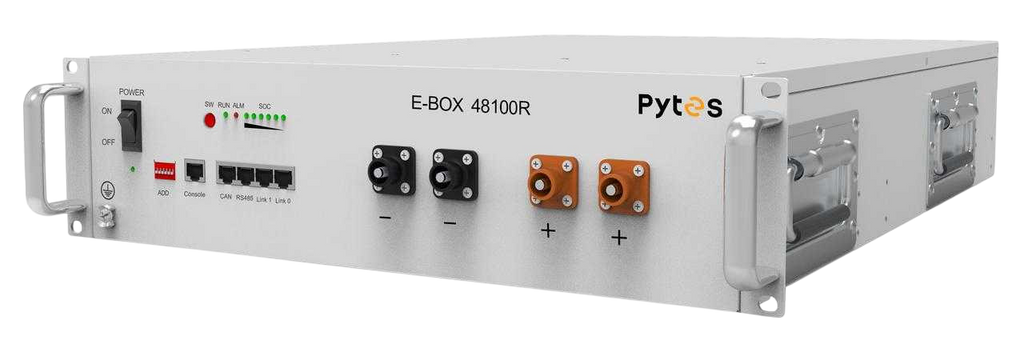

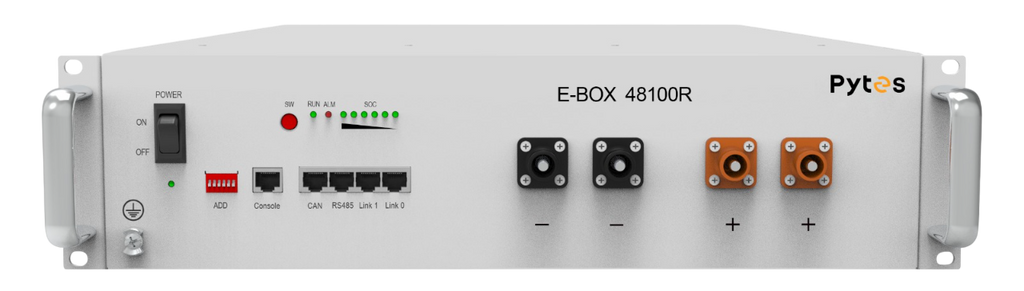

The PYTES E-Box 48100R-C TE+ is a modular 5.12 kWh / 51.2 V / 100 Ah LiFePO₄ battery, designed for residential and commercial solar energy storage. Built with Tier 1 automotive-grade LFP cells and an advanced BMS, it delivers safe, reliable, and long-lasting performance with over 6000 cycles and a 10-year warranty.
Key features
-
Usable capacity: 5.12 kWh, 51.2 V, 100 Ah
-
Cycle life: ≥ 6000 cycles @ 90% DoD
-
Chemistry: LiFePO₄ (LFP) – safe and stable
-

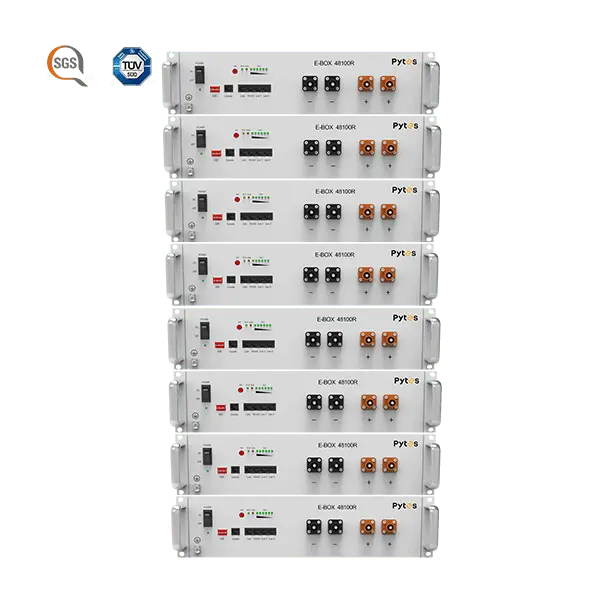

Scalable: expandable from 5.12 kWh up to 491.52 kWh
-
Round-trip efficiency: ≥ 95%
-
Communication: CAN / RS485
-
Dimensions: 440 × 620 × 117 mm (2.6U)
-
Weight: 51 kg
-
Ambient temperature: −10 °C to +50 °C
-
Certifications: UL9540, UL1973, CE, IEC62619, UN38.3
-
Warranty: 10 years
-
Includes battery-to-battery cable package
Delivery: Please note that the delivery time for this product is a minimum of 2 weeks.
