Technical file: 48100R
For quantities of 12 pieces, a discount can be applied upon negotiation. For a specific offer, please send an inquiry through the contact form on the website or get in touch with us by phone.

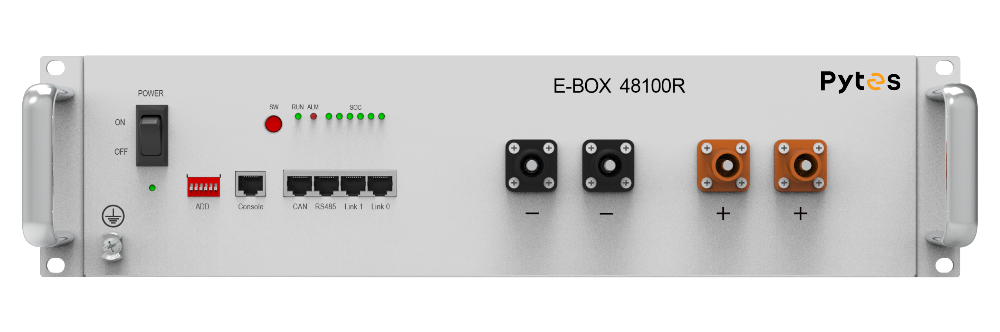

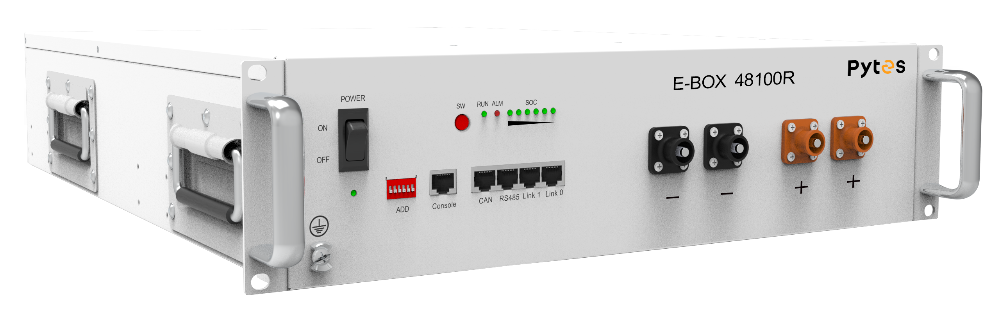

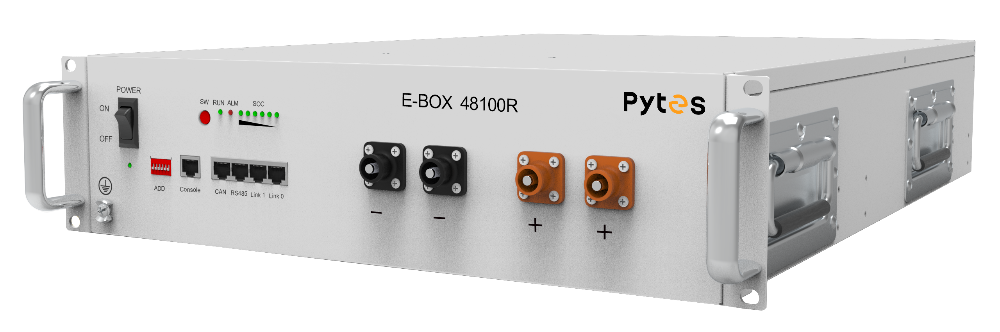

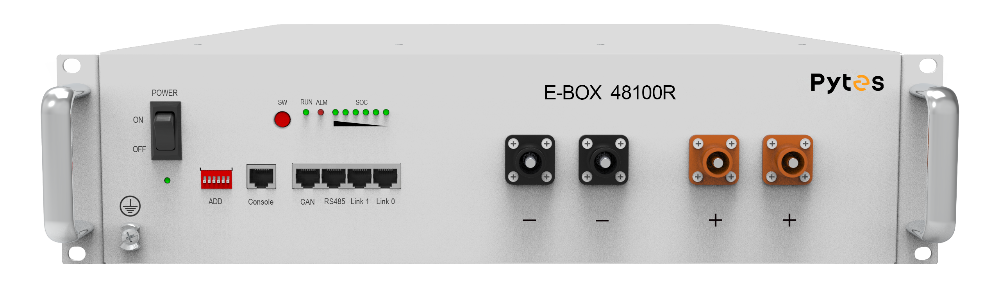

The Pytes E-Box 48100R is a 5.12 kWh, 51.2 V LiFePO₄ battery module (100 Ah) designed for residential and commercial solar energy storage systems. Built for longevity and safety, it supports modular stacking and includes a battery-to-battery cable package.
Specifications
-
Nominal voltage: 51.2 V
-
Voltage range: 47.5 – 58 V
-
Capacity: 100 Ah
-
Energy: 5.12 kWh
-
Cycle life: > 6000 cycles
-
Warranty: 10 years
-
Dimensions: 440 × 620 × 117 mm (2.6U)
-
Weight: ~ 51 kg
-
Standard charge current: 50 A
-
Max. discharge current: 100 A (180 A for 15 s)
-
Connection: battery-to-battery cable package included
