Technical file: 1u HUB

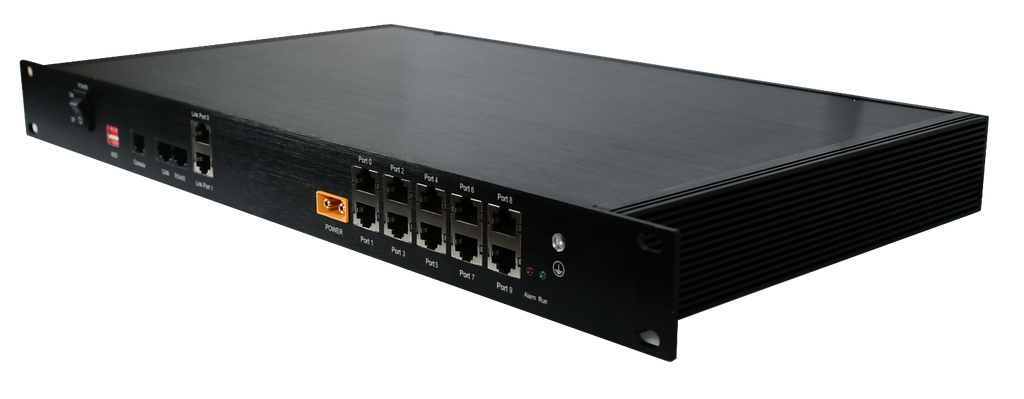

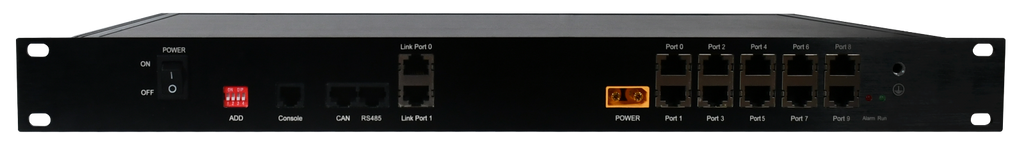

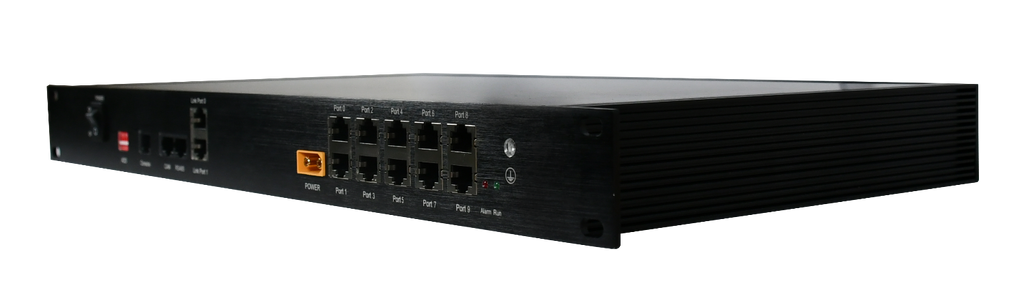

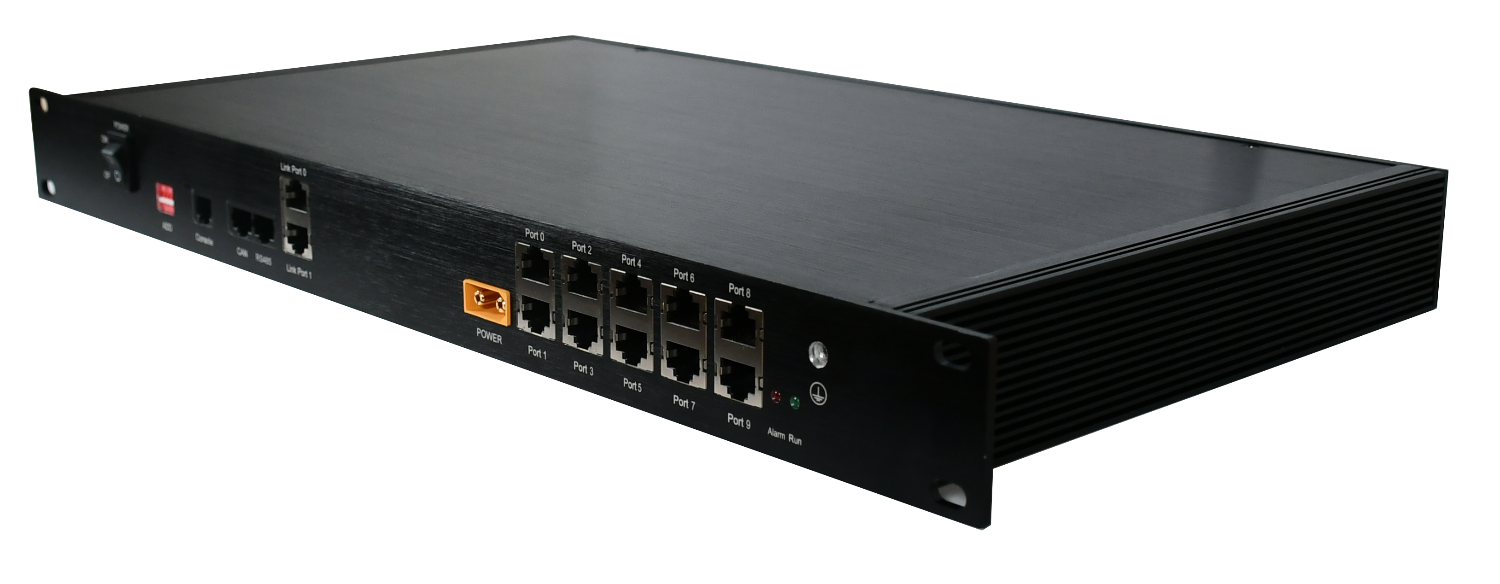

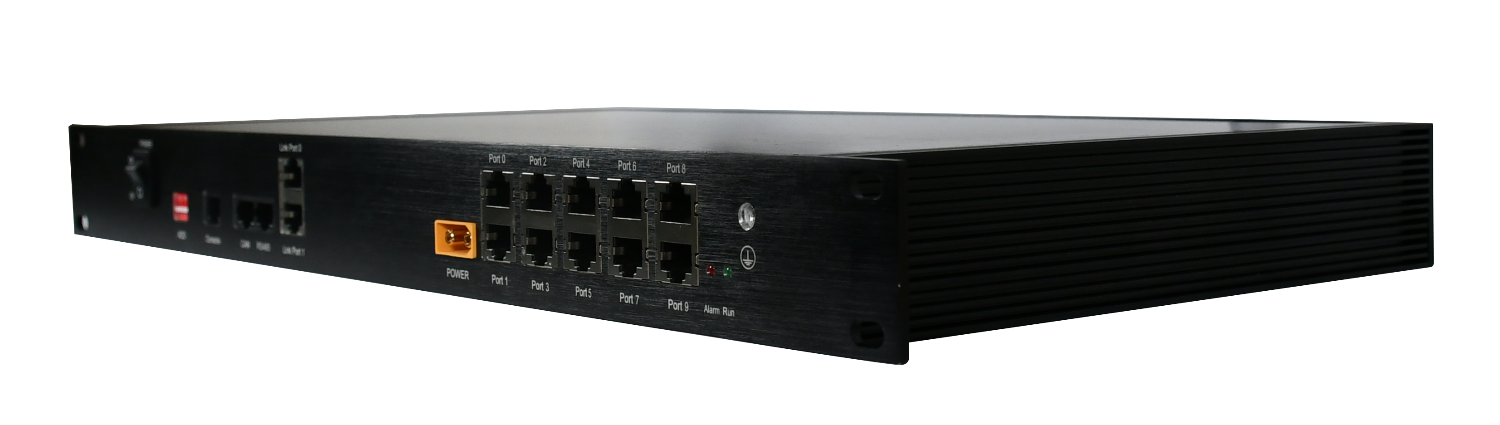

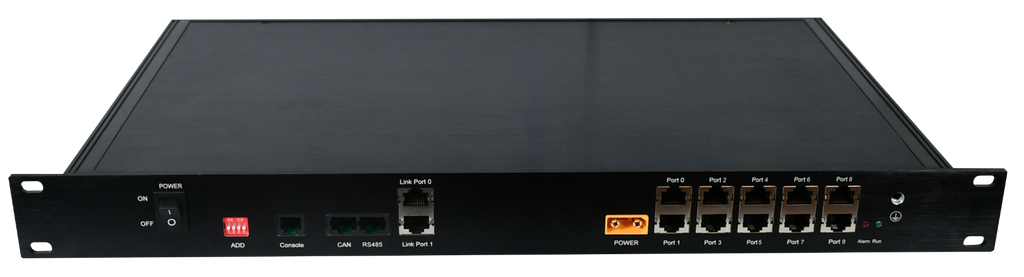

PYTES 1U Hub is designed to enable parallel communication between multiple clusters of batteries and an inverter. It is compatible exclusively with PYTES batteries and does not support batteries from other brands.
-
Nominal Operation Voltage: 48Vdc
-
Communication: CAN / RS485 / RS232
-
Power Consumption: 2W
-
Protection Rate: IP20
-
Dimensions: 482 × 250 × 45 mm
-
Weight: 2.2 kg
-
Operating Temperature: -20°C ~ +60°C
-
Scalability: up to 8 modules × 7 groups, with a maximum capacity of 286.72 kWh
