View status, system parameters, battery charge and available errors.
- Built-in communication program for UPS management, fault shutdown and remote diagnostics of the main functions.
- Communication via SNMP/Internet/network adapter.
- Optional slot for network configuration.
- WEB/SNMP boards and relay interface for isolated contacts in industrial control panels or remote alarm panels.
- Automatic and manual bypass (optional), to ensure uninterrupted power supply in case of fault, overload, overheating or scheduled servicing.
- Maintenance bypass switch (MTBS).
• Single-phase conventional UPS system
• Power from 1 to 10 kVA
• Power factor 0.9 for 1000 to 3000, and 1 for 5000 to 10000
• VFI-111 on-line double conversion
• User-friendly display

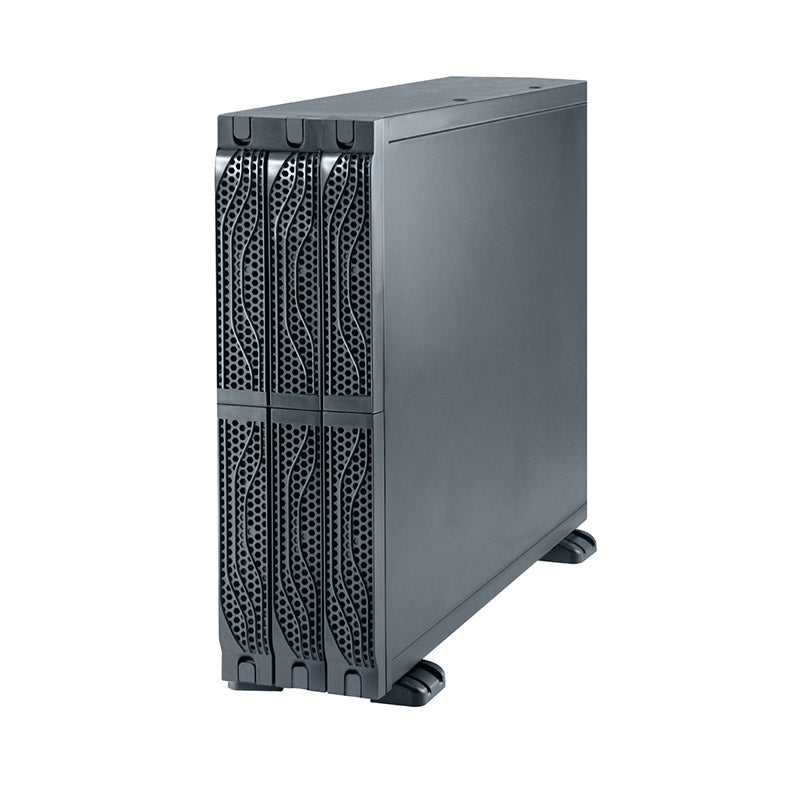

• External battery cabinet that allows more backup time
• Intelligent battery management
• Automatic (standard) or manual (optional) bypass
• Battery can be easily replaced by the user
