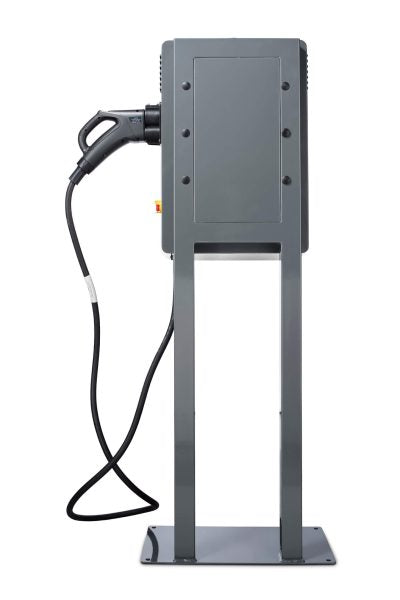

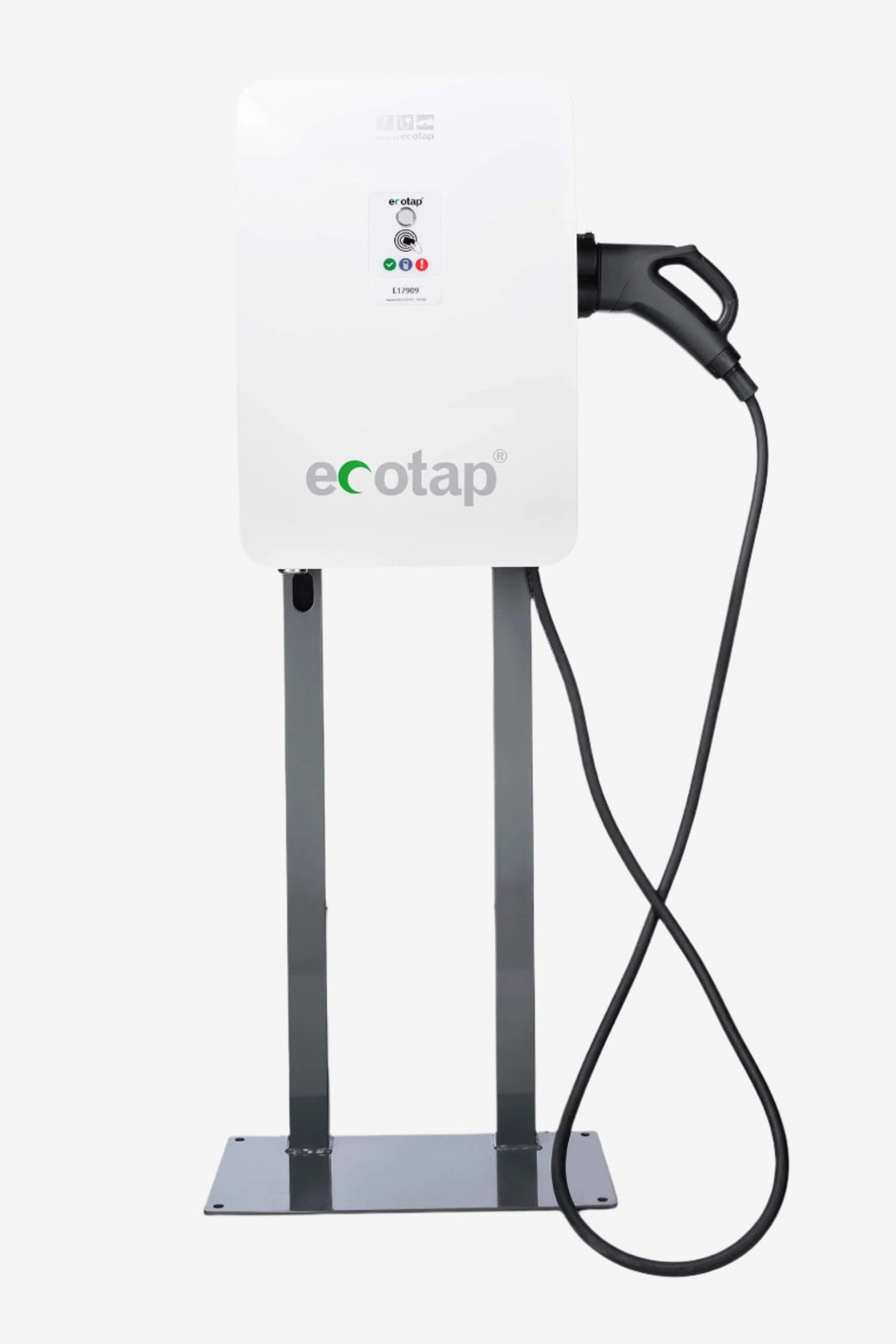

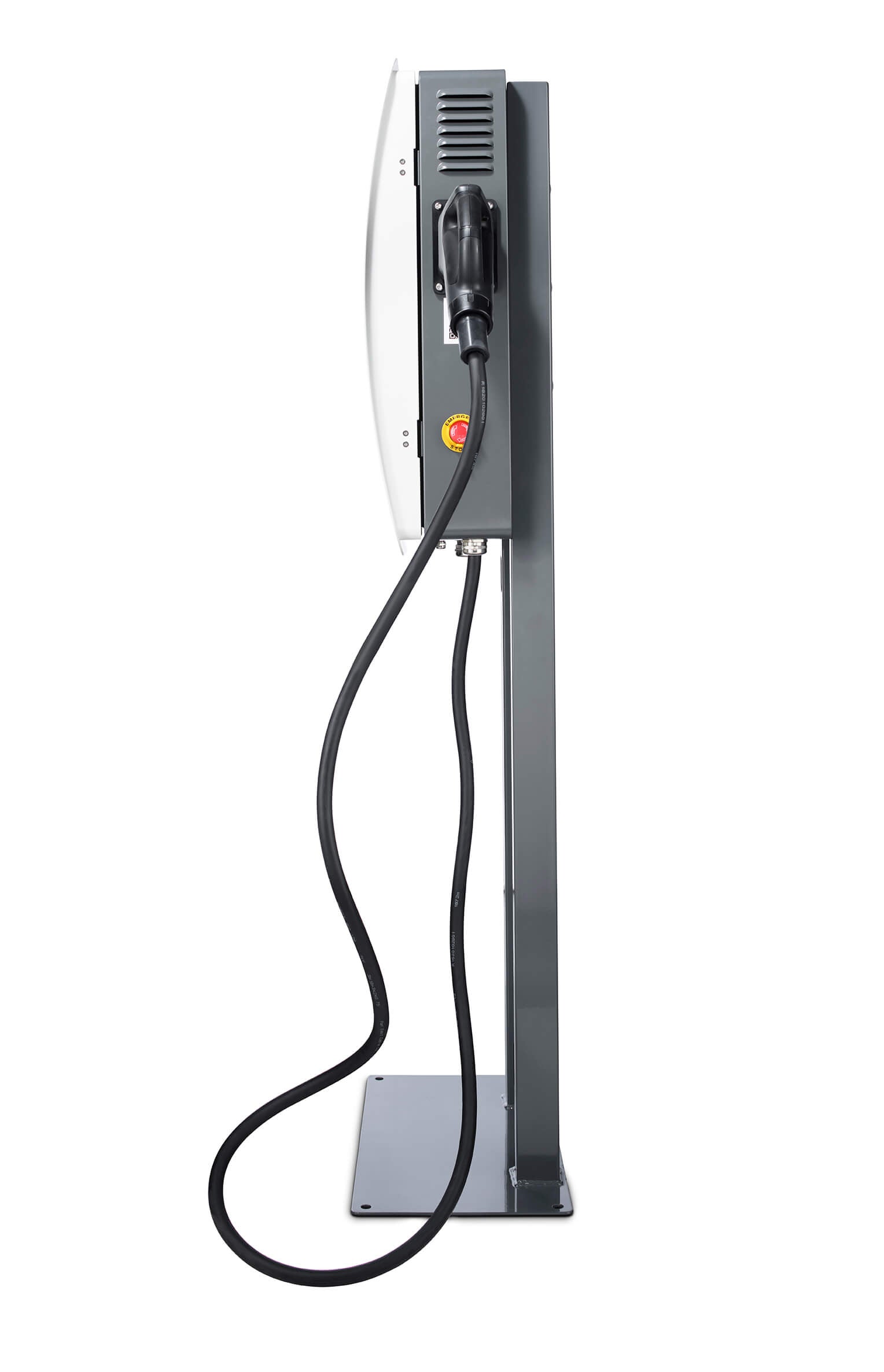

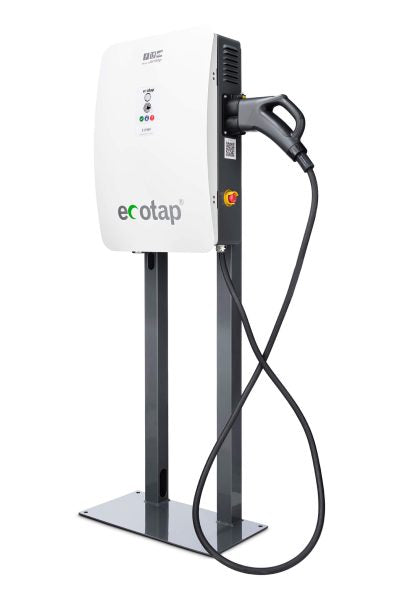

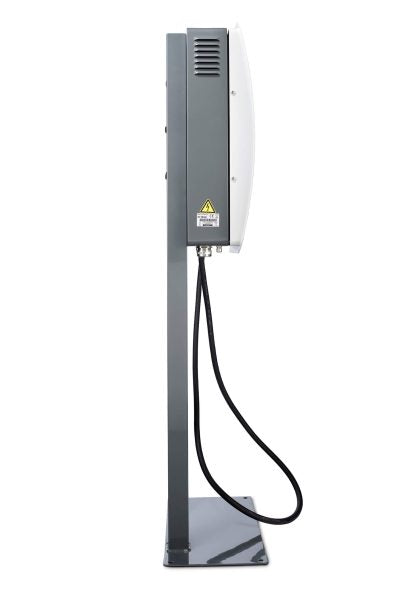

Manufacturer: Ecotap a brand of Legrand
Model: DC30
Power: 1 - 30 kW
Nominal Voltage: 3 x 400VAC + N ± 10%
Connection to the EV: Cabel with connector CCS
Authorization Method: RFID, option to connect to a mobile app
Communication Modules: GSM 2G/3G/4G, GPRS, RFID
Electrical Protection: Class 1 IEC 61140
Certificates: IEC 61851-1, IEC TS 61439-7 (AEVCS), IEC 61851-23, IEC 62477-1, IEC 61439-1
Installation Type: On a wall or on a stand
Operating Temperature: -25°C / +50°C
Protection Rating: IP 54 (IEC 60529), IK 10 (EN 62262) Plugged in or not
Dimensions (HxWxD): 710 mm x 480 mm x 225 mm
Color: Body: Gray / Finish: White
Weight: 57 kg
Origin: Netherlands
Warranty: 12 months
