Manufacturer: Ecotap aLegrand
Model: DC120
Power: 120kW
Nominal Voltage: 3 x 400VAC ± 10%

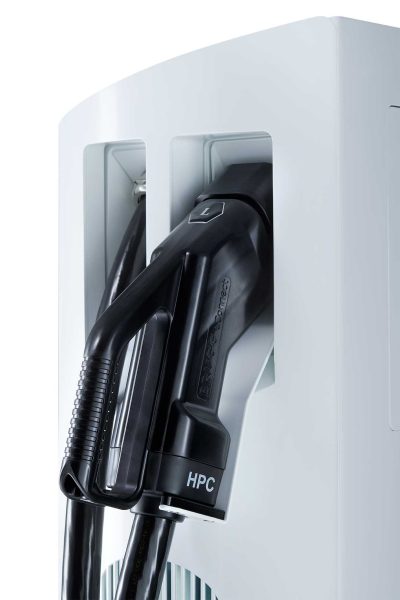

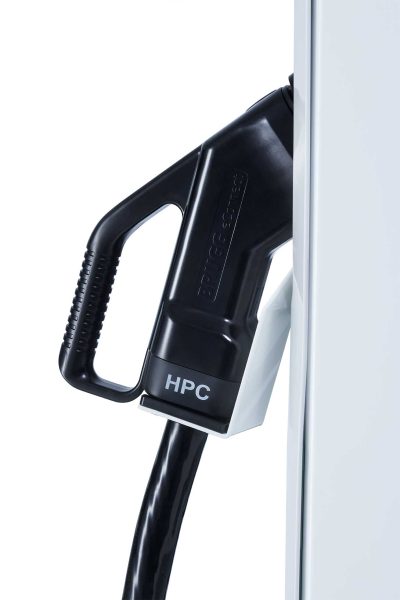

Connection to the EV: Cable with connector CCS 2

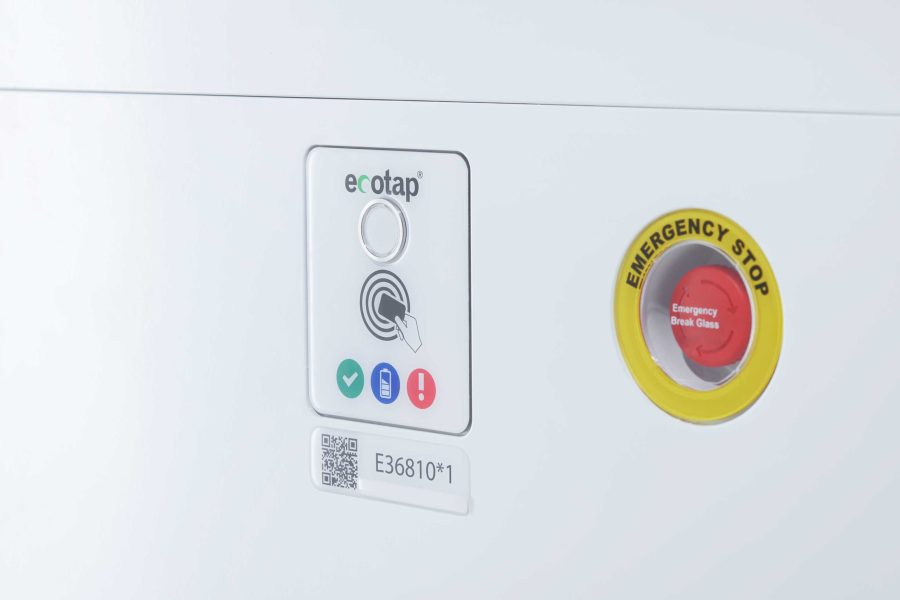

Authorization Method: RFID, option to connect to a mobile app
Communication Modules: GSM 2G/3G/4G, GPRS, RFID
Electrical Protection: Class 1 IEC 61140
Certificates: IEC 61851-1, IEC TS 61439-7 (AEVCS), IEC 61851-23, IEC 62477-1, IEC 61439-1
Installation Type: For installation in outdoor or indoor areas
Operating Temperature: -25°C / +50°C
Protection Rating: IP 54 (IEC 60529), IK 10 (EN 62262)
Dimensions (HxWxD): 1736 mm x 825 mm x 419 mm
Color: White
Weight: 285 kg
Origin: Netherlands
Warranty: 12 months
