Technical file: Pytes HV48100 BMU
For quantities of 12 pieces, a discount can be applied upon negotiation. For a specific offer, please send an inquiry through the contact form on the website or get in touch with us by phone.

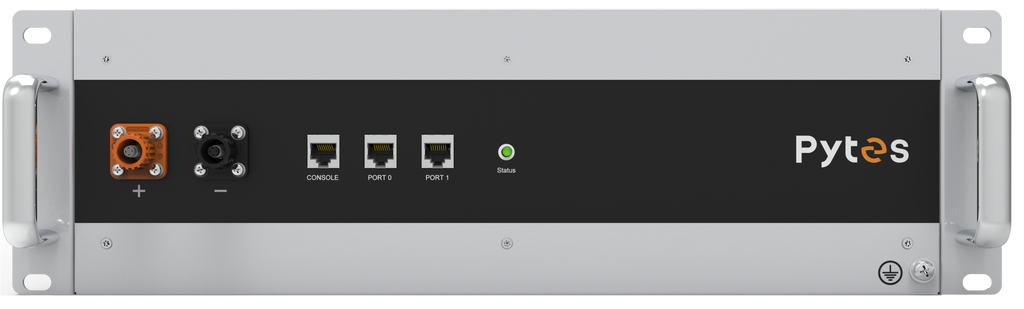

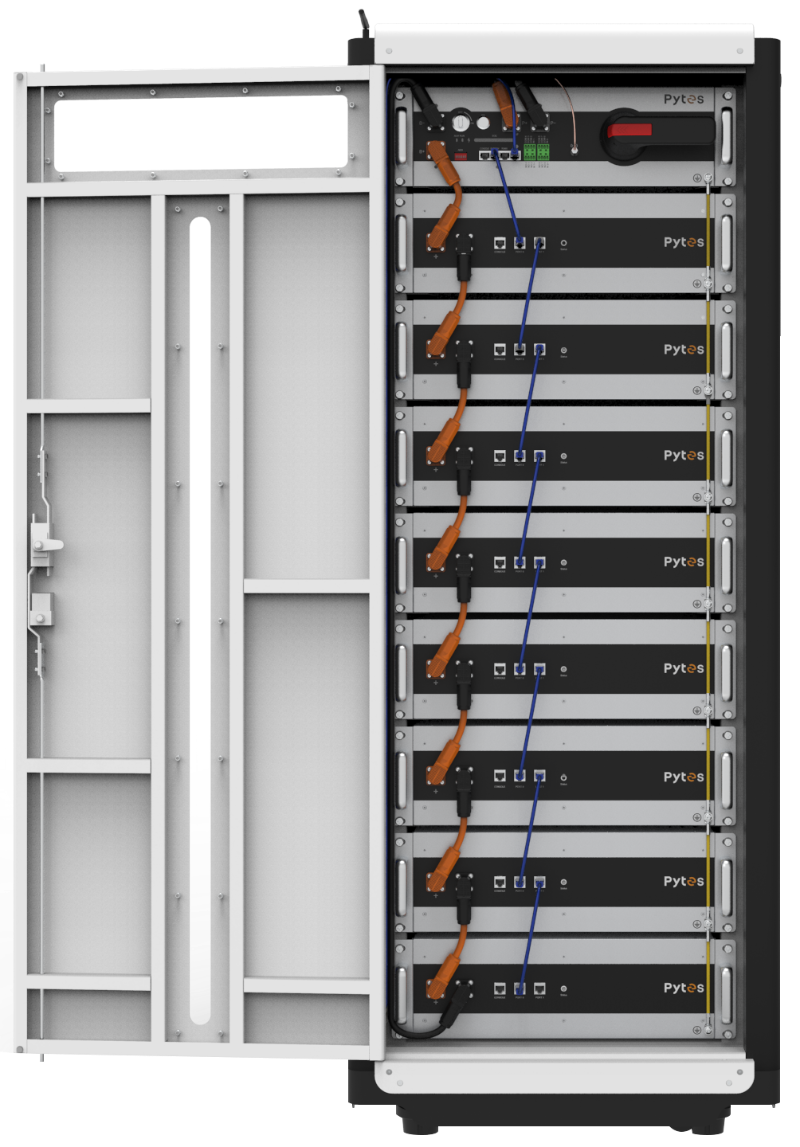

The Pytes HV48100 BMU is a modular high-voltage LiFePO₄ battery pack, designed for residential and commercial energy storage systems. Each BMU provides 5.12 kWh capacity at 51.2 V and can be combined in series with a BCU controller to build systems ranging from 25.6 kWh to 76.8 kWh. With over 6000 cycles, advanced communication, and reliable safety features, the HV48100 ensures long-lasting performance.
Specifications
-
Cell type: LiFePO₄ (LFP)
-
Nominal energy: 5.12 kWh
-
Nominal voltage: 51.2 V
-
Nominal capacity: 100 Ah
-
Voltage range: 45.5–58 V
-
Continuous charge/discharge current: 50 A
-
Depth of discharge: 90%
-
Cycle life: ≥ 6000 cycles
-
Round-trip efficiency: > 95%
-
Dimensions: 484 × 530 × 140 mm (19.1 × 20.9 × 5.5 in)
-
Weight: 43 kg / 94.8 lbs
-
Operating temperature: Charge 0–45 °C; Discharge −10–50 °C
-
Storage temperature: −20–50 °C (1 month), −10–40 °C (1–3 months), 0–30 °C (3–12 months)
-
Communication: CAN, RS485
-
Certifications: CE, IEC62619, UL1973, UL9540, UL9540A, UN38.3
-
Warranty: 10 years
