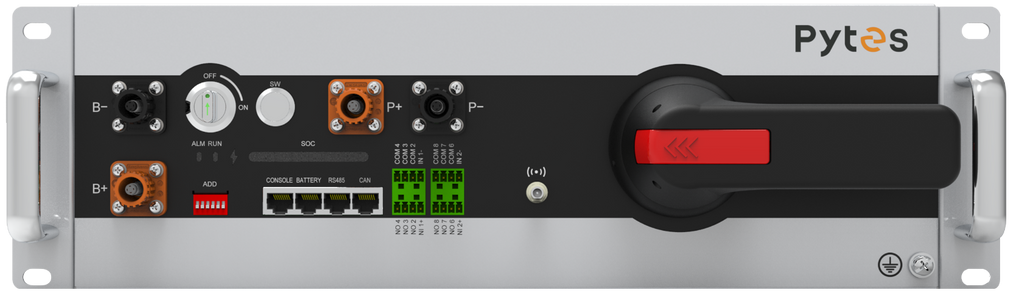

Technical file: Pytes HV48100 BCU
The Pytes HV48100 BCU is the main controller for managing and protecting HV48100 high-voltage battery systems. It supports 5 to 15 BMU modules in series, offering flexible system capacities from 25.6 kWh to 76.8 kWh. With multiple communication interfaces and remote monitoring, the BCU ensures reliable and intelligent operation.
Specifications
-
Working voltage range: 200–870 V
-
Supported modules: 5–15 × HV48100 BMU in series
-
Self-consumption power: 7.56 W
-
Dimensions: 484 × 510 × 140 mm
-
Weight: 13.3 kg
-
Communication: CAN, RS485, Dry Contact, WiFi
-
Certifications: CE, IEC62619, UL1973, UL9540, UN38.3
-
Warranty: 10 years
