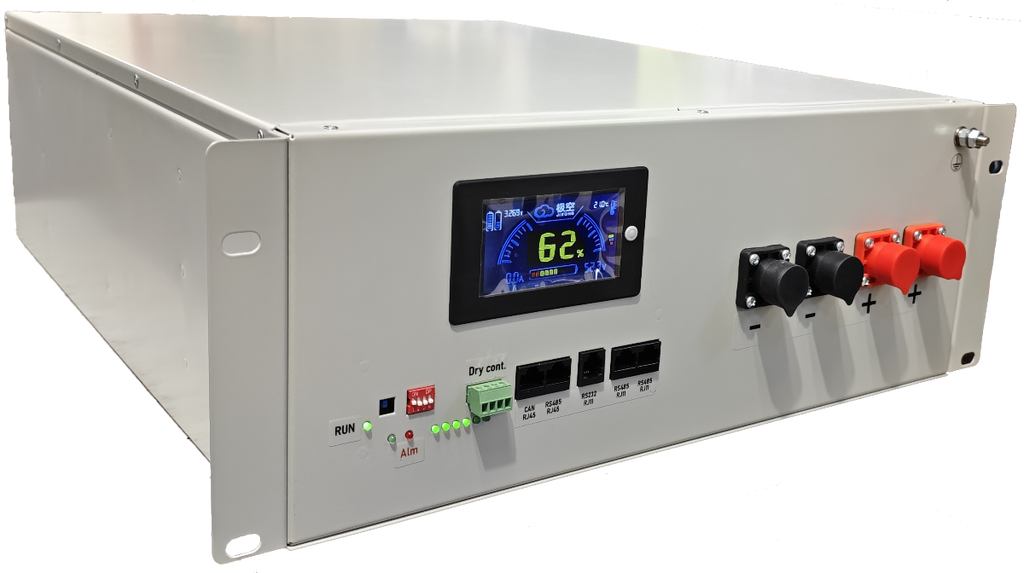

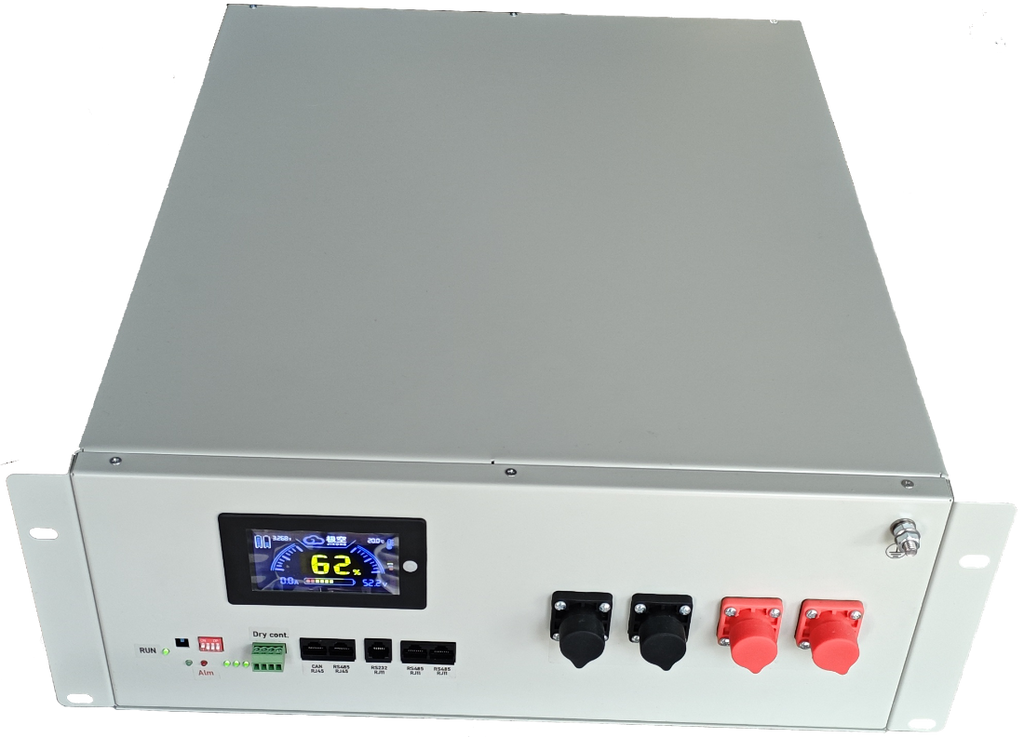

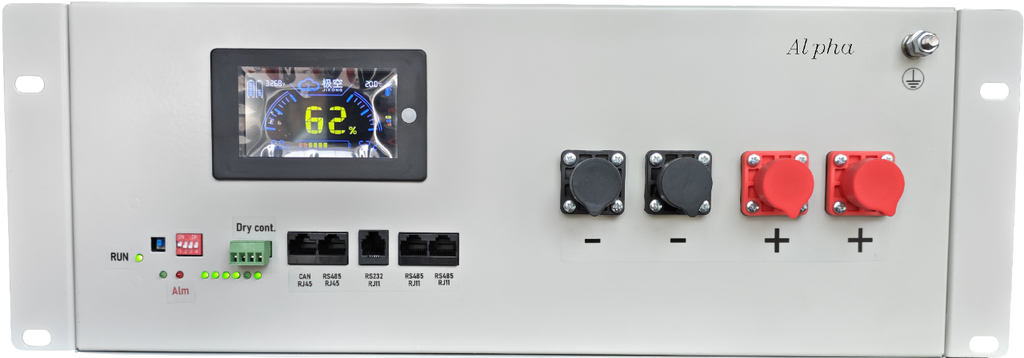

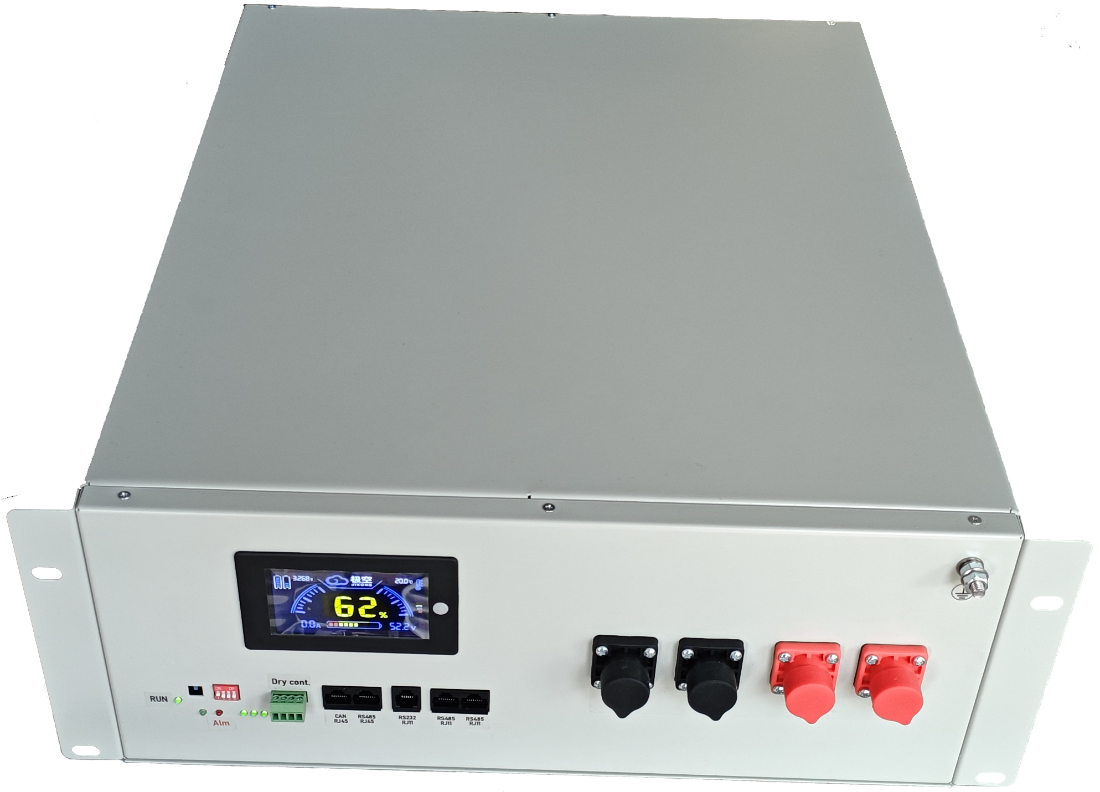

ALPHA – 5.12 kWh LiFePO₄ Battery

Technical file: ALPHA

The ALPHA battery is a high-performance LiFePO₄ module designed for residential and commercial solar energy systems. With intelligent monitoring, wide temperature tolerance, and high scalability, it provides reliable and safe energy storage for both on-grid and off-grid applications.

Key Features

• Remote monitoring & smart diagnostics

• High charge/discharge capability

• Wide operating temperature range

• Long cycle life & high durability

• Scalable modular design

Specifications

• Nominal voltage: 51.2 V

• Voltage range: 47.5 – 57.6 V

• Nominal capacity: 100 Ah

• Nominal energy: 5.12 kWh

• Recommended charge/discharge current: 75 A

• Max charge/discharge current: 100 A

• Chemistry: LiFePO₄ (LFP)

• Communication: RS485, CAN, Bluetooth

• Power terminal: Amphenol SurLok Plus 8.0 mm

• Cycle life: ≥ 6000 cycles

• Design life: ≥ 10 years

• Scalability: up to 16 units (81.92 kWh per group)

• Operating temperature:

  • Charge: 0 °C ~ 45 °C

  • Discharge: −10 °C ~ 50 °C

  • Storage: −20 °C ~ 50 °C

• Dimensions (L×W×H): 530 × 420 × 165 mm

• Weight: 48 kg
