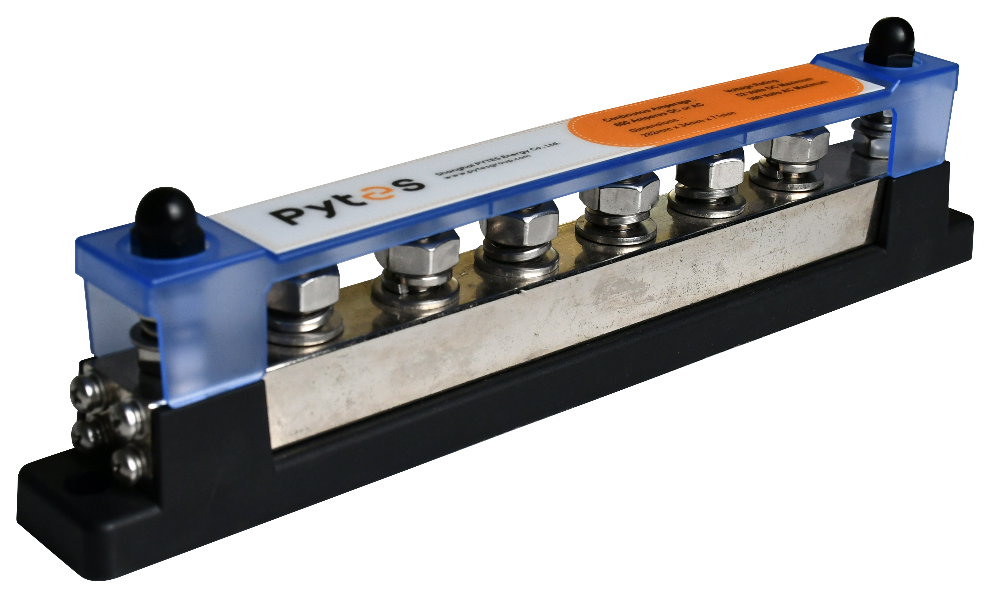

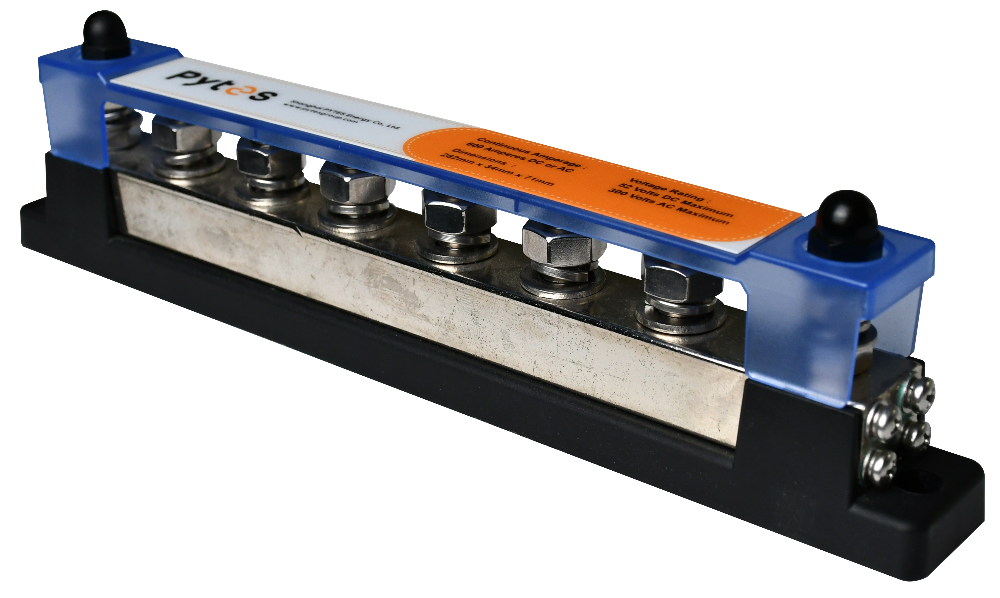

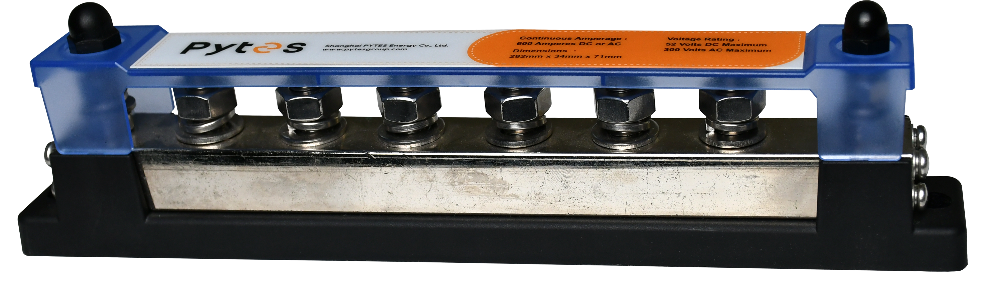

Technical file: Busbar 600A
The 600A busbar is a robust solution for high-current distribution in solar and energy storage systems. With a tin-plated copper strip and stainless-steel hardware, it provides excellent conductivity, safety, and durability.
Key features
-
Maximum current: 600 A
-
Voltage rating: 52 VDC / 300 VAC
-
Terminals: 6 × M10 studs (stainless steel)
-
Busbar strip: Tin-plated copper (20 × 25 mm)
-
Dimensions (with cover): 282 × 34 × 71 mm
-
Weight: 1.48 kg
-
Terminal height: 28 mm
-
Base material: ABS (black)
-
Cover material: Clear polycarbonate
-
Recommended torque: 7 N·m
-
Includes protective cover for added safety
