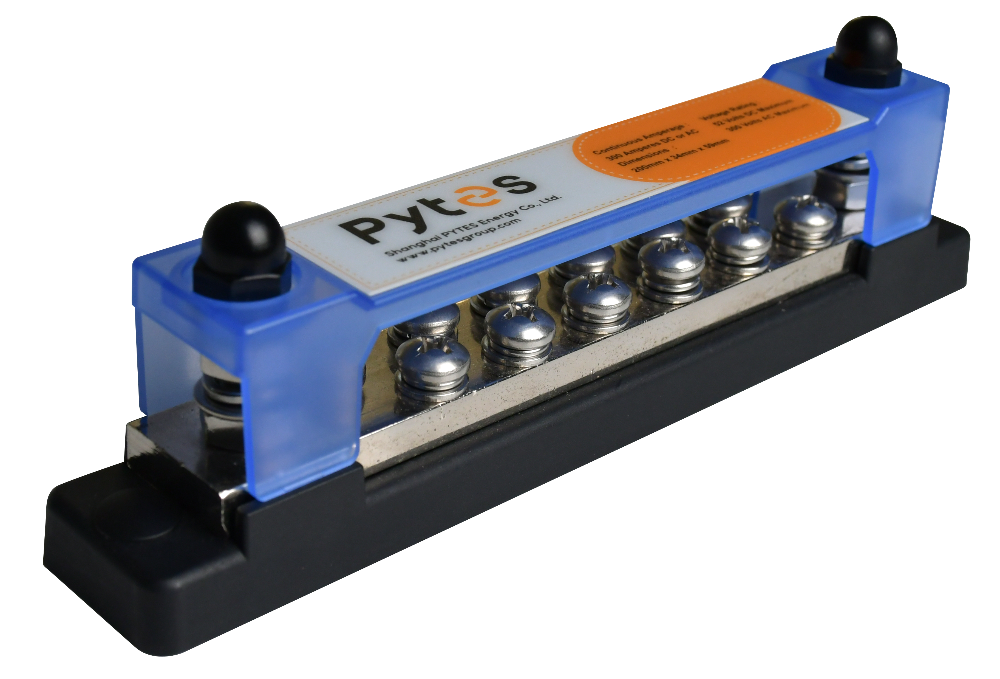

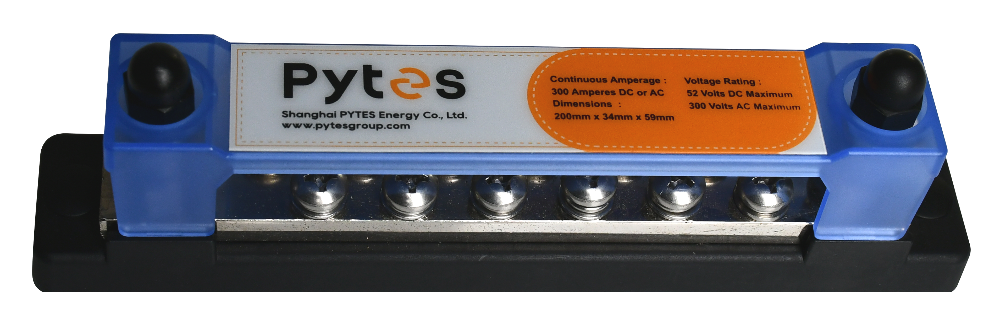

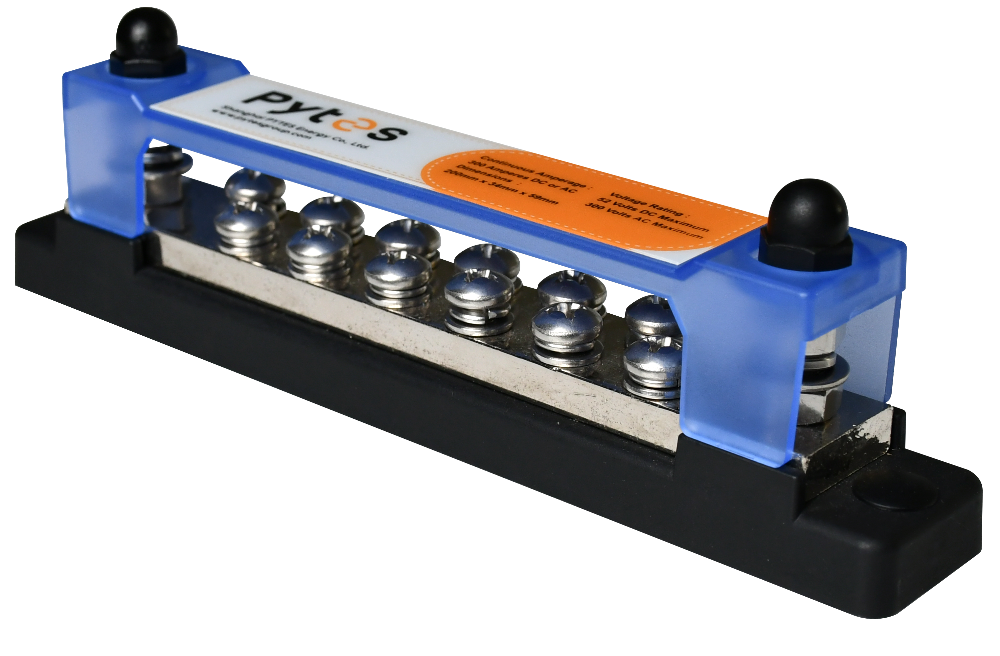

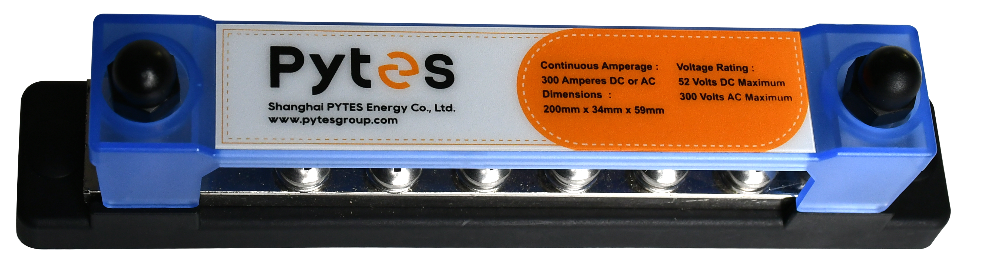

Technical file: Busbar 300A
The 300A busbar provides a reliable and safe way to distribute high currents in solar and energy storage systems. Built with tin-plated copper and stainless-steel hardware, it ensures stable performance and long-lasting durability.
Key features
-
Maximum current: 300 A
-
Voltage rating: 52 VDC / 300 VAC
-
Terminals: 12 × M6 screws (stainless steel)
-
Busbar strip: Tin-plated copper (8 × 25 mm)
-
Dimensions (with cover): 200 × 34 × 59 mm
-
Weight: 0.48 kg
-
Terminal height: 30 mm
-
Base material: ABS (black)
-
Cover material: Clear polycarbonate
-
Recommended torque: 7 N·m
-
Includes protective cover for safety
