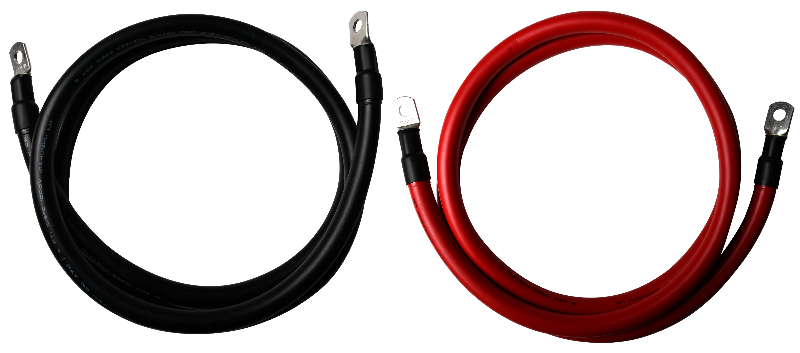

Technical file: 00AWG Power Cable – Busbar to Inverter (2 m)
High-quality 00AWG positive / negative power cable designed for connecting busbars to inverters. Made from tin-plated copper with PVC insulation, it ensures stable, safe, and efficient current transfer in solar energy storage systems.
Key features
-
Length: 2 m
-
Color: Red (positive cable) / Black (negative cable)
-
Conductor: Tin-plated copper, stranded
-
Cross-sectional area: 67.4 mm²
-
Current rating: 200 A
-
Voltage rating: 1000 V
-
Temperature rating: up to 105 °C
-
Cable type: UL10269-00AWG, compliant with UL758 & UL1581
-
Cable diameter: 17 mm; conductor diameter: 10.8 mm
-
Terminals: SC70-10 (M10) copper lugs
-
Reliable, safe connection between busbar and inverter
