Technical file: 0000AWG power cable
Heavy-duty 0000AWG power cable designed for connecting busbars to inverters in high-power solar and storage systems. Built with tin-plated copper and PVC insulation, it ensures secure, efficient current transfer with high load capacity.
Key features
-
Length: 2 m
-

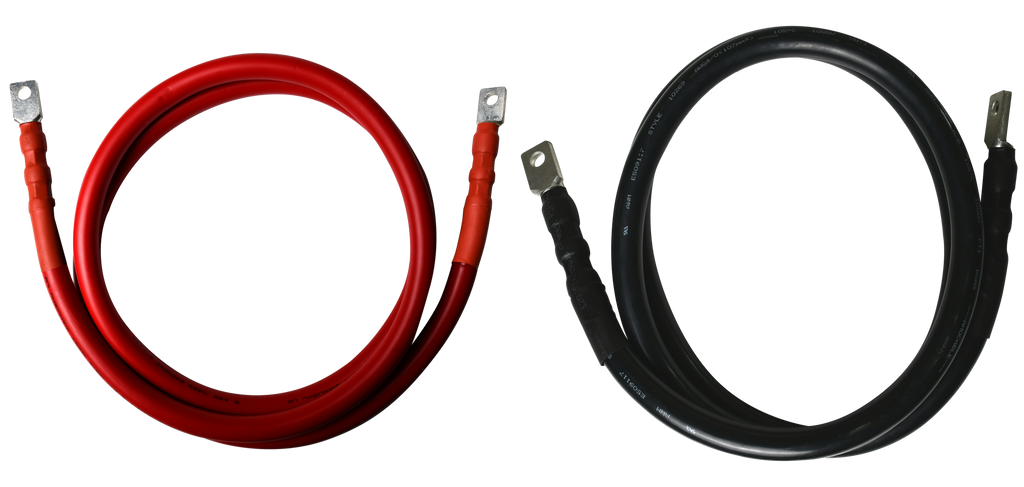

Color: Red (positive cable) / Black (negative cable)
-
Conductor: Tin-plated copper, stranded
-
Cross-sectional area: 107 mm²
-
Current rating: 300 A
-
Voltage rating: 1000 V
-
Temperature rating: up to 105 °C
-
Cable type: UL10269-0000AWG, compliant with UL758 & UL1581
-
Cable diameter: 19.5 mm; conductor diameter: 13.8 mm
-
Terminals: DTF120 (M10) copper lugs
-
Reliable, safe connection between busbar and inverter
