Description

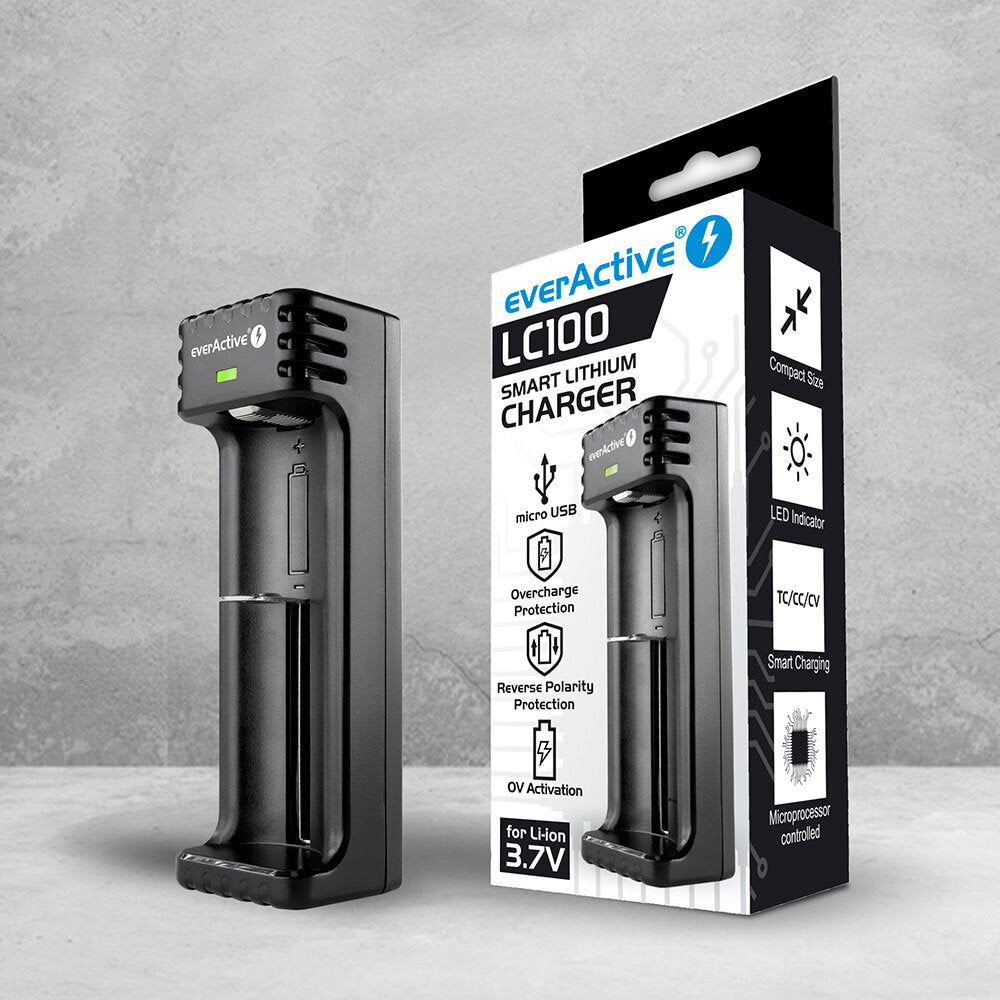

Reliable microprocessor-controlled charger for Li-ion (3.6–3.7V & 3.8–3.85V), LiFePO4, and Ni-MH batteries. Features a 5V/1A power bank function and adjustable charging current (500 / 1000 mA) with 4 selectable charging programs. Supports reactivation of deeply discharged and 0V cells.
-
Supported battery types: Li-ion 3.6–3.7V (protected & unprotected), LiFePO4, Ni-MH
-

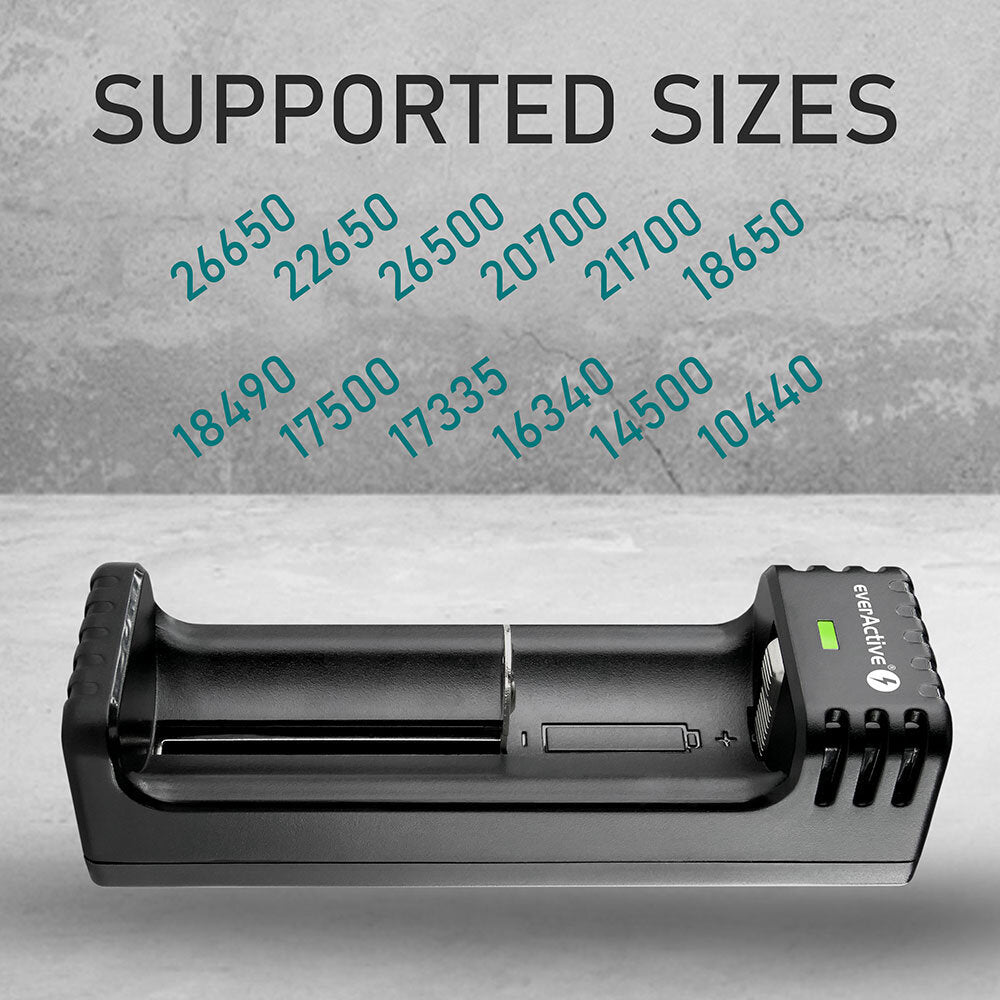

Supported sizes: R6 AA, R03 AAA, R14 C, 10440, 14500, 14650, 17500, 17670, 18350, 18500, 18650, 20700, 21700, 22650, 25500, 26500, 26650, 16340 / R-CR123E
-

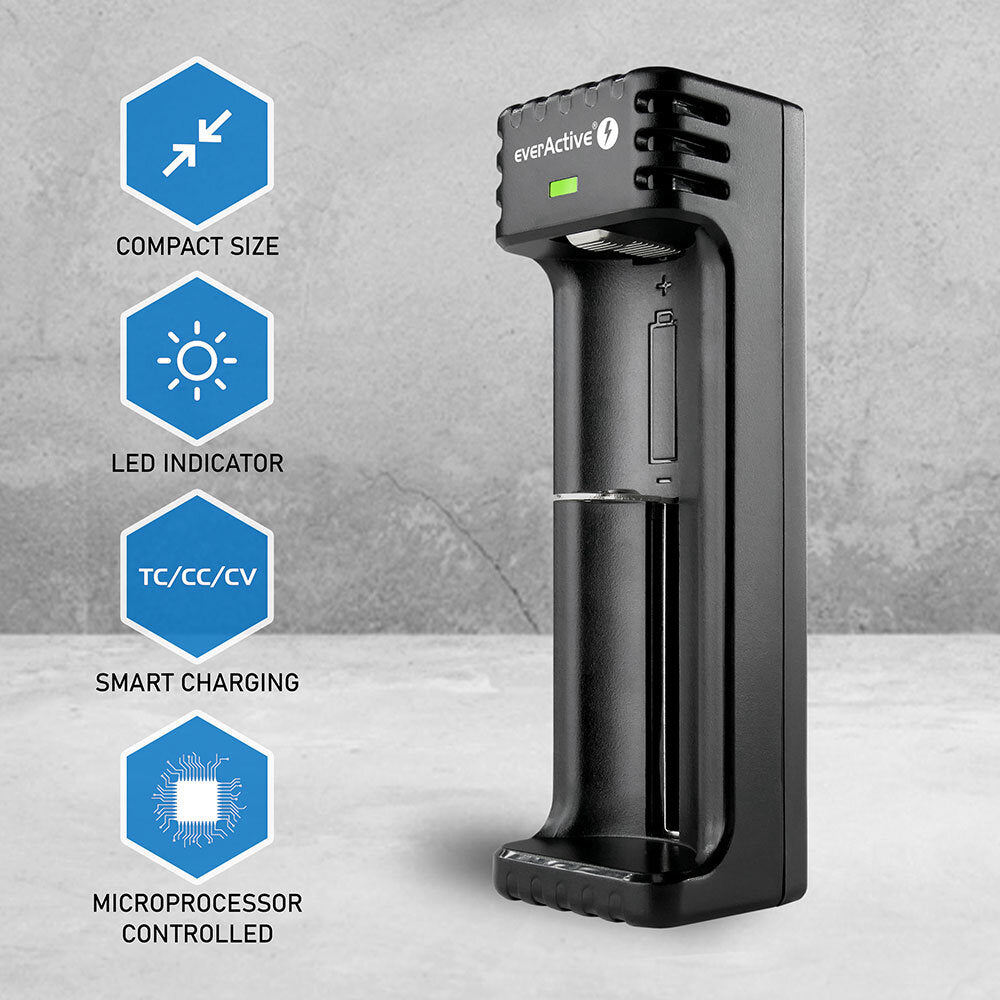

Charging method: Processor-controlled TC/CC/CV for Li-ion, CC / -ΔV for Ni-MH
-
Charging current: 1000 mA ±50 mA
-
Termination voltage: Li-ion 4.2V ±0.05V
-
Termination current (Li-ion): 100 mA
-
Input voltage: 5V DC / 1A (Micro USB, cable included, power adapter not included)
-

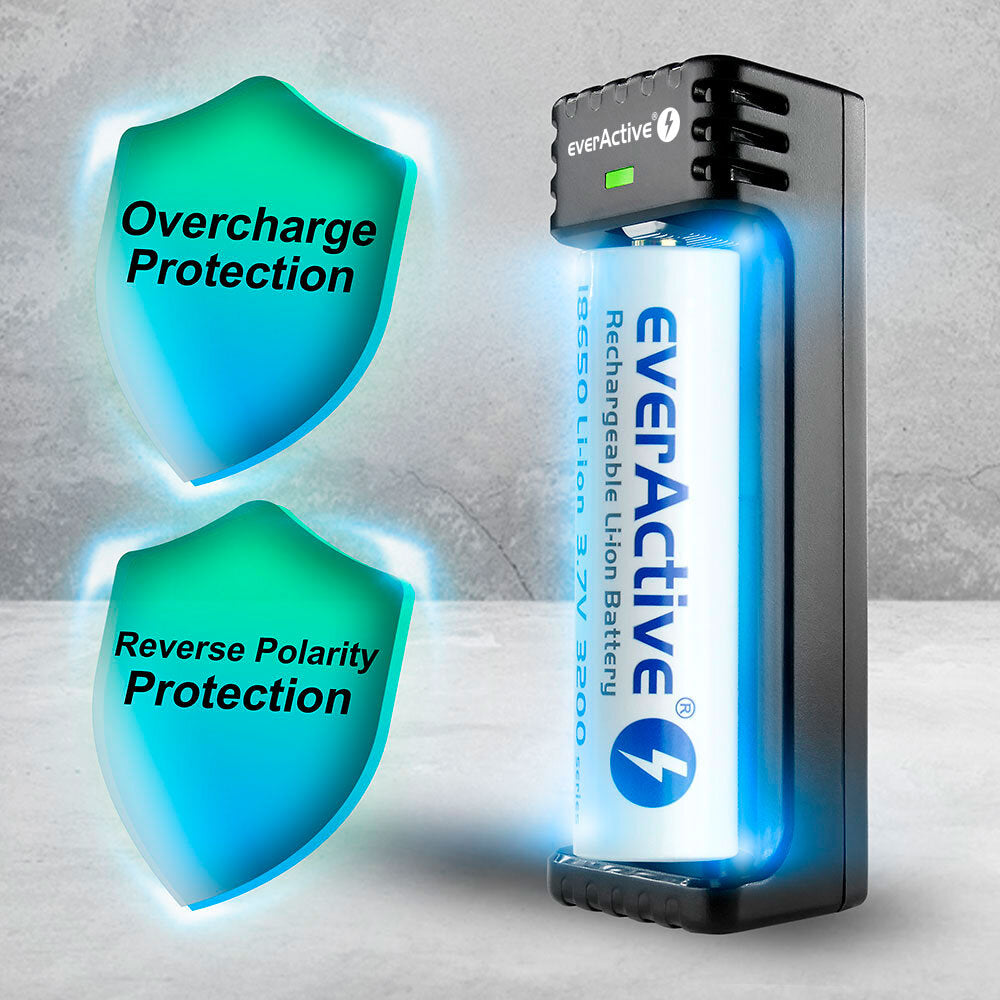

Security: Short-circuit, reverse polarity, overcharge, overheating protection
-
Indicators: 2-color LED status indicator
-
Operating mode: Charge
-
Dimensions (W×D×H): 100 × 32 × 28.5 mm
-
Weight: 31 g
-
Contents: LC-100 charger, 0.5 m Micro USB cable
-
Warranty: 24 months
-
Certifications: CE
