Description

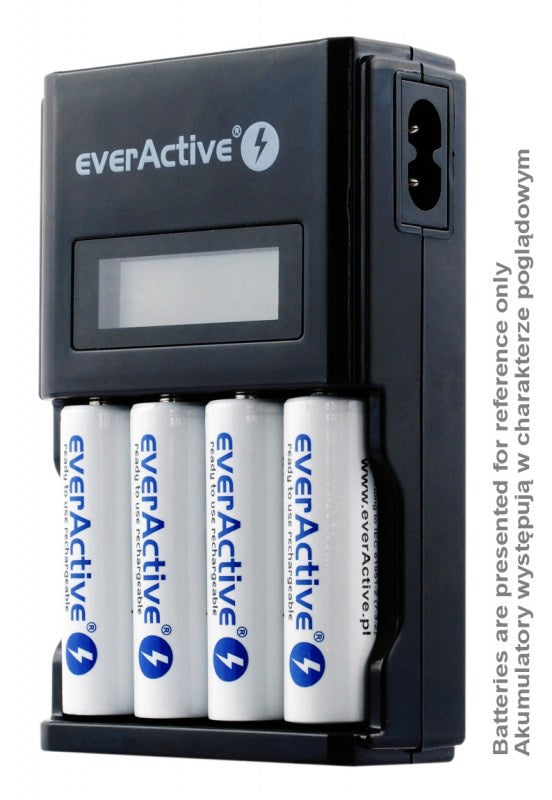

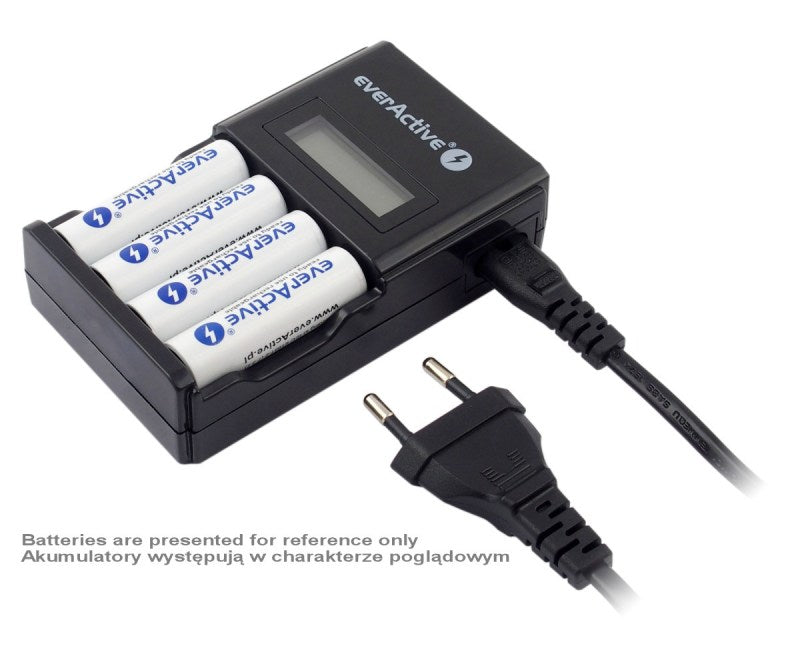

Microprocessor-controlled charger with 4 fully independent channels. Can charge 1–4 Ni-MH cells of any size or capacity (AA/R6 or AAA/R03) in any configuration. Ensures safety and full battery performance with automatic shutdown when charging is complete. Features a multi-segment backlit LCD display for easy monitoring.
-
Supported battery sizes: AA/R6, AAA/R03 (1–4 pcs)
-
Input voltage: AC 100–240V, 50–60Hz
-
Charging method: Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
-
Charging current:
-
AA: 1 pc – 1800 mA, 2 pcs – 900 mA, 3–4 pcs – 450 mA
-
AAA: 1 pc – 900 mA, 2 pcs – 450 mA, 3–4 pcs – 225 mA
-
-
Safety features: ∆V control, thermal protection, overload/short circuit protection, detection of damaged or alkaline cells
-

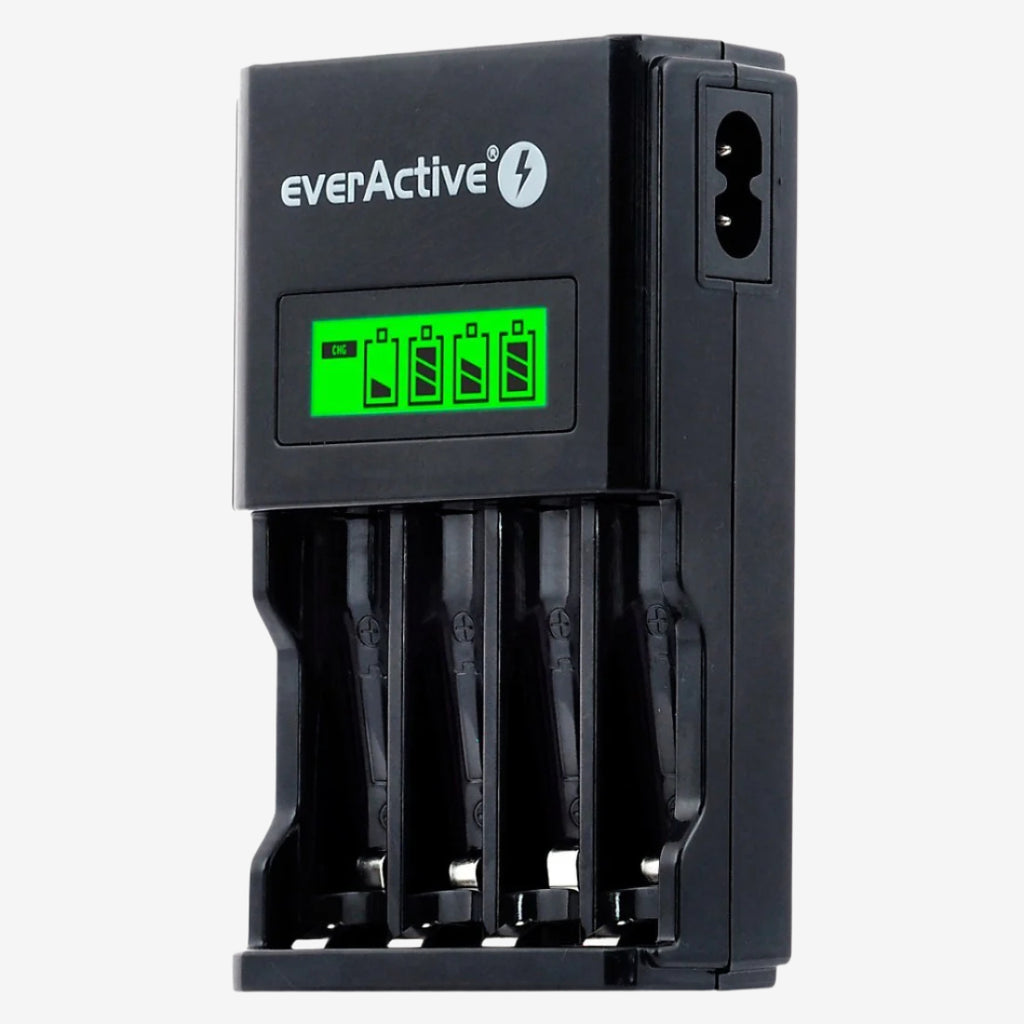

LCD display: Large, green backlight, graphical charge level
-
Dimensions (W×D×H): 68 × 110 × 29 mm
-
Approx. charging times:
-
1×AA 2000 mAh ~ 1.2h
-
3–4×AA 2000 mAh ~ 5h
-
1×AAA 800 mAh ~ 1h
-
3–4×AAA 800 mAh ~ 4.2h
-
-

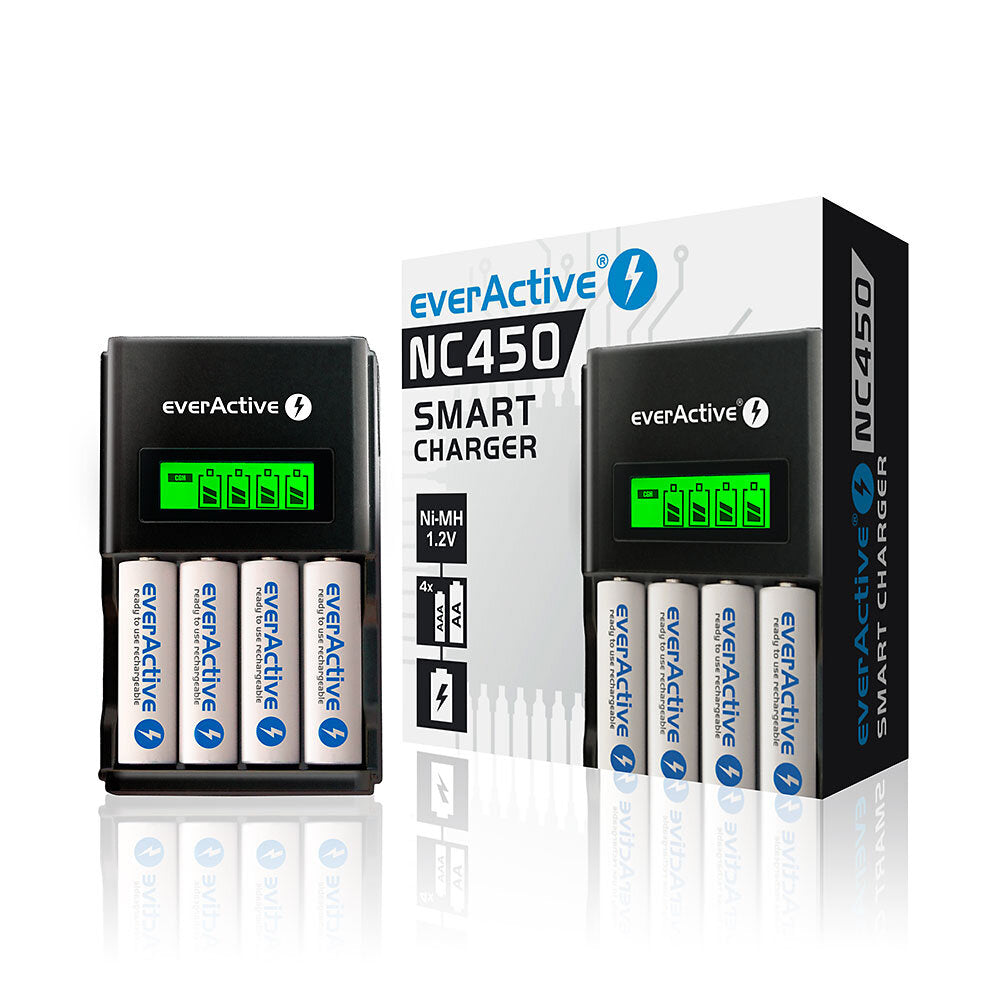

Set includes: NC-450 charger, 1 m power cable, user manual
-
Warranty: 24 months
-
Certifications: CE
Technical specifications
Datasheet
