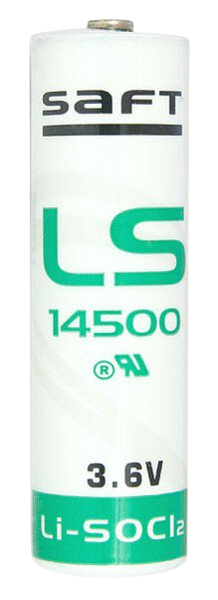

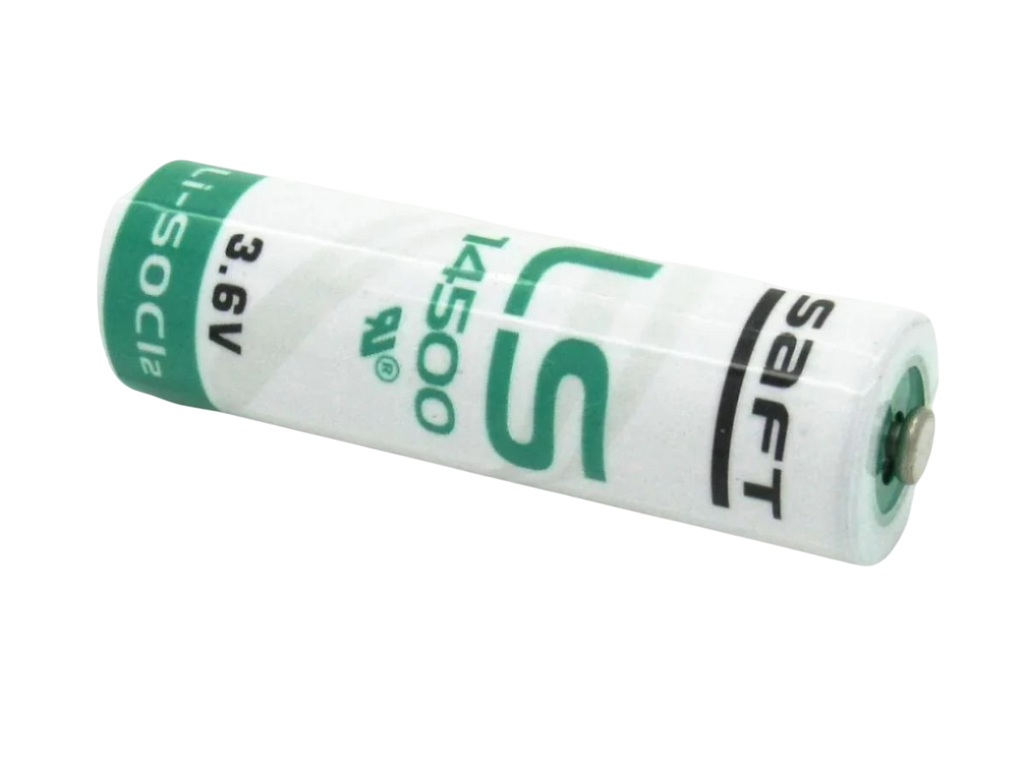

The Saft LS 14500 is a primary lithium-thionyl chloride (Li-SOCl₂) battery, providing long-lasting and reliable power for industrial, metering, and security applications. As a non-rechargeable cell, it offers high energy density, stable voltage, and a wide operating temperature range.
Technical specifications:
-
Size: AA / R6
-
Nominal voltage: 3.6 V (3.67 V open circuit)
-
Capacity: 2.6 Ah (at 2 mA to 2.0 V @ 20°C)
-
Maximum continuous current: up to 70 mA
-
Max pulse current: up to 400 mA (1 sec) / 250 mA (0.1 s every 2 min)
-
Operating temperature range: -60°C to +85°C
-
Dimensions: Ø14.62 × 50.28 mm
-
Weight: ~16.7–17 g
-
Lithium content: ~0.7 g
Compatible replacements:
-
XENO Energy: XL-060F (2.4)
-
Tadiran: TL-2100 (2.1), TL-4903 (2.4), TL-5104 (2.1), TL-5903 (2.4)
-
Sonnenschein: SL-360 (2.3), SL-760 (2.1)
-
Toshiba: ER6V (2.0), ER6LV (1.8)
-
Maxell: ER6 (2.0), ER6C (1.8)
-
Eagle Picher: LTC-17C (1.7)
-
Tekcell: SB-AA11 (2.4)
-
EEMB/GMB: ER14505 (2.4), ER14505S (1.6)
