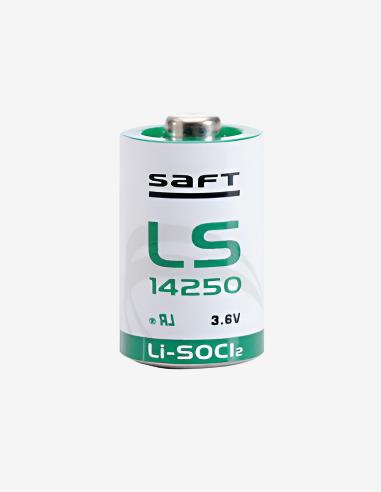

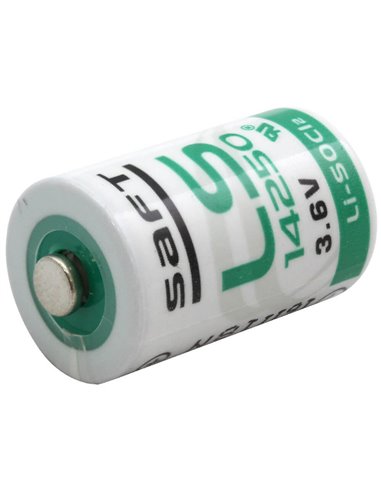

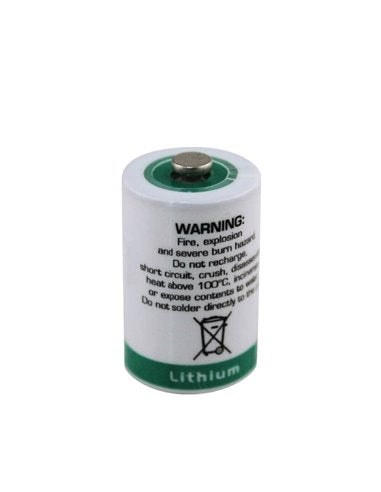

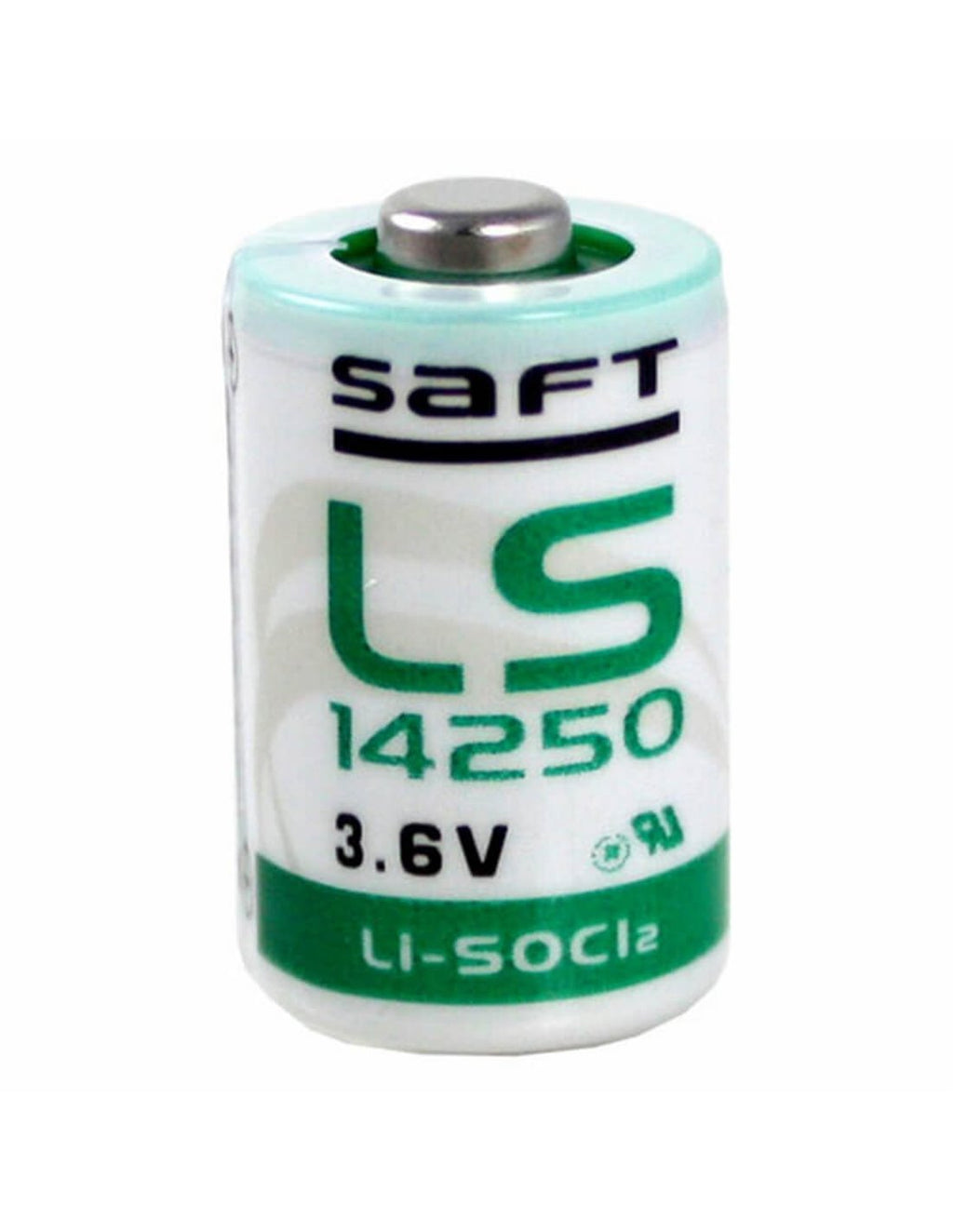

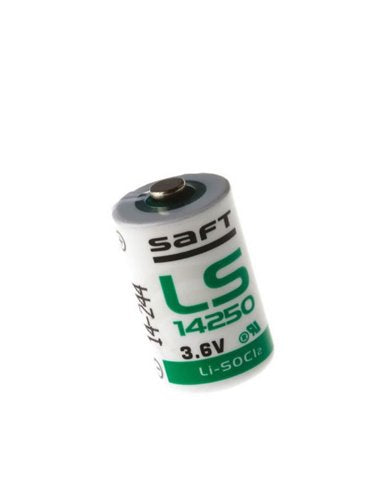

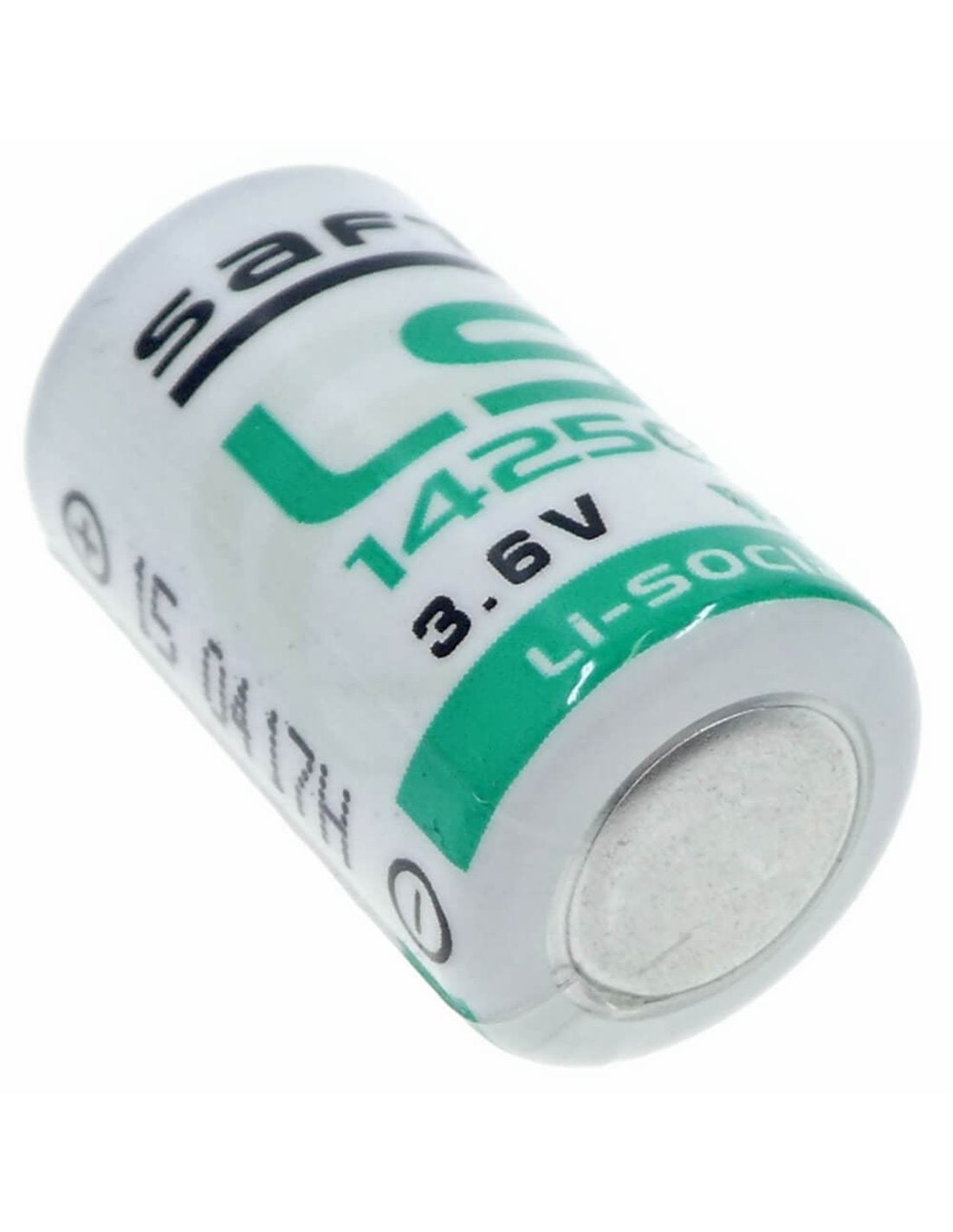

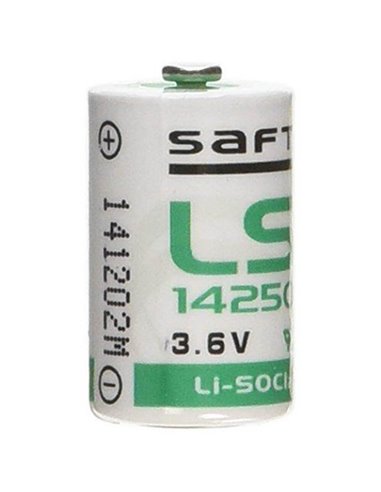

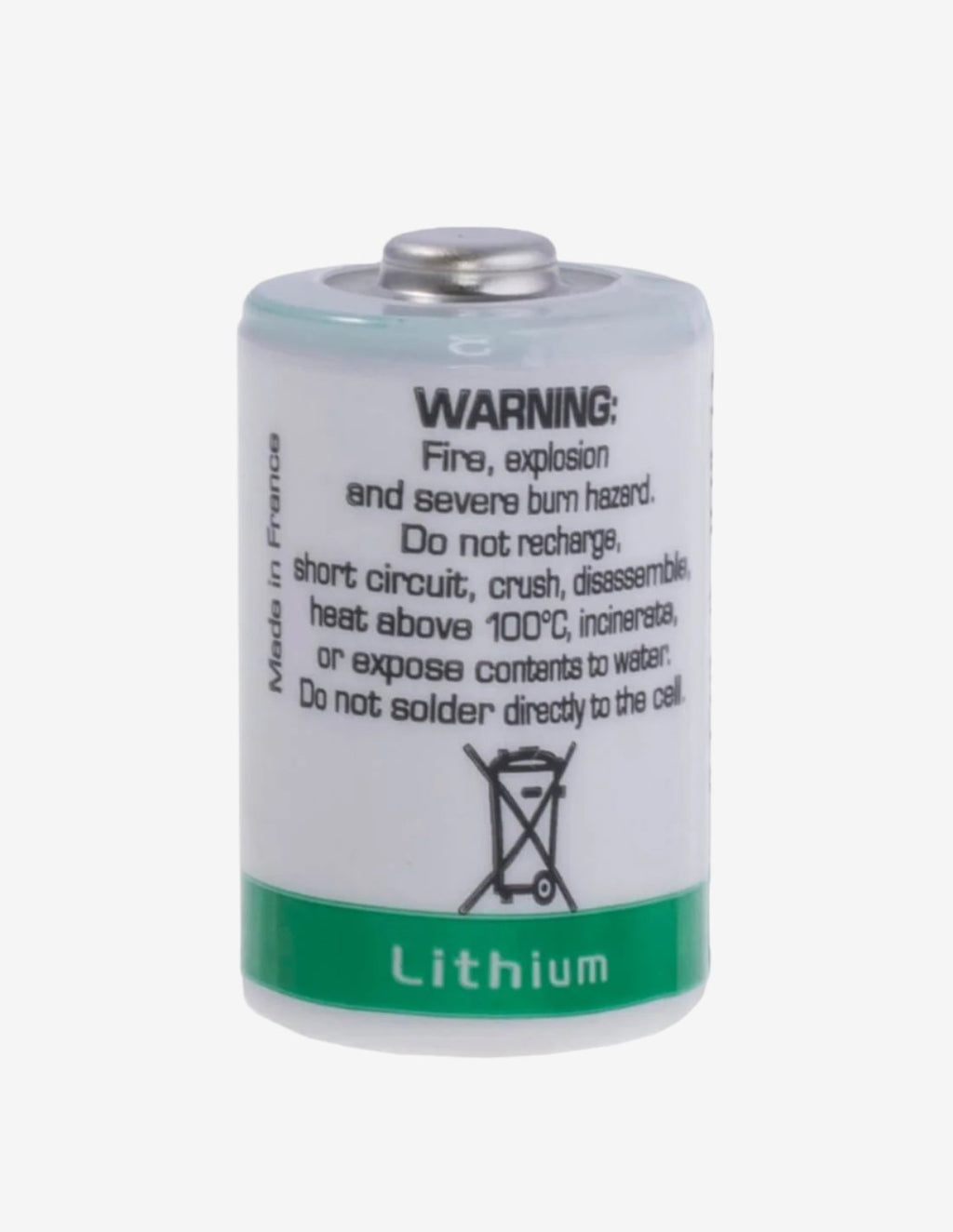

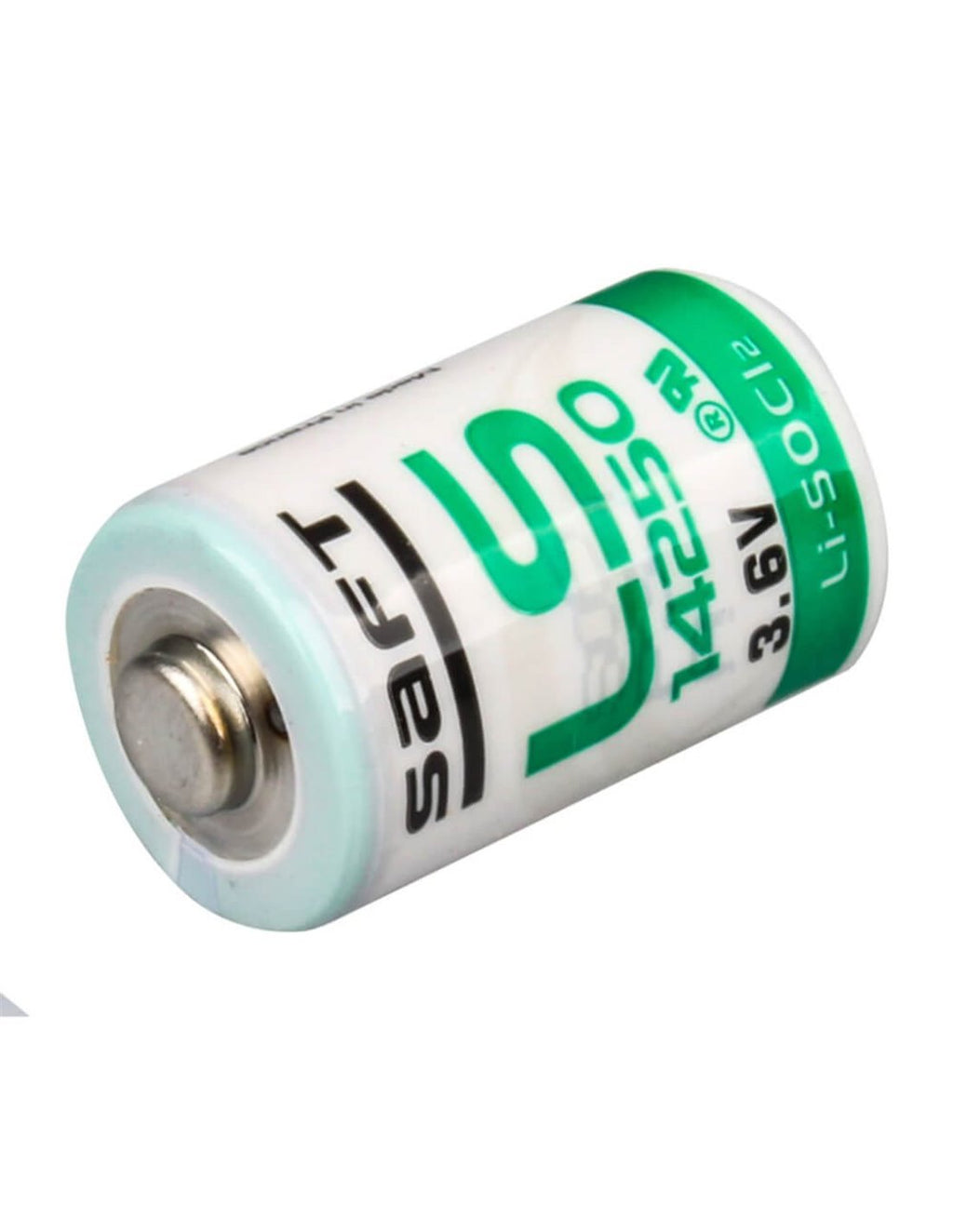

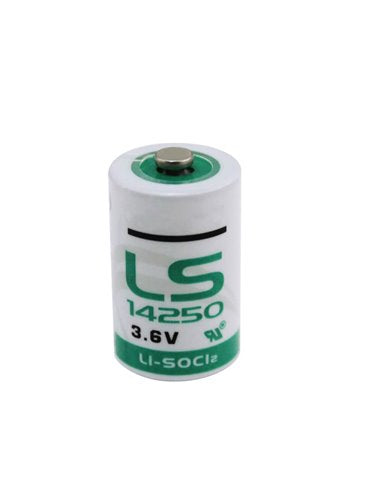

The Saft LS 14250 is a primary lithium-thionyl chloride (Li-SOCl₂) battery, designed for long-term reliable power in demanding applications. As a non-rechargeable battery, it delivers excellent stability, wide operating temperature range, and high energy density.
Technical specifications:
-
Size: 1/2 AA
-
Nominal voltage: 3.6 V (3.67 V open circuit)
-
Capacity: 1.2 Ah (at 1 mA to 2.0 V @ 20°C)
-
Maximum continuous current: up to 35 mA
-
Max pulse current: up to 200 mA (1 sec) / 100 mA (0.1 sec every 2 min)
-
Operating temperature range: -60°C to +85°C
-
Dimensions: Ø14.55 × 25.15 mm
-
Weight: ~8.9 g
-
Lithium content: ~0.3 g
Compatible replacements:
-
XENO Energy: XL-050F (1.2)
-
Tadiran: TL-2150 (0.95), TL-4902 (1.2), TL-5101 (0.95), TL-5151 (0.7), TL-5902 (1.2)
-
Sonnenschein: SL-350 (1.0), SL-750 (0.95)
-
Toshiba: ER3V (1.0), ER4V (1.2)
-
Maxell: ER3S (0.79)
-
Eagle Picher: LTC-9C (0.95)
-
Vitzro: SB-AA02 (1.2), SB-AA02P (1.2)
-
EEMB/GMB: ER14250 (1.1)
